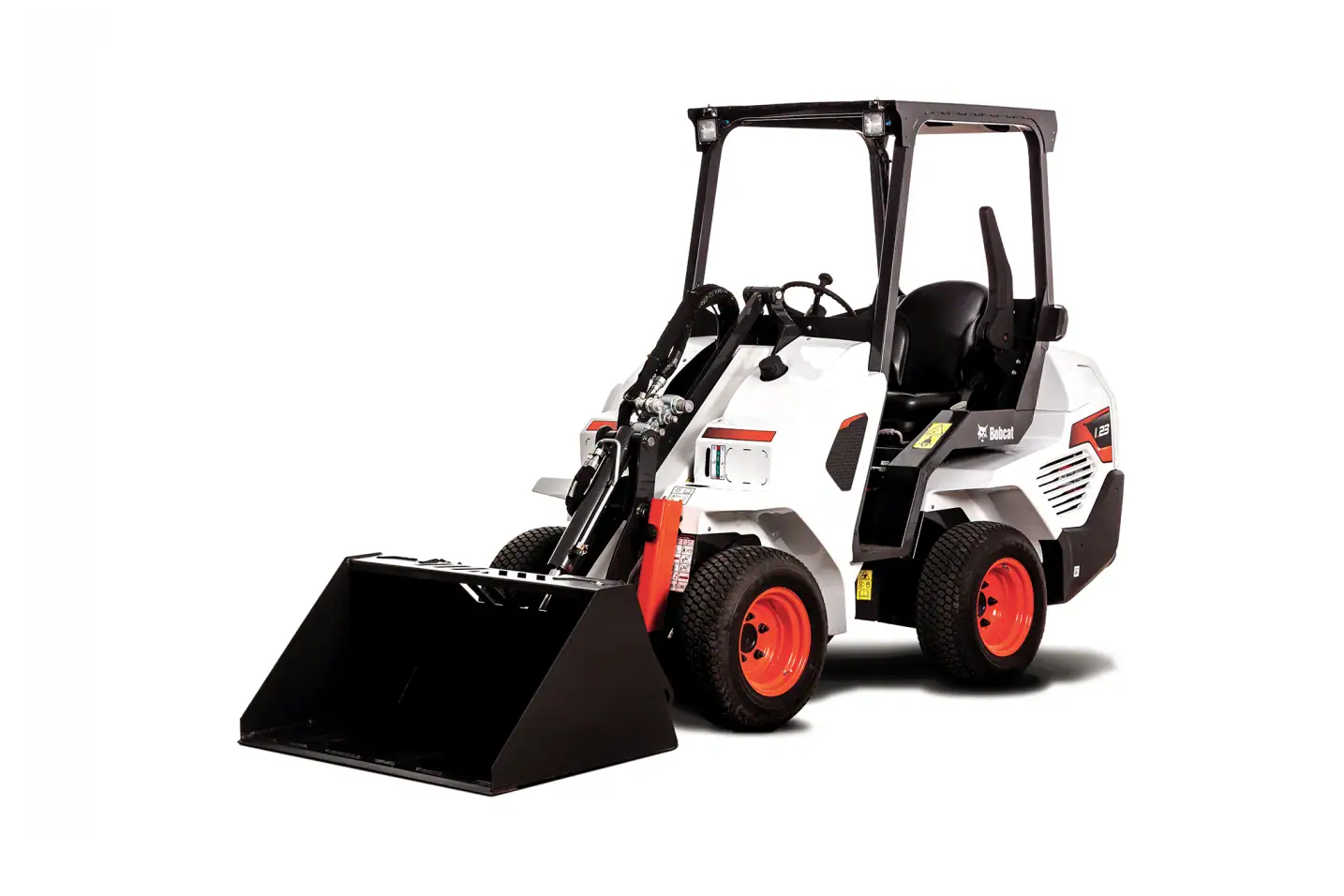

Bobcat L23 Small Articulated Loader

The L23 Bobcat® small articulated loader delivers impressive lifting capability in a compact and turf-friendly package.

24.8 hp

Horsepower

1,395 lb

Operating Capacity

3790 lb

Operating Weight

Small Articulated Loader Financing & Cash Rebates

As low as 0 % for 36 months or up to $1,500 USD in lieu of financing. Offer ends October 31, 2025.

Bobcat L23 Small Articulated Loader Features

Impressive Lifting Capacity

Impressive Lifting Capacity

Bobcat small articulated loaders offer impressive lifting capabilities to improve productivity in tight workspaces. They include a standard integrated counterweight for optimal lift capacity.

Minimal Ground Disturbance

Minimal Ground Disturbance

Small articulated loaders feature an articulation joint for tight turning and a light overall footprint to minimize a tight-turning articulated steering and light overall footprint to minimize cuts or tears in the turf when turning or hauling a load.

Tight Turning Radius

Tight Turning Radius

An articulation joint enables the rear tires to match the path of the front tires when turning, for a highly nimble machine that navigates around obstacles and works well in tight areas.

Comfortable Cab

Comfortable Cab

Cross-ventilation windows and an optional enclosed, heated cab keep operators comfortable in every season.

Bobcat L23 Small Articulated Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Air Conditioning Not Applicable
Adjustable Seat Standard
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Enclosure Optional
Cab Heater Optional
Operating Lights Optional
Rear Window Optional
Lift-Arm Support Standard
Two Speed Travel Not Applicable
Deluxe Instrumentation Not Applicable
Hydraulic Bucket Positioning Standard
Auxiliary Hydraulics Standard
Spark Arrestor Muffler Standard
Bob-Tach Attachment System Standard
Horn Standard
Front and Rear Work Lights Standard
Rotating Flashing Beacon Optional
Turn Signals Optional
Tires-Ply Rating 10
Heavy-Duty Float Tires Optional
Cup Holder Standard
Grab Handles N/A
Horsepower 24.8 hp
Rated Operating Capacity Straight (ISO) 1,395 lb
Rated Operating Capacity Art. (ISO) 1,159 lb
Operating Weight 3790 lb
Auxiliary Std Flow 12.1 gal/min
Width (over tires) 43.2 in
Fuel Tank 9.6 gal
System Relief @ Quick Couplers 2,900 psi
Auxiliary Std Flow 12.1 gal/min
Drive Type Hydrostatic pump driving 4 independent wheel motors

Performance

Rated Operating Capacity Straight (ISO) 1,395 lb
Rated Operating Capacity Art. (ISO) 1,159 lb
ROC with Counterweight Option Straight 1815 lb
ROC with Counterweight Option Art. 1471 lb
Tipping Load Straight 2789 lb
Tipping Load Art. 2317 lb
Operating Weight 3790 lb
Travel Speed 8.2 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 24.8 hp
Turbocharged Engine no

Dimensions

Length 122.4 in
Length without Attachment 93.2 in
Length with Standard Bucket 122.4 in
Width (over tires) 43.2 in
Width (with bucket) 44 in
Height with Operator Cab 78.1 in
Height to Bucket Hinge Pin Ext 85.4 in
Height to Bucket Hinge Pin Ret 85.4 in
Max Reach 16.8 in
Turning Radius Inside 77.2 in
Turning Radius Outside 100.9 in
Wheelbase 47.2 in
Articulation Angle 43°
Dump Angle @ Maximum Height 40°
Ground Clearance 5.5 in
Rollback Angle 32°
Tire Size 23X8.5-12
Wheel Tread 34.4 in
