Skid-Steer Loaders

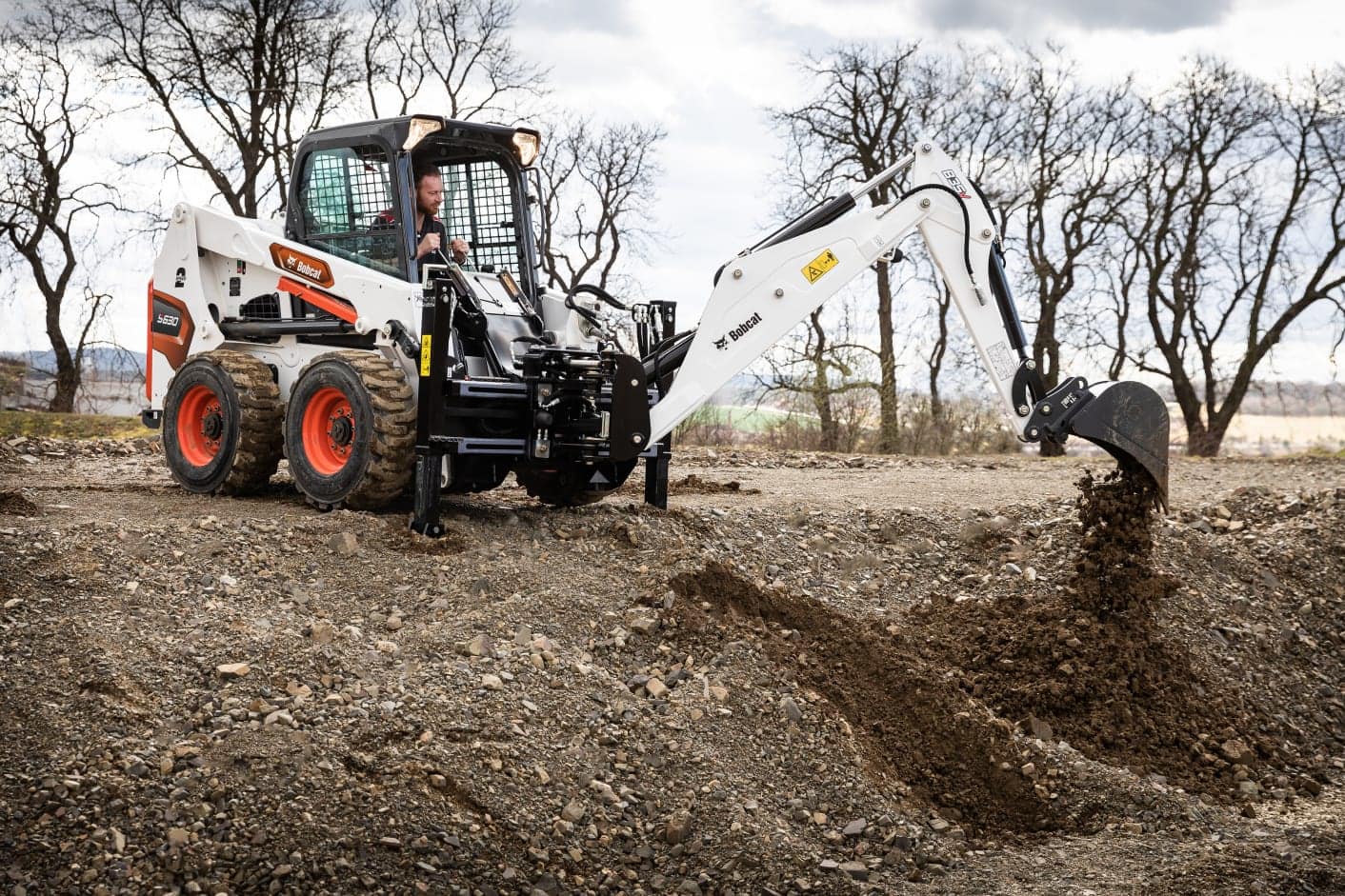

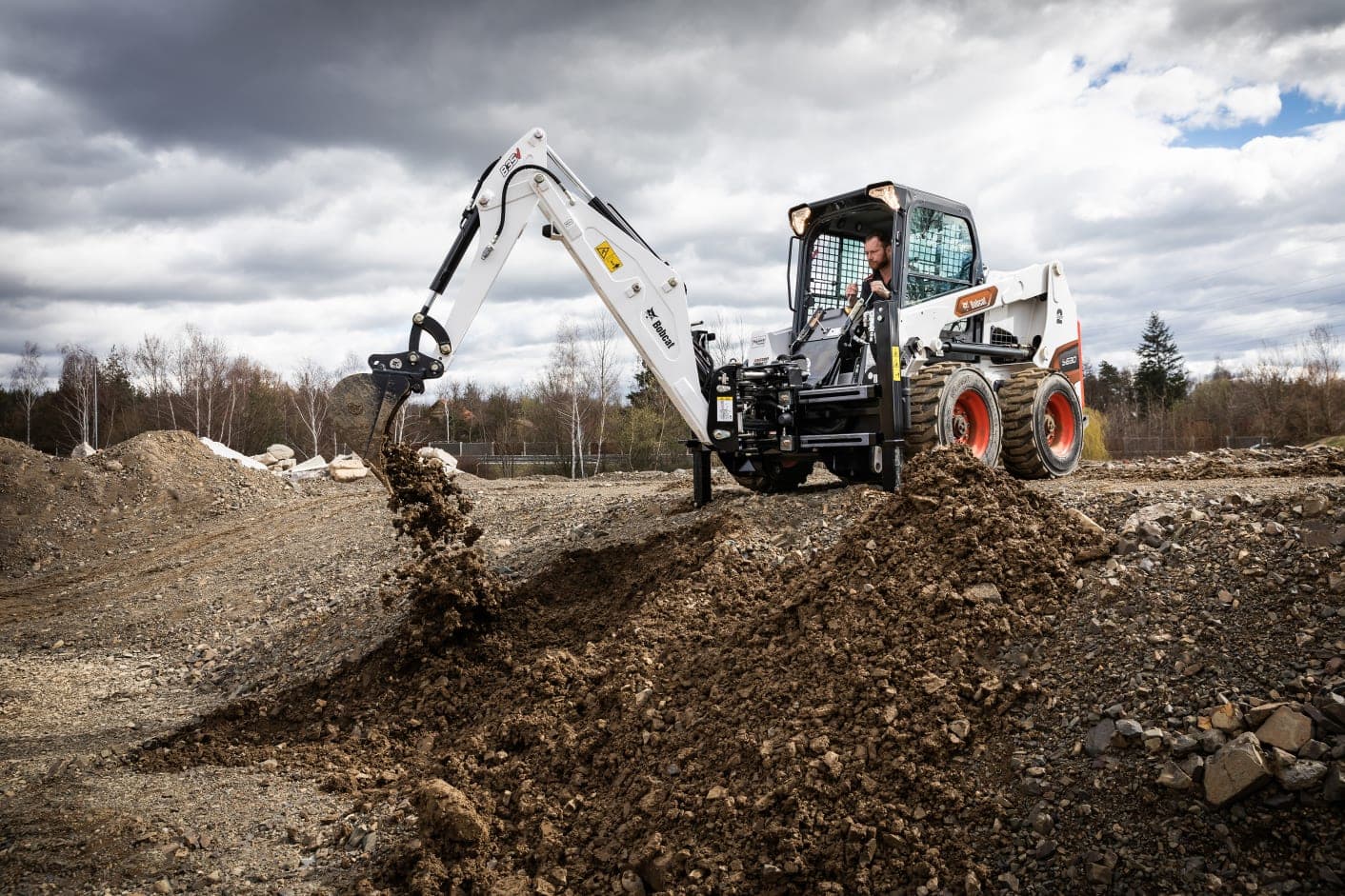

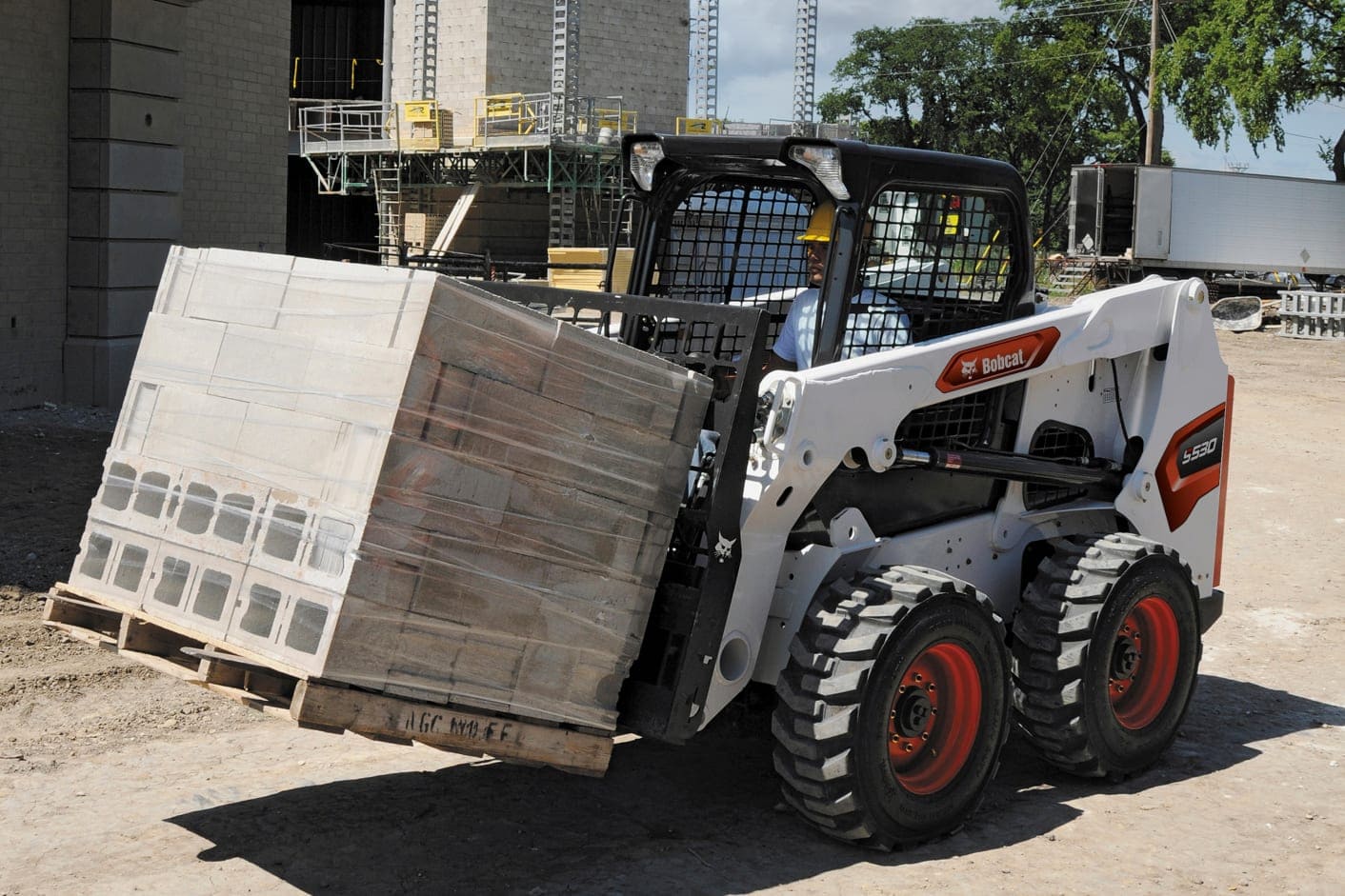

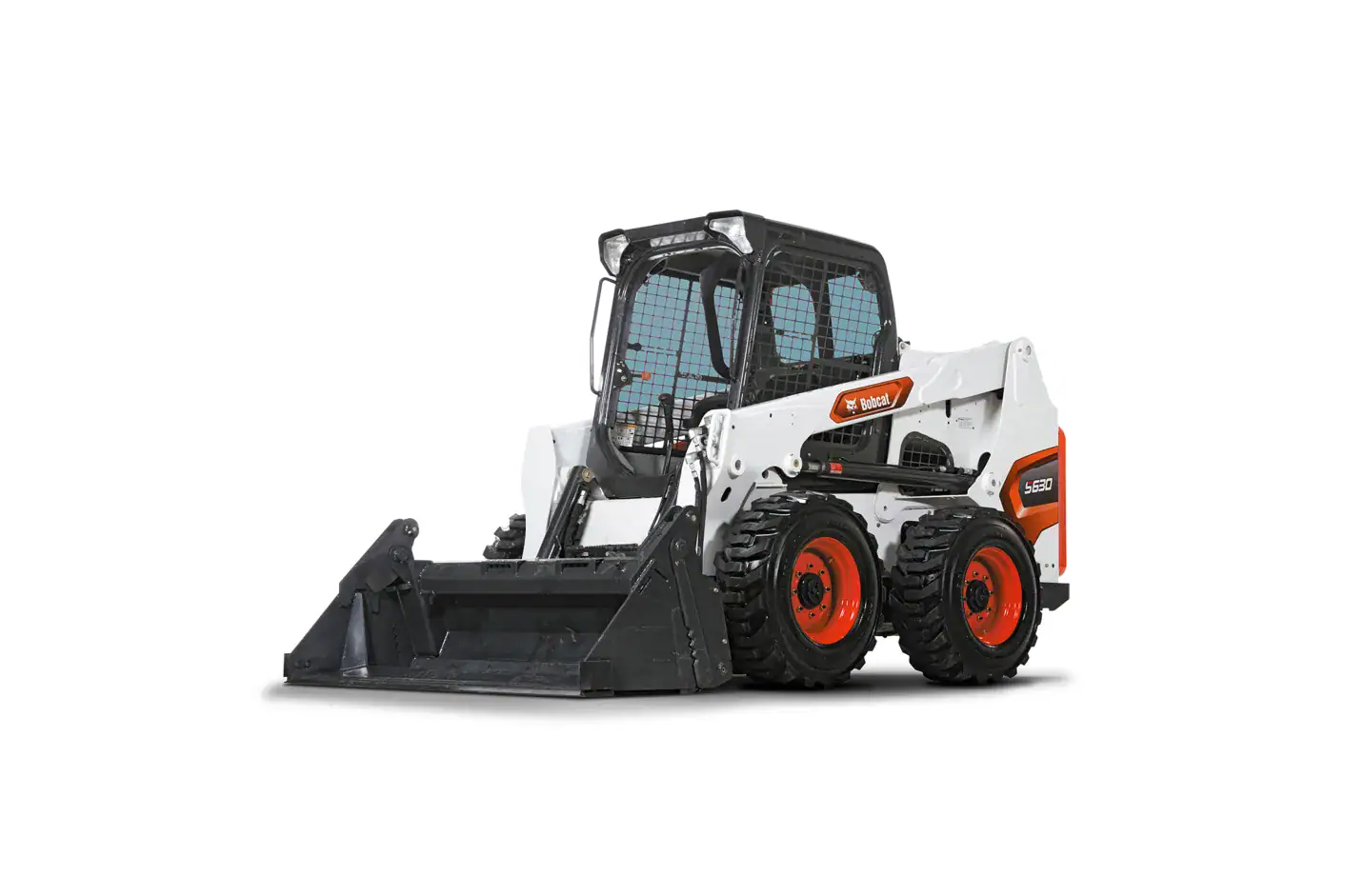

Bobcat S630 Skid-Steer Loader

The Bobcat® S630 is the first radius lift path model in the 600 frame size. It delivers greater forward reach at mid-range heights for dumping over a wall, backfilling or unloading flatbed trucks.

74 hp Horsepower
2,180 lb Operating Capacity
7707 lb Operating Weight

Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.

Call Your Local Bobcat of Atlanta Location For Unit Availability.

Specifications

Bobcat S630 Skid-Steer Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options. **

Horsepower 74 hp
Rated Operating Capacity (ISO) 2,180 lb
Operating Weight 7707 lb
Auxiliary Std Flow 23 gal/min
Joystick Control Optional
Fuel Tank 27.2 gal
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 23 gal/min
Joystick Control Optional
Air Conditioning Optional
Adjustable Seat Standard
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Enclosure Optional
Sound Option Optional
Cab Heater Optional
Operating Lights Standard
Parking Brake Standard
Radio Optional
Rear Window Standard
Top Window Standard
Lift-Arm Support Standard
Seat Belt Standard
Suspension Seat Optional
Two Speed Travel Optional
Deluxe Instrumentation Optional
Engine Shutdown Standard
Hydraulic Bucket Positioning Optional
High Flow Option Optional
Auxiliary Hydraulics Standard
Spark Arrestor Muffler Standard
Bob-Tach Attachment System Standard
Power Bob-Tach Optional
ACS (Switchable Controls) Optional
Ride Control Optional
Rear Hydraulics Optional
Horn Standard
Rated Operating Capacity (ISO) 2,180 lb
Tipping Load 4360 lb
Operating Weight 7707 lb
Travel Speed 7.1 mph
Travel Speed (2-speed option) 12.3 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 74 hp
Turbocharged Engine yes
Length 136.8 in
Length without Attachment 108.4 in
Length with Standard Bucket 136.8 in
Width 72.1 in
Width (with bucket) 74 in
Height with Operator Cab 81.3 in
Height to Bucket Hinge Pin 121 in
Reach @ Maximum Height 21.4 in
Turning Radius 82.9 in
Wheelbase 45.3 in
Why Choose the Bobcat S630 Skid-Steer Loader

Bobcat S630 Skid-Steer Loader Features

Powerful Hydraulics

Bobcat loaders are in a class by themselves. Each component – including the engine, pumps and hydraulic system – is engineered to deliver maximum hydraulic performance so you can work quicker, lift more and outperform your competition.

Increased Lifting Capabilities

R-Series loaders deliver increased lifting capabilities. The cast-steel lift arm sections are stronger to ensure optimal performance so you can handle more challenging jobs with greater confidence and ease.

Bobcat Engine

R-Series loaders feature a Bobcat engine that delivers the performance you need while reducing and simplifying routine maintenance. With the innovative new fuel system, low fuel levels are more forgiving for busy operators.

Effective Weight Balance

Bobcat skid-steer loaders offer effective turning and skidding, reduced fuel consumption and power requirements, increased drive train and tire life, and less wear and tear compared to "flat-footed" machines sold by other manufacturers.

Cooling System

The redesigned cooling system on R-Series loaders delivers optimal operation and maximum uptime. The system includes an optional reversible fan, heavy-duty steel louvered tailgate, larger hydraulic hoses and tubelines, increased fan size and high capacity radiator.

Premium Cab

Bobcat loaders offer a variety of comfort features including roomy cabs, heated air-ride seats, optional automatic heat and air conditioning, ergonomic controls, innovative instrumentation and more to keep you productive.

Touch Display

The most advanced in-cab display, optional on R-Series loaders, delivers detailed machine information to make operation efficient and productive. An integrated radio offers Bluetooth™ connectivity. It includes a durable, waterproof touchscreen.

Bob-Tach Attachment System

Change attachments quickly using the standard Bob-Tach® mounting system included with every loader. R-Series models include a stronger connection point and less debris buildup. Or upgrade to the optional Power Bob-Tach system for swapping non-hydraulic attachments without leaving your seat.

Selectable Joystick Control

No other joystick in the industry comes close to delivering the level of customization and control you'll find with SJC. It gives you all the capabilities of standard controls, along with additional functions that propel your productivity with better control of your loader and attachments.
