Mini Track Loaders

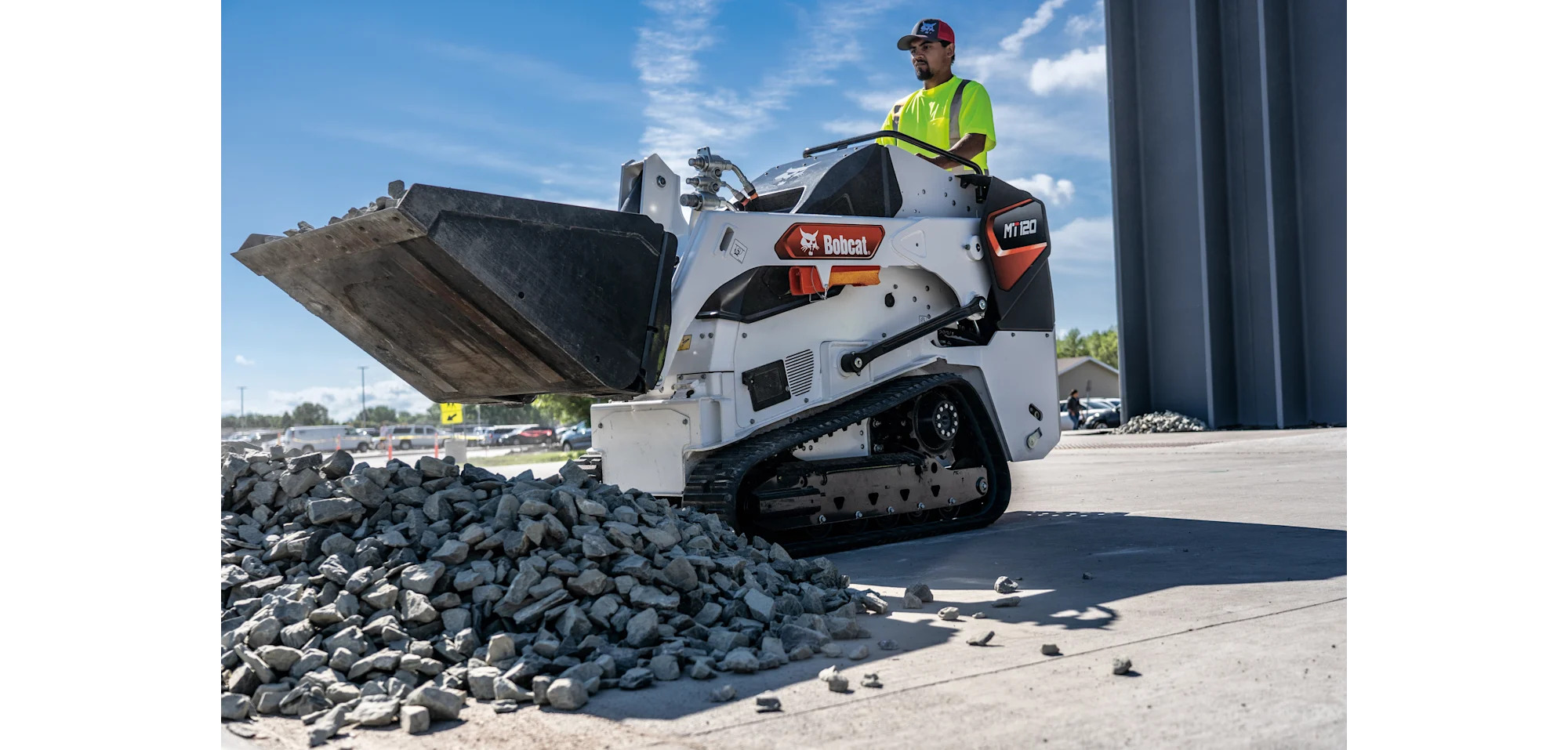

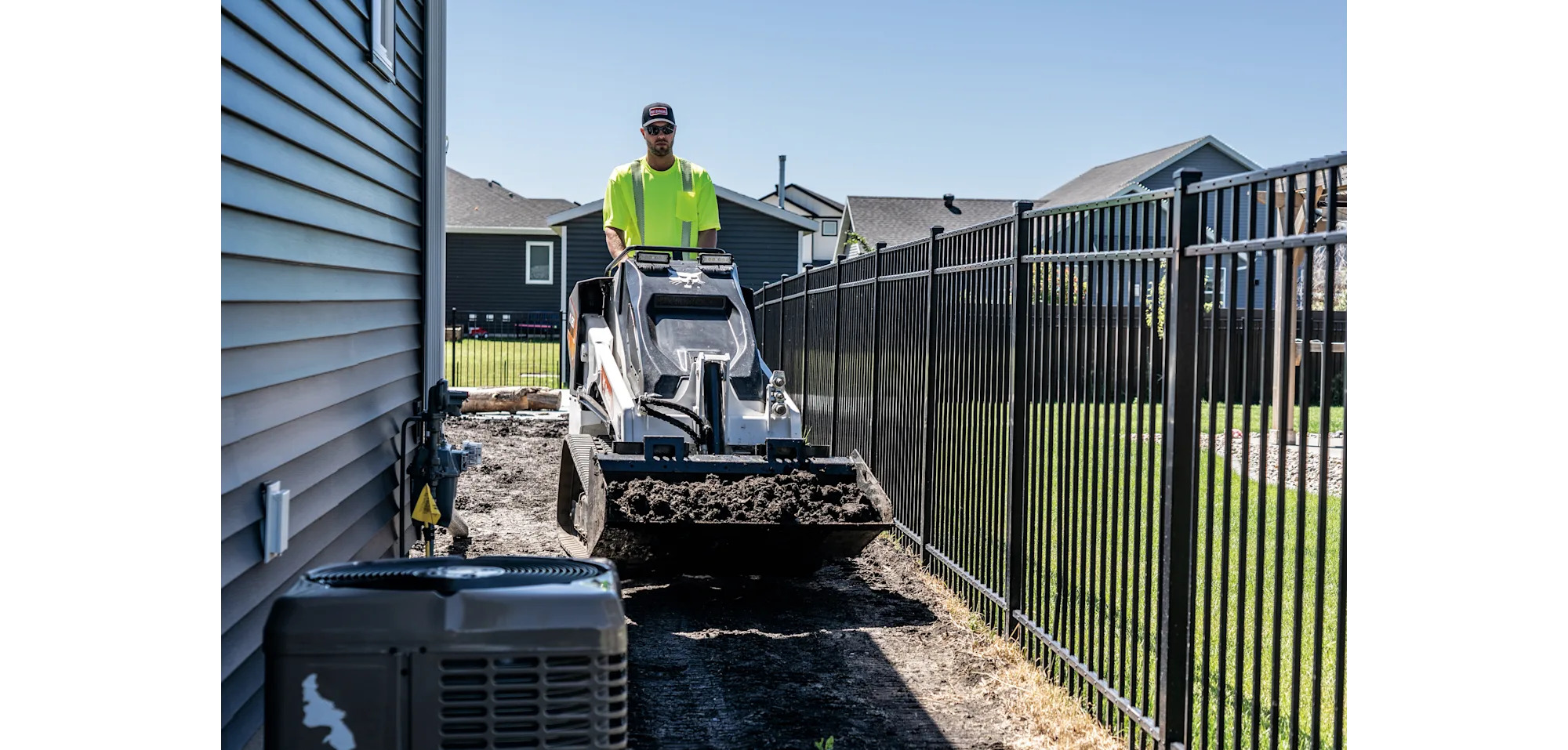

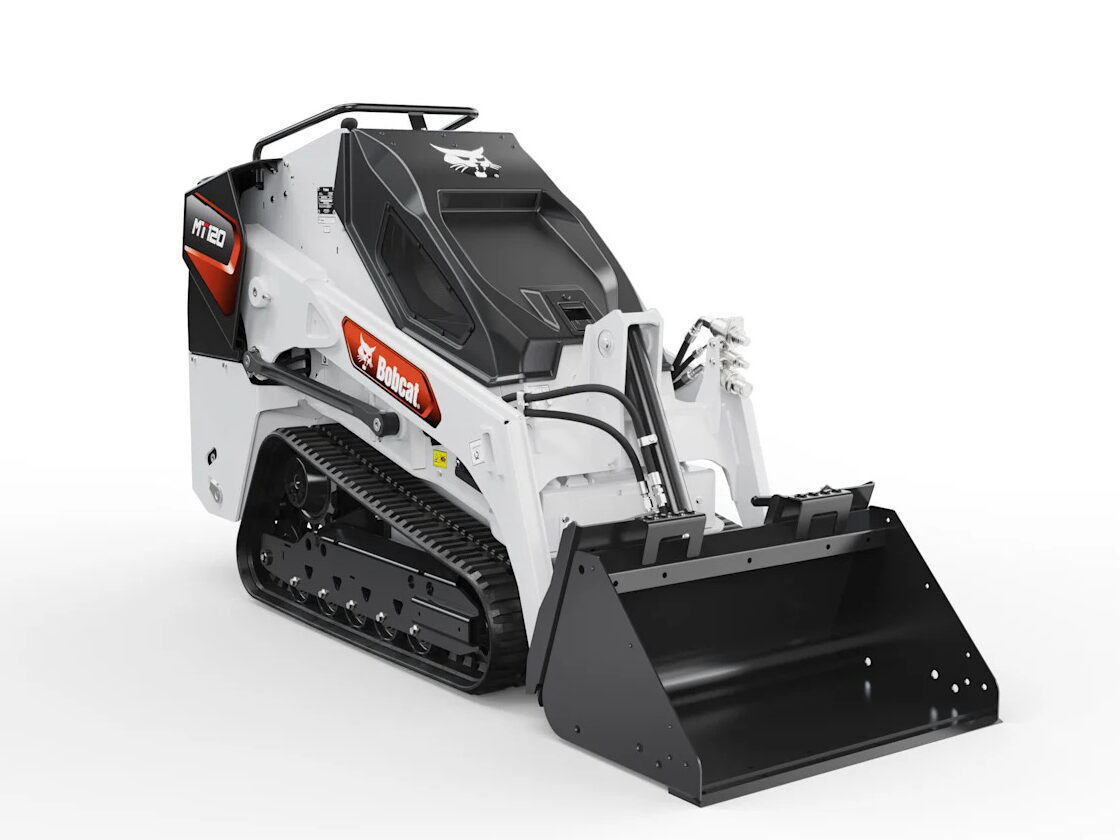

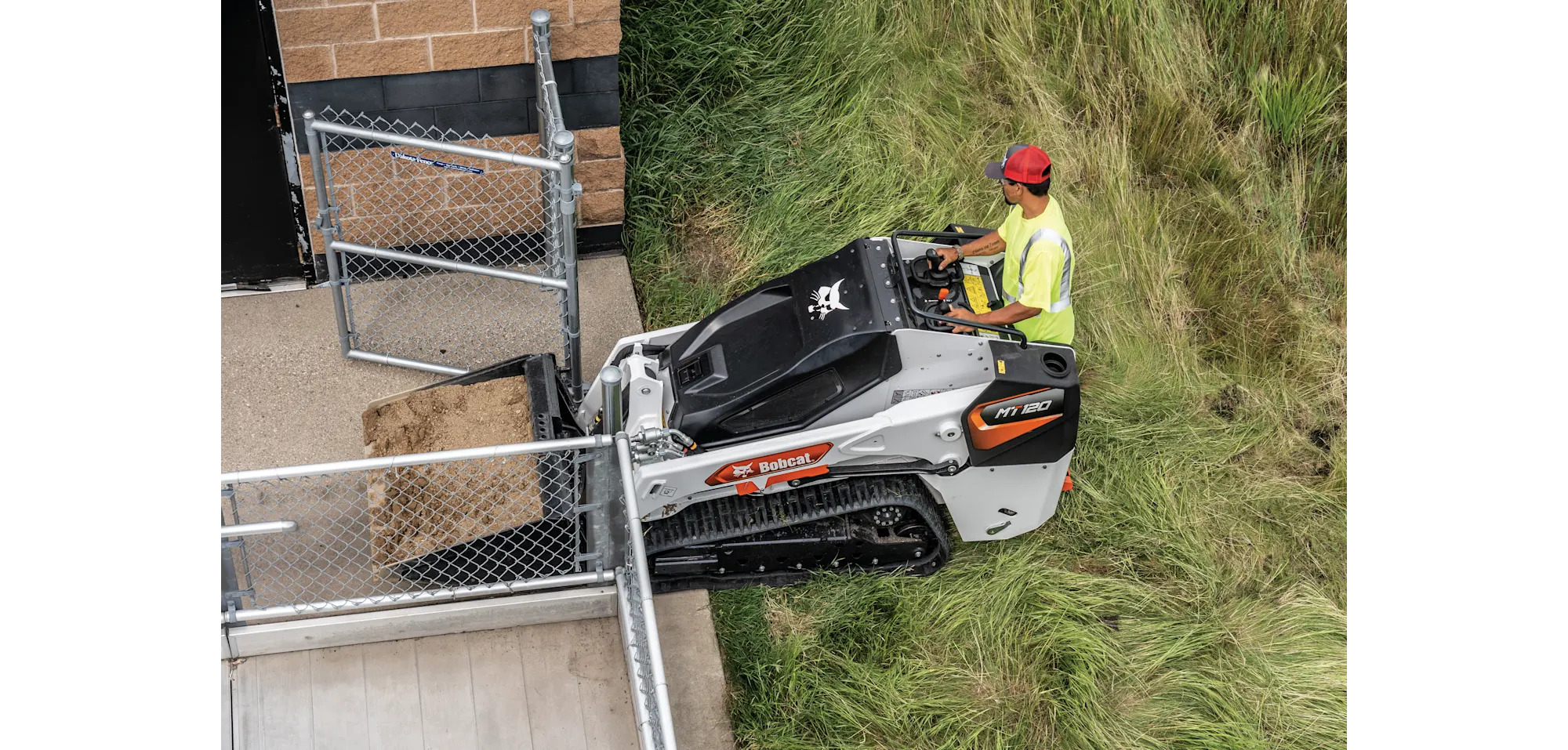

Bobcat MT120 Mini Track Loader

The Bobcat MT120 mini track loader leads its class in lift height and reach, delivering heavy-lifting performance and high value with low overall cost of ownership.

  • 1,200-pound rated operating capacity
  • Best-in-class lift height and reach at 88.2 inches
  • Easy-to-operate pilot controls
  • Low maintenance design with reduced daily upkeep
  • Premium features at a highly competitive price

Bobcat MT120 lifts more and lifts higher with 1,200-pound lift capacity, plus best-in-class lift height and reach. At just 36 inches wide with standard tracks, the MT120 delivers big performance in tight spaces. Smooth, precise pilot controls and premium ride-on platform make every job easier.

With low maintenance and best-in-class service scores, the Bobcat MT120 price reflects long-term low ownership costs. Fast travel speeds up to 4.7 mph in forward and reverse.

24.5 hp Horsepower
1,200 lb Operating Capacity
3720 lb Operating Weight

Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.

Call Your Local Bobcat of Atlanta Location For Unit Availability.

Specifications

Bobcat MT120 Mini Track Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options. **

Ground Pressure (with standard tracks) 4.3 psi (29.0 kPa)
Ground Pressure (with wide tracks) 3.9 psi (27.0 kPa)
Grease Cylinder Track Tensioning Std
Steering and Drive ISO Joystick
Lift and Tilt ISO Joystick
Transmission Hydrostatic Track Drive System
Attachment Fingertip Auxiliary Hydraulics Control
Rated Operating Capacity (ISO) 1200 lb.
Lift Arm Path Vertical
Tipping Load 3468 lb.
Hydraulic Pump Capacity 11.8 gpm
Travel Speed (forward) 4.7 mph
Travel Speed (reverse) 4.7 mph
Operating Weight (with bucket) 3720 lb.
Emissions Tier (EPA) Tier 4
Engine Cooling Diesel/Liquid
Cylinders 3
HP/Displacement 24.5 hp (18.2 kW)/75.2 cu. in. (1.2 L)
Fuel Tank Capacity 8.1 gal
Length 86.8 in
Width (with bucket and standard tracks) 36.0 in.
Width (with bucket and wide tracks) 44.0 in.
Height 57.6 in.
Height to Bucket Hinge Pin 88.2 in.
Reach @ Maximum Height 22.2 in.
Track Width – Standard 9.1 in.
Track Width – Optional 11.0 in.
Why Choose the Bobcat MT120 Mini Track Loader

Bobcat MT120 Mini Track Loader Features

Easy Service Access

Focus on your work with quick, simple maintenance features like tool-free hood access and easy checks for key maintenance items.

Sealed Rollers

With permanently sealed rollers, there are no daily maintenance tasks to slow you down, eliminating the need for greasing while a sealed oil bath continuously lubricates the bearings.

Minimal Ground Disturbance

Travel confidently over sensitive ground and worry less about repairs, thanks to low ground pressure that protects turf and finished surfaces while reducing the cost of ground repairs.

Compact Size

The Mini Track Loader delivers concentrated power and excellent maneuverability in tight spaces, measuring just 35.6 inches wide with standard tracks or 41.1 inches wide with wide tracks for added stability.

Replace Manual Labor

With a footprint not much bigger than a wheelbarrow, Bobcat mini track loaders let you swap hand tools for horsepower, offering a 1,000-pound rated operating capacity, an 80.9-inch lift height, and fast cycle times.

Simple Travel Operation

With ergonomic, intuitive ISO joystick controls, Bobcat mini track loaders provide easy, comfortable operation and precise machine movement, making them a great fit for operators of any experience level.

Integrated Ride-On Platform

The integrated ride-on platform elevates you to the ideal vantage point, giving you a wide view to the sides and clear visibility of your attachment.

Optimized Roller Spacing

The track system’s roller spacing helps dampen rough terrain, delivering enhanced travel and a more comfortable ride while tackling tough jobs.

Storage and Cup Holder

Keep your jobsite essentials close at hand with convenient storage for personal items and a spot to keep your drink within reach.
