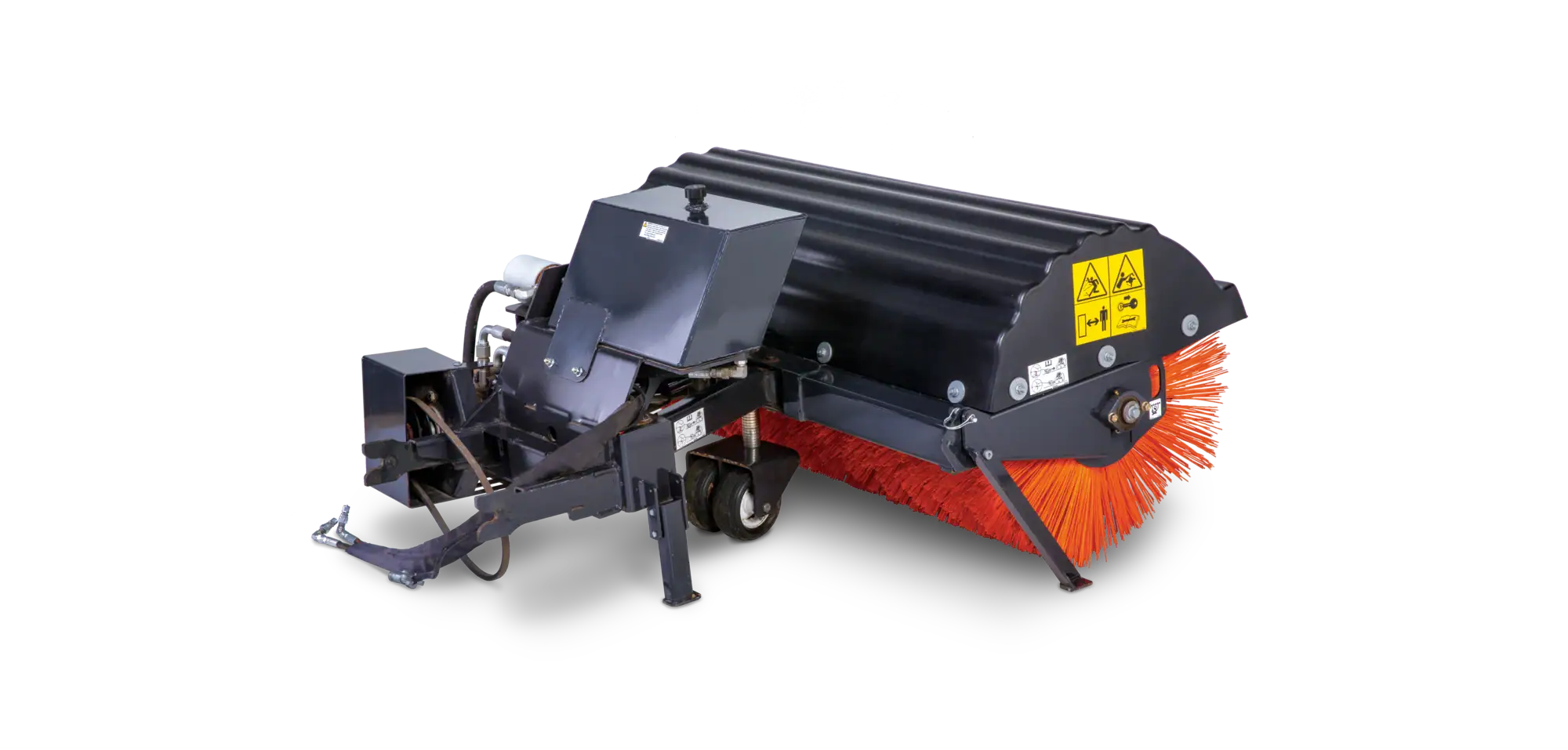

Bobcat Angle Broom Attachment
Efficiently sweep and clean with the hydraulically driven angle broom attachment
Heavy-duty broom bristles create a cleaner path and sweep more snow or debris in one pass
Reverse bristle rotation available on the 68-inch and 84-inch angle brooms for enhanced cleaning along curbs, corners and around obstacles
Works With These Bobcat Machines
Compact Track Loaders
Compact Wheel Loaders
Mini Track Loaders
Skid-Steer Loaders
Small Articulated Loaders
Telehandlers
Toolcat Utility Work Machines
How the Bobcat Angle Broom Attachment Works
The angle broom is driven by a hydraulic motor that rotates the broom at a continuous speed sweeping any dirt, snow, or debris away from the machine. The broom can also be angled in either direction to a maximum angle of 25 degrees, allowing the operator to sweep material to the side with ease. Reverse the rotation of the broom to easily sweep tough to access spots.
The broom bristles have a waved design, delivering improved cleaning ability. These bristles create a cleaner path and can sweep more snow or debris in one pass. The angle broom attachment is compact, maneuverable, and easy to operate. Surfaces of all sizes can be cleaned effortlessly and efficiently saving valuable time.
Reverse bristle rotation is available on the 68” and 84” angle brooms making it more efficient to sweep leaves, snow, and debris away from corners, curbs, buildings, and obstacles. Slow operating speeds prevent damaging the cab or machine while the broom is operating in reverse rotation. Standard orange heavy duty bristles improve bristle life and provide better visibility for the operator.
Bobcat Angle Broom Attachment Specs
** Listed specs are for reference. Actual specs may vary by model and configuration. **
Bobcat Angle Broom Attachment Features
Self-Centering Hydraulic Angling
This system keeps the attachment centered on the machine and avoiding the risk of the attachment becoming offset. The unit stays centered in front of the machine to help with keeping the machine on the sidewalk, reducing damage to surfaces outside of the desired cleaning area.
Compact Design
The angle broom attachment is compact and highly maneuverable, giving the operator maximum efficiency.
Easy Maintenance
The quick-change rotor design makes bristle replacement quick and easy. By simply removing two bolts, the entire rotor is released.
Angle Control
The brooms feature electric-over-hydraulic control for angle adjustment up to 25 degrees.
Fingertip Controls
Precise attachment control helps to finish the job quickly and efficiently, without having to leave the comfort of the cab. This applies to larger brooms with electric-over-hydraulic angle control.
Multi-Directional Sweeping
Remove debris from curbs, gutters, corners, and obstacles by reversing the direction of the bristles (only available on 68-inch and 84-inch brooms).
Flush Sweeping
The angle broom allows for flush sweeping along a curb or wall for improved cleaning.
High-Torque Motor
The high-torque motor allows for maximum power for more efficient sweeping even when engaging heavier debris.
Storage Stand
Larger brooms include storage stands to provide maximum uptime protection by eliminating bristle distortion when the broom is not in use. On 68-inch and 84-inch angle broom attachments, the stands use a lever to swing the legs up or down. In the down position the legs are closer to the bristles to make attaching to the machine easier.
Patented Spring Design
The patented spring design supports optimum down pressure, extended bristle life and excellent cleaning.
Heavy-Duty Bristles
The replaceable, polypropylene wafer bristles provide excellent life and cleaning ability.
