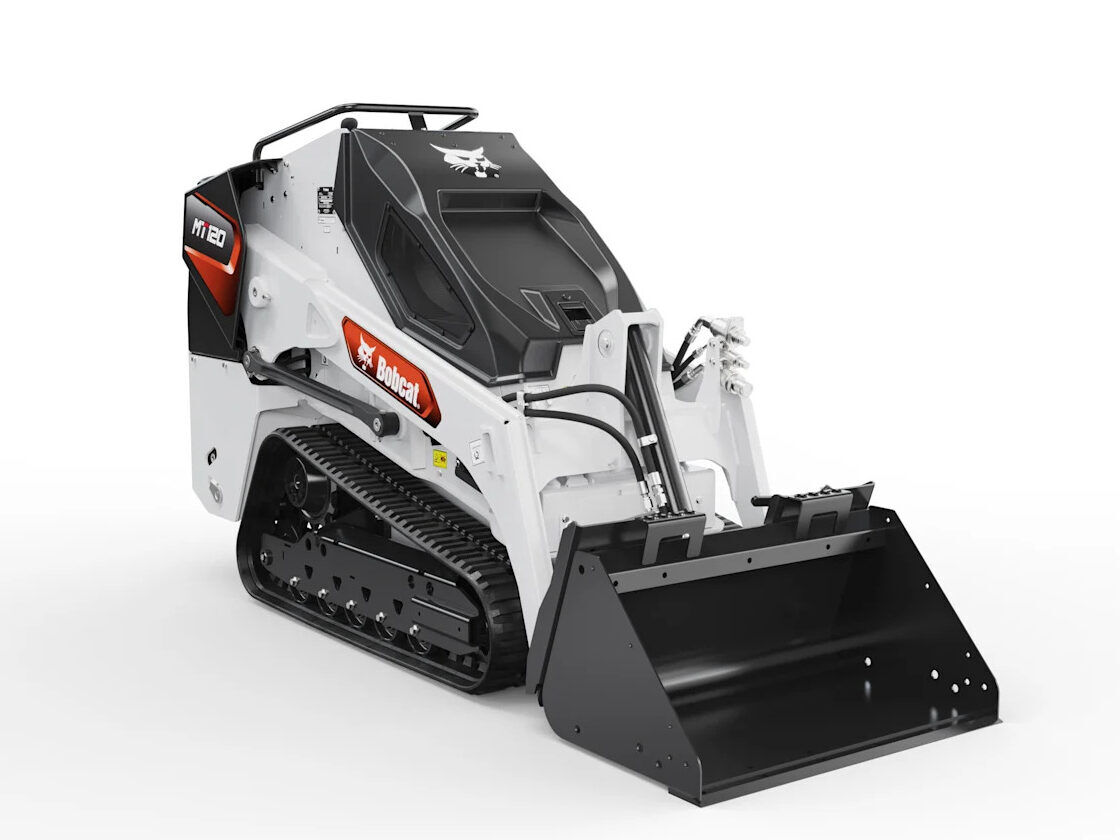

Bobcat MT120 Mini Track Loader

The Bobcat MT120 mini track loader leads its class in lift height and reach, delivering heavy-lifting performance and high value with low overall cost of ownership.

  • 1,200-pound rated operating capacity
  • Best-in-class lift height and reach at 88.2 inches
  • Easy-to-operate pilot controls
  • Low maintenance design with reduced daily upkeep
  • Premium features at a highly competitive price

Bobcat MT120 lifts more and lifts higher with 1,200-pound lift capacity, plus best-in-class lift height and reach. At just 36 inches wide with standard tracks, the MT120 delivers big performance in tight spaces. Smooth, precise pilot controls and premium ride-on platform make every job easier.

With low maintenance and best-in-class service scores, the Bobcat MT120 price reflects long-term low ownership costs. Fast travel speeds up to 4.7 mph in forward and reverse.

24.5 hp

Horsepower

1,200 lb

Operating Capacity

3720 lb

Operating Weight

Mini Track Loader Financing & Cash Rebates

As low as 0% for 36 months* or rebates up to $800 USD* in lieu of financing.

Bobcat MT120 Mini Track Loader Features

Superior Performance

Superior Performance

Get big machine performance in a small package. Powered by a Tier 4 diesel engine and efficient hydraulic system, mini track loaders deliver fast cycle times, strong breakout forces and excellent pushing ability.

Attachment Versatility

Attachment Versatility

With the Common Industry Interface, you can quickly connect attachments – including buckets, pallet forks, augers, trenchers, stump grinders and sweepers – to make quick work of multiple jobs that used to take much longer by hand.

Compact Size

Compact Size

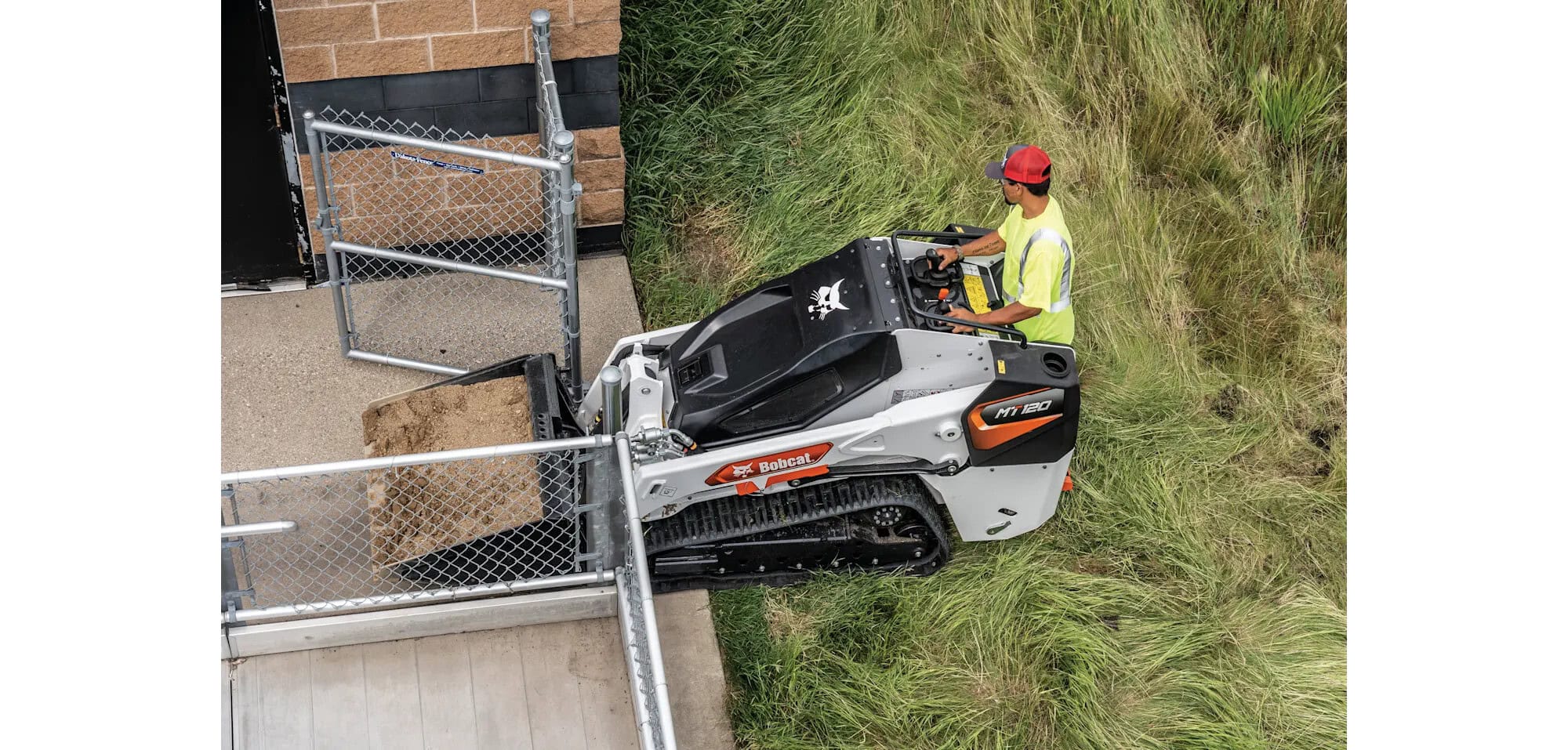

Its smaller size – only 36 inches wide when paired with a bucket – allows it to squeeze through doorways and fence gates or do work indoors. Plus, it’s easy to load and transport on a trailer.

Minimal Ground Disturbance

Minimal Ground Disturbance

The high-flotation tracks move across wet and muddy ground conditions, reduce ground pressure and minimize damage to lawns and other established surfaces. Choose non-marking tracks to prevent marks on driveways and sidewalks.

Simple Operation

Simple Operation

ISO joystick controls make it simple to operate and maneuver the mini track loader - especially for less experienced equipment operators, renters and seasonal help.

Bobcat MT120 Mini Track Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Ground Pressure (with standard tracks) 4.3 psi (29.0 kPa)
Ground Pressure (with wide tracks) 3.9 psi (27.0 kPa)
Grease Cylinder Track Tensioning Std
Steering and Drive ISO Joystick
Lift and Tilt ISO Joystick
Transmission Hydrostatic Track Drive System
Attachment Fingertip Auxiliary Hydraulics Control

Performance

Rated Operating Capacity (ISO) 1200 lb.
Lift Arm Path Vertical
Tipping Load 3468 lb.
Hydraulic Pump Capacity 11.8 gpm
Travel Speed (forward) 4.7 mph
Travel Speed (reverse) 4.7 mph
Operating Weight (with bucket) 3720 lb.
Emissions Tier (EPA) Tier 4
Engine Cooling Diesel/Liquid
Cylinders 3
HP/Displacement 24.5 hp (18.2 kW)/75.2 cu. in. (1.2 L)
Fuel Tank Capacity 8.1 gal

Dimensions

Length 86.8 in
Width (with bucket and standard tracks) 36.0 in.
Width (with bucket and wide tracks) 44.0 in.
Height 57.6 in.
Height to Bucket Hinge Pin 88.2 in.
Reach @ Maximum Height 22.2 in.
Track Width – Standard 9.1 in.
Track Width – Optional 11.0 in.
