Swipe over for quote & more details

Starting At $106,225

0% for 36 Months*$3,062/MO

*With 0% Down and Approved Credit.

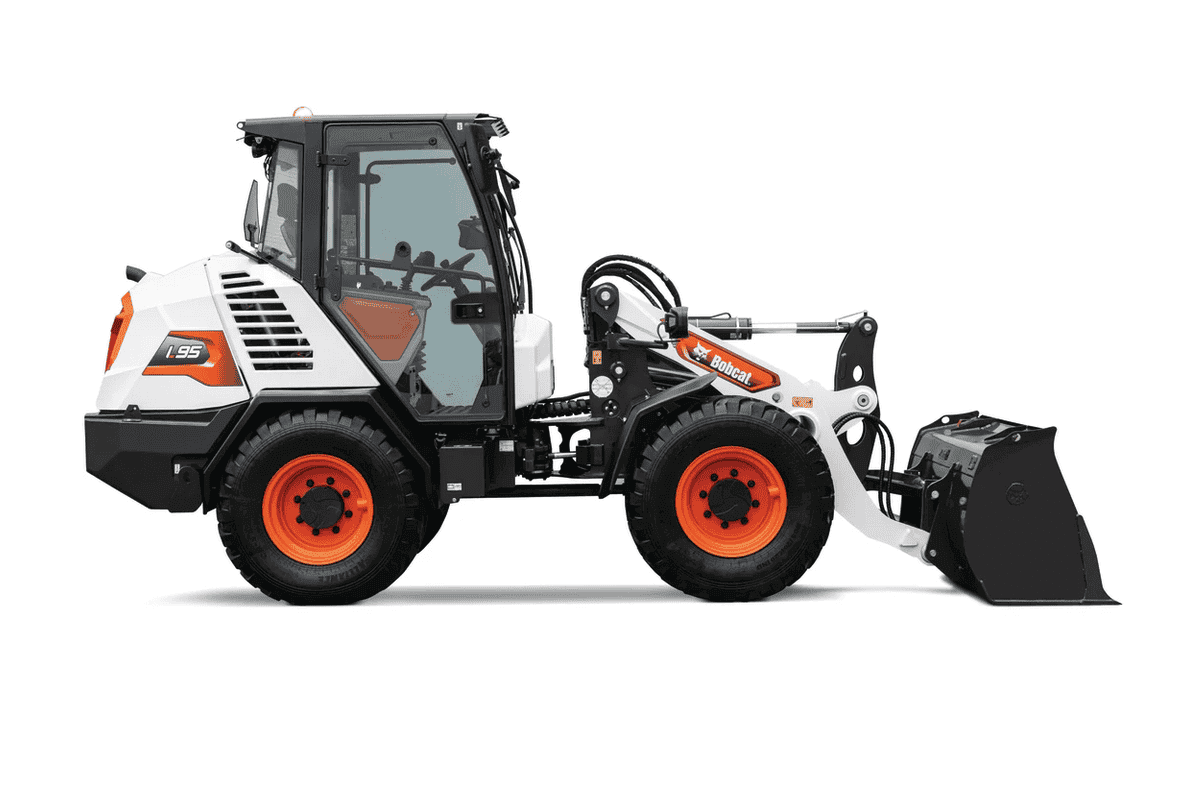

Bobcat L95 Compact Wheel Loader

74 hp

Horsepower

4,860 lb

Operating Capacity

11993 lb

Operating Weight

Bobcat L95 Compact Wheel Loader

Let's Get Started

"*" indicates required fields

Hidden
Newsletter Signup
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
This field is for validation purposes and should be left unchanged.

Bobcat L95 Compact Wheel Loader Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Horsepower 74 hp
Rated Operating Capacity with Bucket (Straight) 3,981 lb
Rated Operating Capacity with Bucket (Articulated) 3,335 lb
Rated Operating Capacity with Forks (Straight) 4,860 lb
Rated Operating Capacity with Forks (Articulated) 4,127 lb
Bucket Capacities 28.6 Cubic Feet / 0.81 Cubic Meters
Operating Weight 11993 lb
Travel Speed - Low 5.3 mph
Travel Speed - High 24.3 mph
Auxiliary High Flow 27.3 gal/min
Pump Capacity 19.9 gal/min
Width (over tires) 70.9 in

Performance

Rated Operating Capacity with Bucket (Straight) 3,981 lb
Rated Operating Capacity with Bucket (Articulated) 3,335 lb
Rated Operating Capacity with Forks (Straight) 4,860 lb
Rated Operating Capacity with Forks (Articulated) 4,127 lb
Tipping Capacity with Bucket (Straight) 7,962 lb
Tipping Capacity with Bucket (Articulated) 6,670 lb
Bucket Capacities 28.6 Cubic Feet / 0.81 Cubic Meters
Operating Weight 11993 lb
Travel Speed - Low 5.3 mph
Travel Speed - High 24.3 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 74 hp
Turbocharged Engine yes

Dimensions

Length without Attachment 192.4 in
Length with Standard Bucket 219.3 in
Width (over tires) 70.9 in
Width (with bucket) 74.8 in
Inside Turning Radius w Bucket 1986 mm
Turning Radius Outside 150.7 in
Outside Turning Radius w Forks 4591 mm
Wheelbase 82.7 in
Articulation Angle 40°
Oscillation Angle
Dump Angle @ Maximum Height 45°
Ground Clearance 13.3 in
Height to Bucket Hinge Pin 10.74 ft
Rollback Angle 49°
Tire Size 405/70/R20
Wheel Tread 54.8 in
Height with Operator Cab 99.3 in

Bobcat L95 Compact Wheel Loader Features

Impressive Lifting Capabilities

Impressive Lifting Capabilities

Standard bucket capacities of up to 1-cubic yard make fast work of tough material handling in landscaping, construction, agriculture and other industry applications.

Tight Turning Radius

Tight Turning Radius

The compact wheel loader’s articulated steering delivers nimble performance and high maneuverability through its articulation joint, allowing for easy obstacle navigation and efficient work in jobsites where space is limited.

2-Speed Control

2-Speed Control

With two speed ranges, operators can adapt the performance of the Bobcat compact wheel loader to whatever the job requires.

Spacious, Pressurized Cab

Spacious, Pressurized Cab

The roomy, comfortable, ROPS/FOPS Level II certified cab is engineered for all-day operation with low noise levels, easy-to-reach, intuitive controls and a comfortable seat with an adjustable, seat-mounted joystick. The tall, wide windows provide an optimal glass-surface area for high visibility and the cab’s pressurized environment repels dust and improves the efficiency of heat and air conditioning for comfortable operation on even the longest days.

Bobcat Engine

Bobcat Engine

The Bobcat® Tier 4, turbo charged engine delivers powerful, high-torque performance and excellent efficiency. It achieves emissions compliance without the use of a diesel particulate filter or selective catalyst reduction. This means fewer components for easier maintenance, and no downtime for regeneration. Operators will also appreciate the engine’s reliable cold weather starting and a variety of features that make maintenance and service more convenient.

Multi-Carrier Versatility

Multi-Carrier Versatility

Bobcat compact wheel loaders come standard with the Power Bob-Tach System and share select attachments with other Bobcat equipment, giving you the most versatility and productivity for your dollar.
