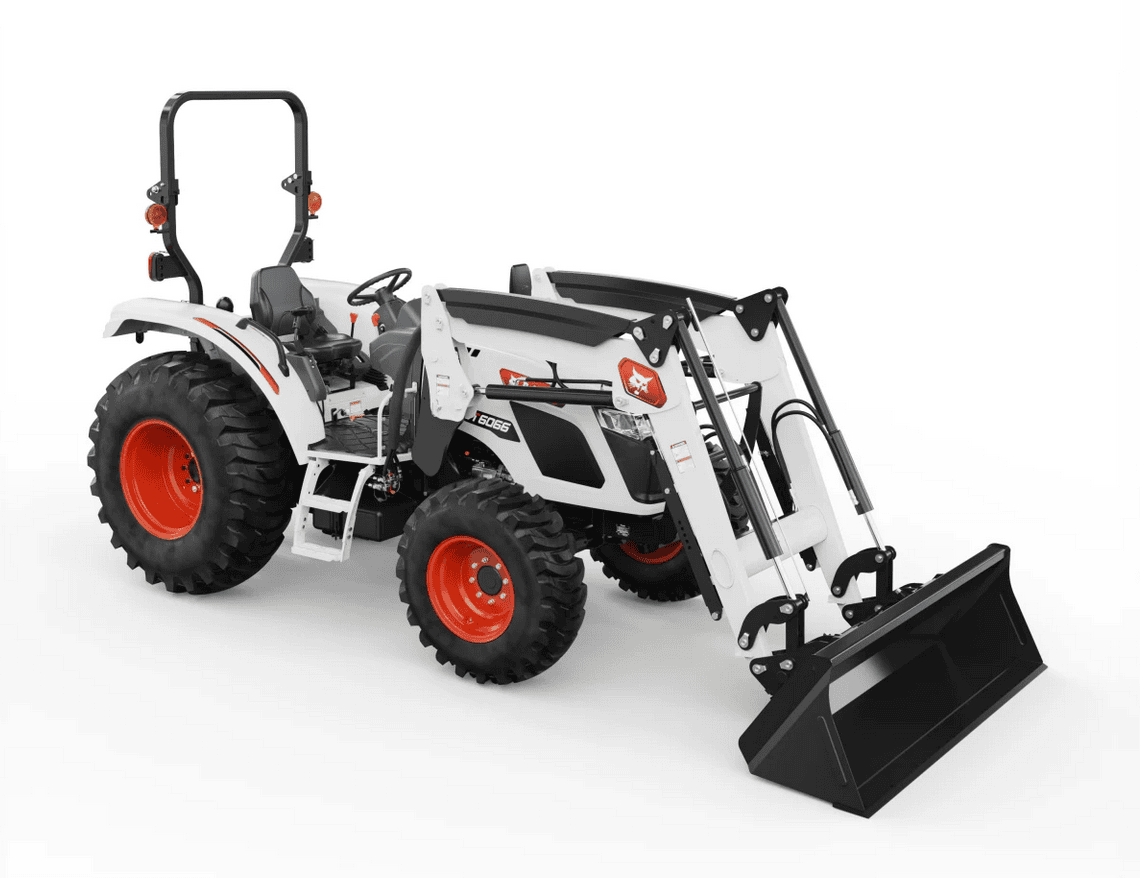

Bobcat UT6066 Utility Tractor
Whether you’re an experienced operator or a first-time tractor owner, the Bobcat® UT6066 utility tractor powers your accomplishments, day after day, with intuitive, operator-friendly features.
66.4 hp
Horsepower
5,440 lb
Operating Weight
3,898 lb
Lift Capacity
Bobcat UT6066 Utility Tractor Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
Horsepower 66.4 hp
Lift Capacity at 24" behind Lift Point 3,898 lb
PTO HP 53.6 hp
Transmission Type 3 Range Powershuttle (w/electronic clutch)
Width 77.2 in
Turning Radius 12' 3"
Wheelbase 6' 10"
Performance
Travel Speed 19.8 mph
Travel Speed - Reverse 19.5 mph
3-Point Hitch Category 2
3-pt Lift Control Type Position with Draft Control
Lift Capacity at 24" behind Lift Point 3,898 lb
Rear PTO System Independent
Rear PTO - RPM 540
PTO HP 53.6 hp
Fuel Tank 22.45 gal
Brake Type Wet Multi Disc
Transmission Type 3 Range Powershuttle (w/electronic clutch)
Emissions Tier (EPA) Tier 4
Horsepower 66.4 hp
Displacement 149 in³
Number of Cylinders 4
Engine Model 4HT-TP4A
Implement Hydraulic Flow 10.99 gal/min
Total Hydraulic Flow 17.86 gal/min
Steering Hydraulic Flow 6.87 gal/min
Dimensions
Length 148.8 in
Width 77.2 in
Height 102.1 in
Ground Clearance 12.3 in
Turning Radius 12' 3"
Wheelbase 6' 10"
Front Tire Size Front Industrial (AG, multi-use) 12.5/80-18 (9.5-24, 340/80R18)
Rear Tire Size Rear Industrial (AG, multi-use) 18.4-24 (16.9-30, 480/80R26)
