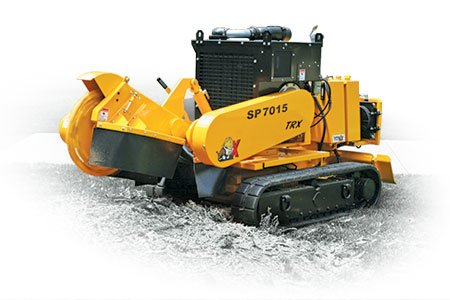

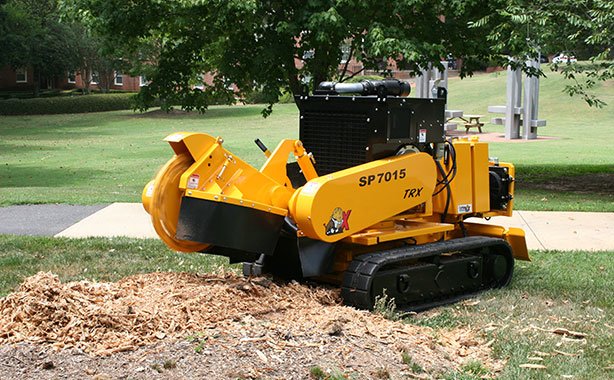

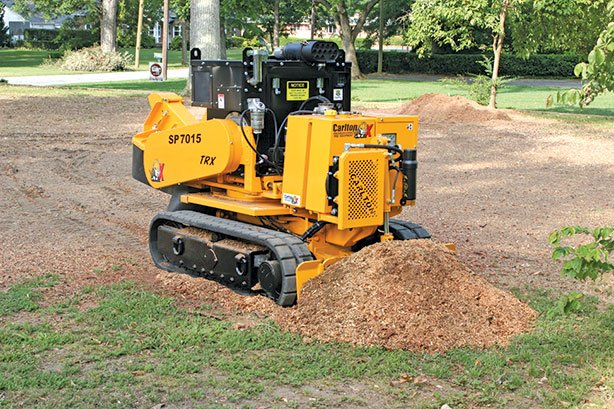

SP7015 TRX Series Track-Mounted Stump Cutter

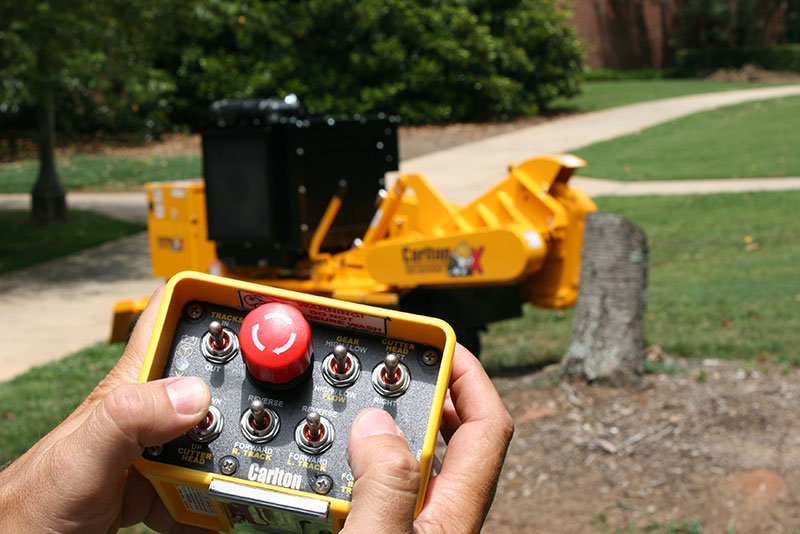

The SP7015 TRX is truly a go anywhere do everything machine. The SP7015 TRX Stump Cutter on tracks features a standard wireless remote control, 4 speed ground drive system, traction control, and telescoping tracks. The unit’s track system hydraulically retracts from 48-inches to 35-inches so the operator can maneuver easily through tight situations like a back yard gate. The SP7015 TRX packs big cutting power in a compact unit and produces only 5.3 psi ground pressure.
15″
Cutting depth
43″
Cutting height
32 - 48
Number of teeth
SP7015 TRX Series Track-Mounted Stump Cutter Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
Fuel tank capacity 9.6 gallons
Hydraulic tank capacity 9 gallons
Ground pressure 5.3 psi
Performance
Cutting depth below ground 15″
Cutting height above ground 43″
Cutter head swing 70″ arc

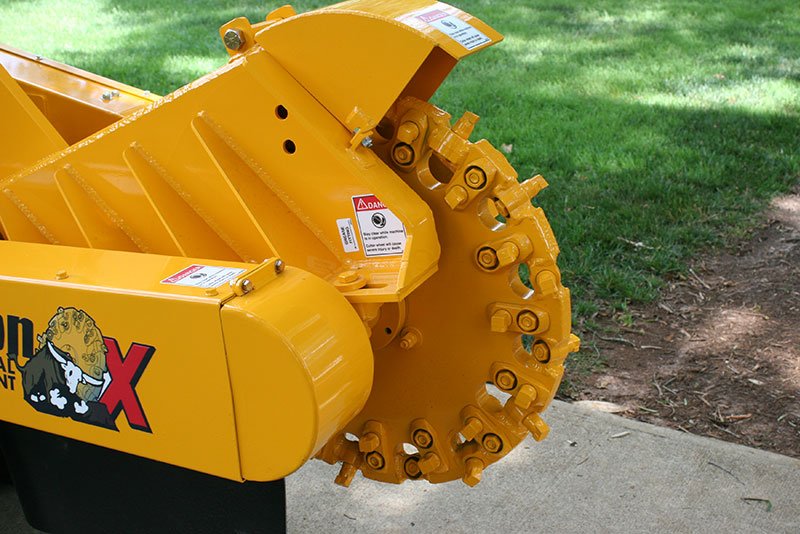

Number of teeth on cutter wheel 48-Razor Wheel / 32-Standard Wheel
Type of Cutter Teeth Hard Micro Structure Carbide
Cutter wheel thickness 1 1/2″
Chip containment volume 38 cu. Ft.
Cutter wheel diameter with teeth 28″
Jack shaft bearings 1 11/16″
Cutter wheel bearings 2″
Engine option 1 74 HP Turbocharged 4 Cylinder Kohler KDI2504TCR Diesel Tier 4 Engine
Engine option 2 74 HP Turbocharged 4 Cylinder Kubota V3307-CR Diesel Tier 4 Engine
Dimensions
Machine width 35″ Track Width Retracted, 48″ Track Width Extended
Machine height 77″
Overall length 130″
Total weight 5820 lbs.
Track dimension 9 1/2″ X 58″ Long
