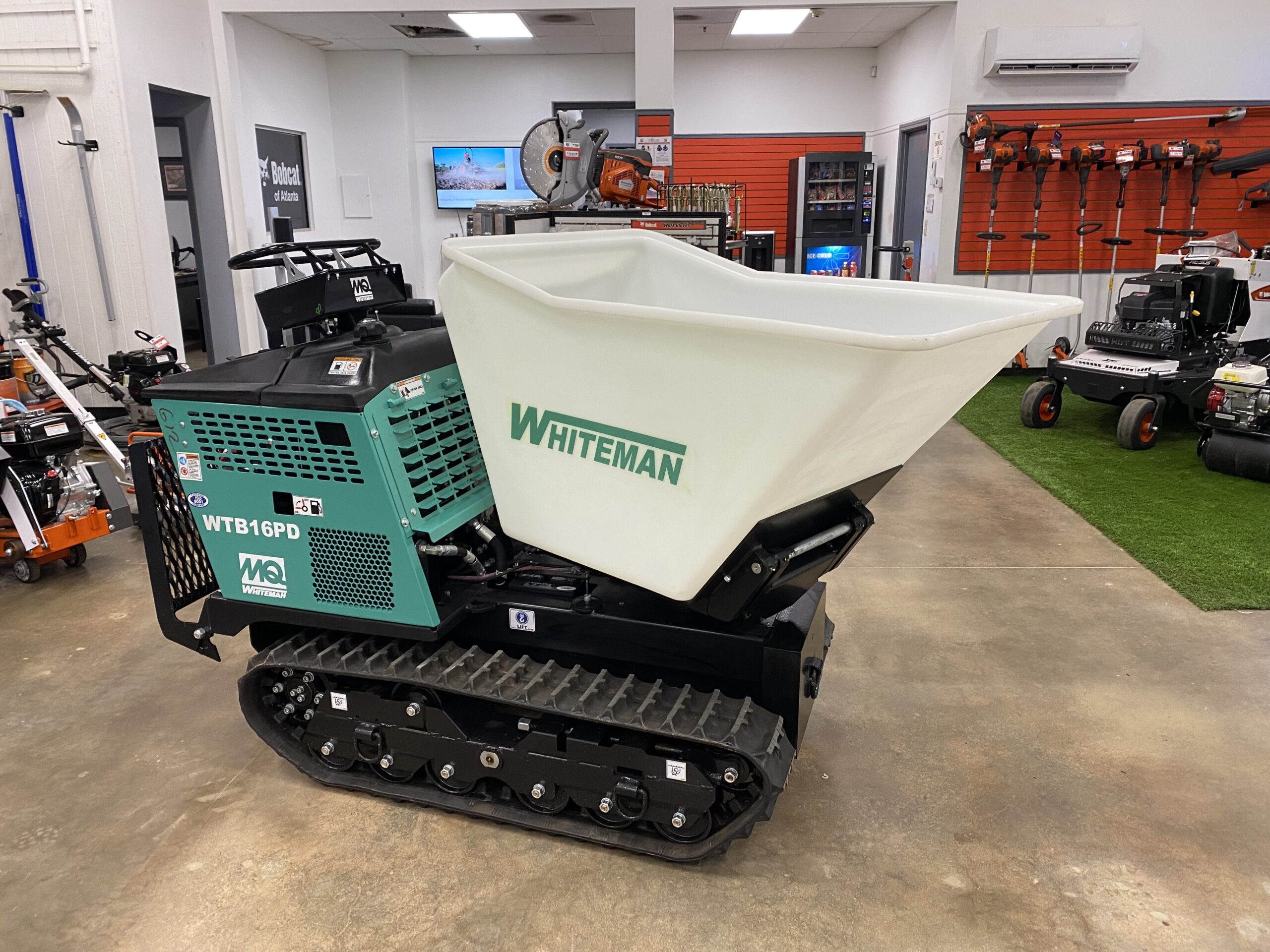

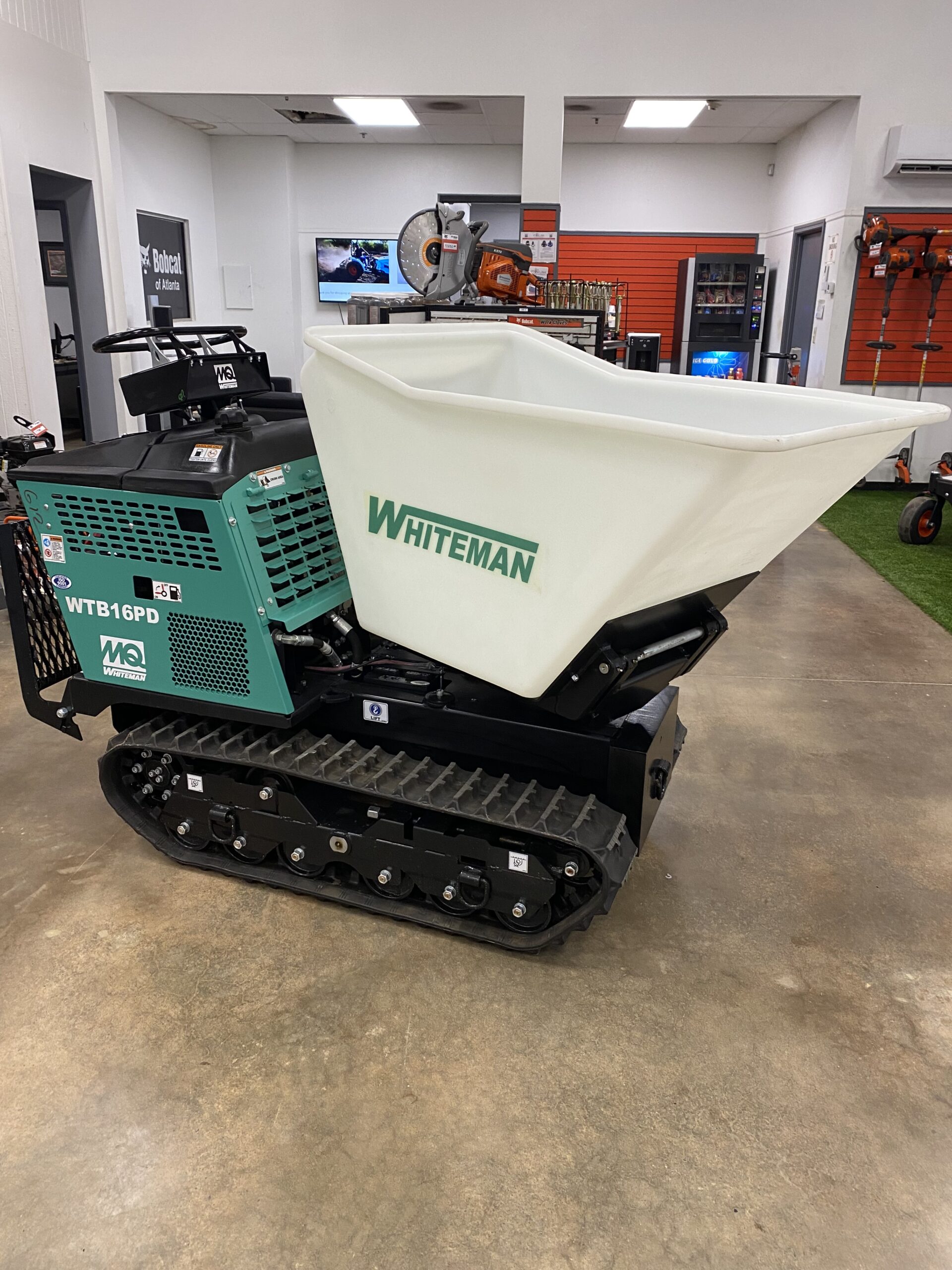

Multiquip WTB-16PD Concrete Pivot Dump Buggy

** Limited Quantity Available **
The WTB-16PD features an aggressive track pattern enabling the buggy to travel effortlessly through soft soils and muddy site conditions. The WTB-16PD is engineered with top quality components and built with the attention to detail that has made MQ Whiteman the leader in motorized buggies.

180° Radius Pivot Dump
16 cu. f Tub Capacity
2,138 lb Weight

Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.

Call Your Local Bobcat of Atlanta Location For Unit Availability.

Specifications

Multiquip WTB-16PD Concrete Pivot Dump Buggy Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options. **

Feature 1 Tub pivots up to 180 degrees (Features both hand & foot levers to control rotation)
Feature 2 Rotation system features hydraulic cylinder to rack & pinion
Feature 3 Pivot system features idler wheel to maintain hydraulic hose tension and prevent chaffing
Feature 4 Optimal traction and durability assured by a steel imbedded ladder track design
Feature 5 Rugged undercarriage guide wheels are ductile cast iron
Feature 6 Low maintenance hydraulic design eliminates wear parts such as belt-drives and drive couplers
Feature 7 High torque drive motors propel the buggy through tough conditions and offer fail-safe braking
Feature 8 Versatile tub offers 16 ft.³ (2,500 LB.) capacity and polyethylene construction for easy cleaning
Feature 9 Narrow width allows the buggy to pass through doorways or confined areas
Feature 10 Easy steering dual control levers allow the operator to control the unit while minimizing fatigue
Tub Capacity 16 cu. f
Tub Material Polyethylene
Pivot Range 180° arc
Travel Speed (loaded) 4.7 mph
Fuel Tank Capacity 5 gal
Drive System Hydraulic Powered Track-Drive
Engine 22 HP Honda GX690
Overall Length 100
Overall Width 35.6 in.
Overall Height 56.5 in
Operating Weight 2,138 lb
