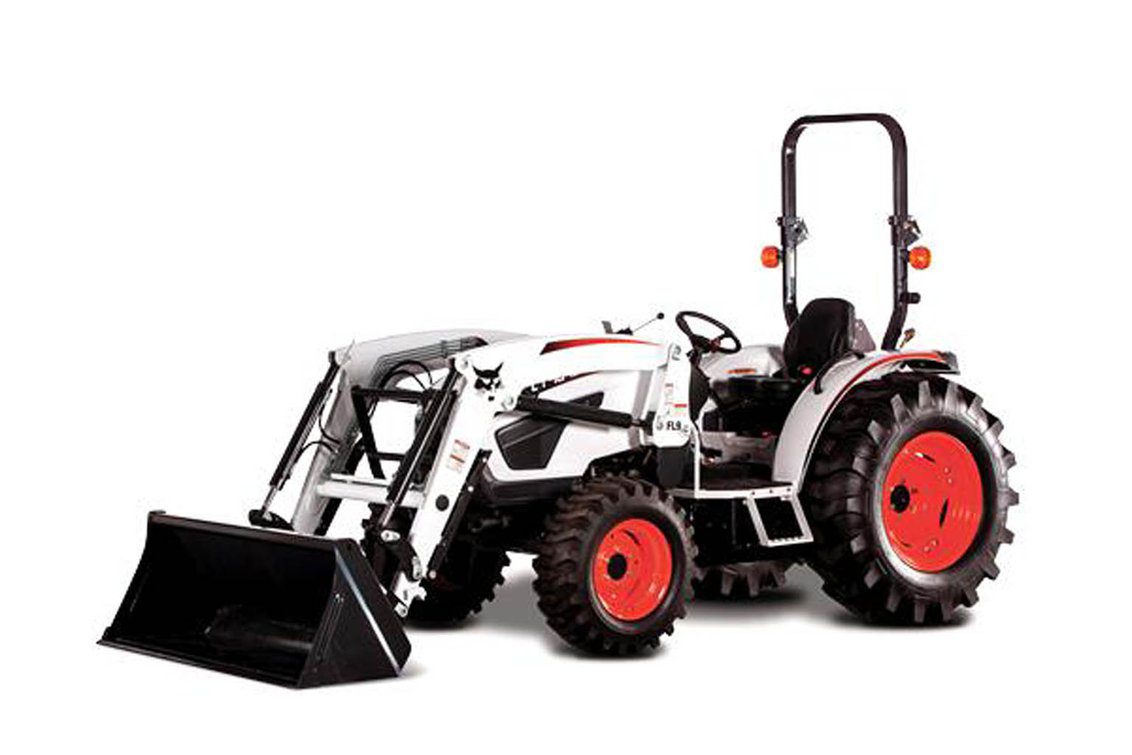

Bobcat CT4050 Compact Tractor

This model is available in two transmission options: Hydrostatic or manual synchro shuttle transmission.

This 50-hp compact tractor, with a turbo-charged engine, two transmission options and an open cab, is a workhorse on your property. The CT4050 provides the power you need for heavy-duty implement and attachment work.

50.3 hp

Engine Horsepower

39.3 hp

PTO Horsepower

3,745 lb

Operating Weight

Bobcat CT4050 Compact Tractor

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Bobcat CT4050 Compact Tractor Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Horsepower 50.3 hp
Lift Capacity at 24" behind Lift Point 2,716 lb
PTO HP 39.3 hp
Transmission Type 3-Range HST
Width 70 in
Turning Radius 8' 7"
Wheelbase 5' 11"
Fuel Tank 12.7 gal
Implement Hydraulic Flow 9.6 gal/min
Total Hydraulic Flow 16.5 gal/min
Steering Hydraulic Flow 6.9 gal/min
Brake Type Wet Multi Disc
Transmission Type 3-Range HST

Performance

Operating Weight 3,745 lb
Travel Speed 18.5 mph
Travel Speed - Reverse 12.5 mph
3-Point Hitch Category 1
3-pt Lift Control Type Hydraulic Position Control System
Lift Capacity at 24" behind Lift Point 2,716 lb
Rear PTO System Independent
Rear PTO - RPM 540
PTO HP 39.3 hp
Mid PTO - RPM 2119
Emissions Tier (EPA) Tier 4
Horsepower 50.3 hp
Displacement 111 inÂł
Number of Cylinders 3
Gross HP 50.3 hp
Engine Model 3FT-THL4-U

Dimensions

Length 125.5 in
Width 70 in
Height 97.4 in
Ground Clearance 15.3 in
Turning Radius 8' 7"
Wheelbase 5' 11"
Front Tire Size Front Industrial (AG, Turf) 10-16.5 (8-16, 29X12.5-15)
Rear Tire Size Rear Industrial (AG, Turf) 17.5-24 (13.6-24, 44X18-20)
Loader Lift Height 8' 8"
Lift Capacity @ 500mm ahead of bkt pivot 1,795 lb
Bucket Width 5' 6"

Bobcat CT4050 Compact Tractor Features

Open Cab

Open Cab

Get excellent sightlines to the work and great all-around visibility from the open cab. You’ll also appreciate how fast, and easy it is to get on or off the tractor from either side throughout the day when changing implements or loading materials. The foldable Roll-Over Protective Structure (ROPS) protects the operator in the event of a rollover, and can be temporarily lowered when driving under trees or into garages.

Transmission Options

Transmission Options

Choose from two transmission options on 4000 platform models. Manual synchro shuttle transmission offers shift-on-the-fly functionality similar to a stick-shift automobile. Clutch and shift across eight forward and eight rear speeds as you travel. 3-Range HST hydrostatic transmission option uses hydraulic pressure to change speed, operating similarly to a vehicle. You only need to stop moving if you want to change your range.

Standard Features

Standard Features

Get the features standard on all Bobcat tractors, including four-wheel drive, high ground speeds, rear PTO and three-point hitch, and a low-noise, low-vibration engine. Plus other standard features including: Turbo-charged performance for consistently high performance and low-end torque. Power and tilt steering for near-effortless maneuverability. Lever-controlled three-point hitch for simple implement connection
