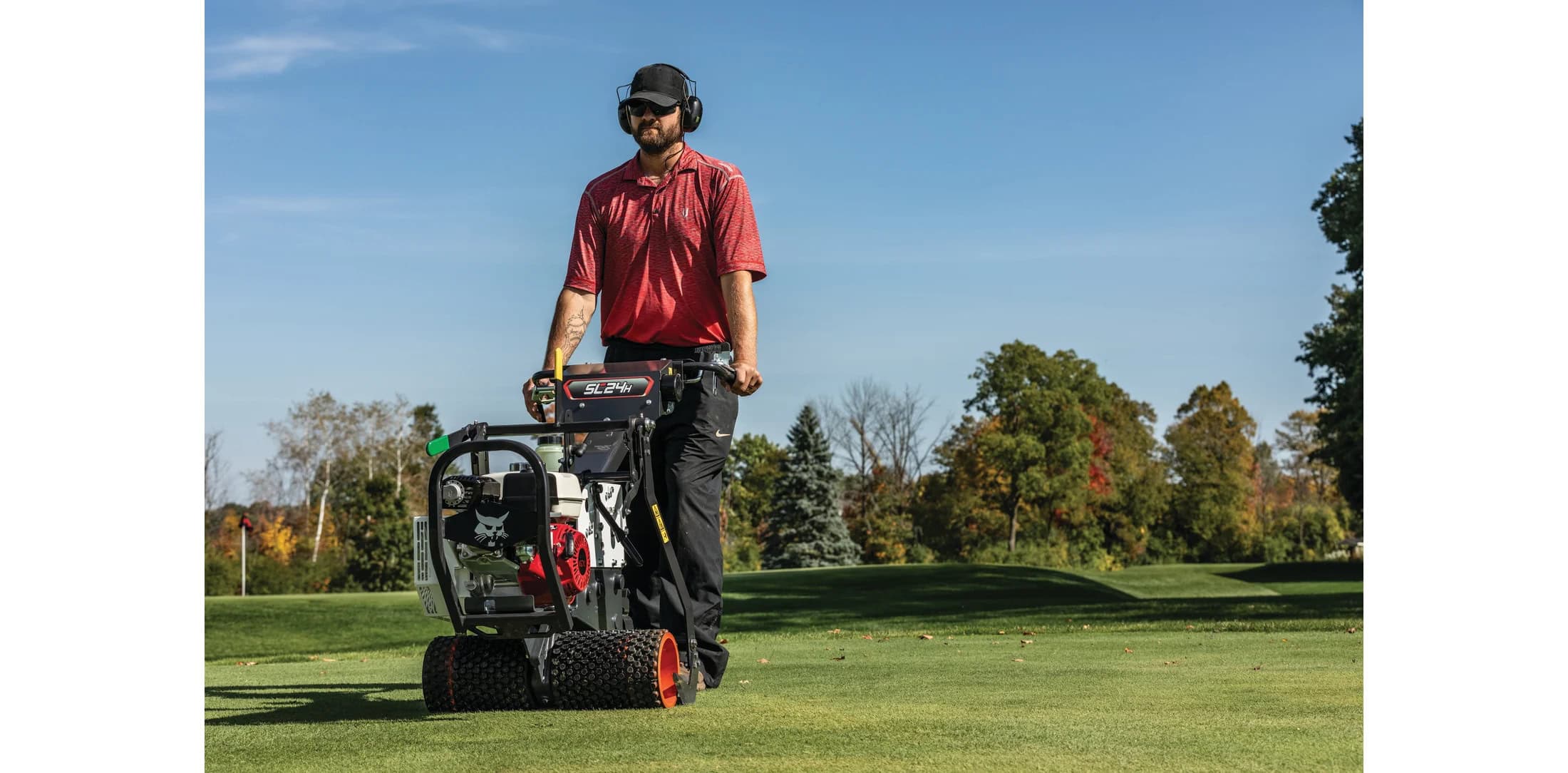

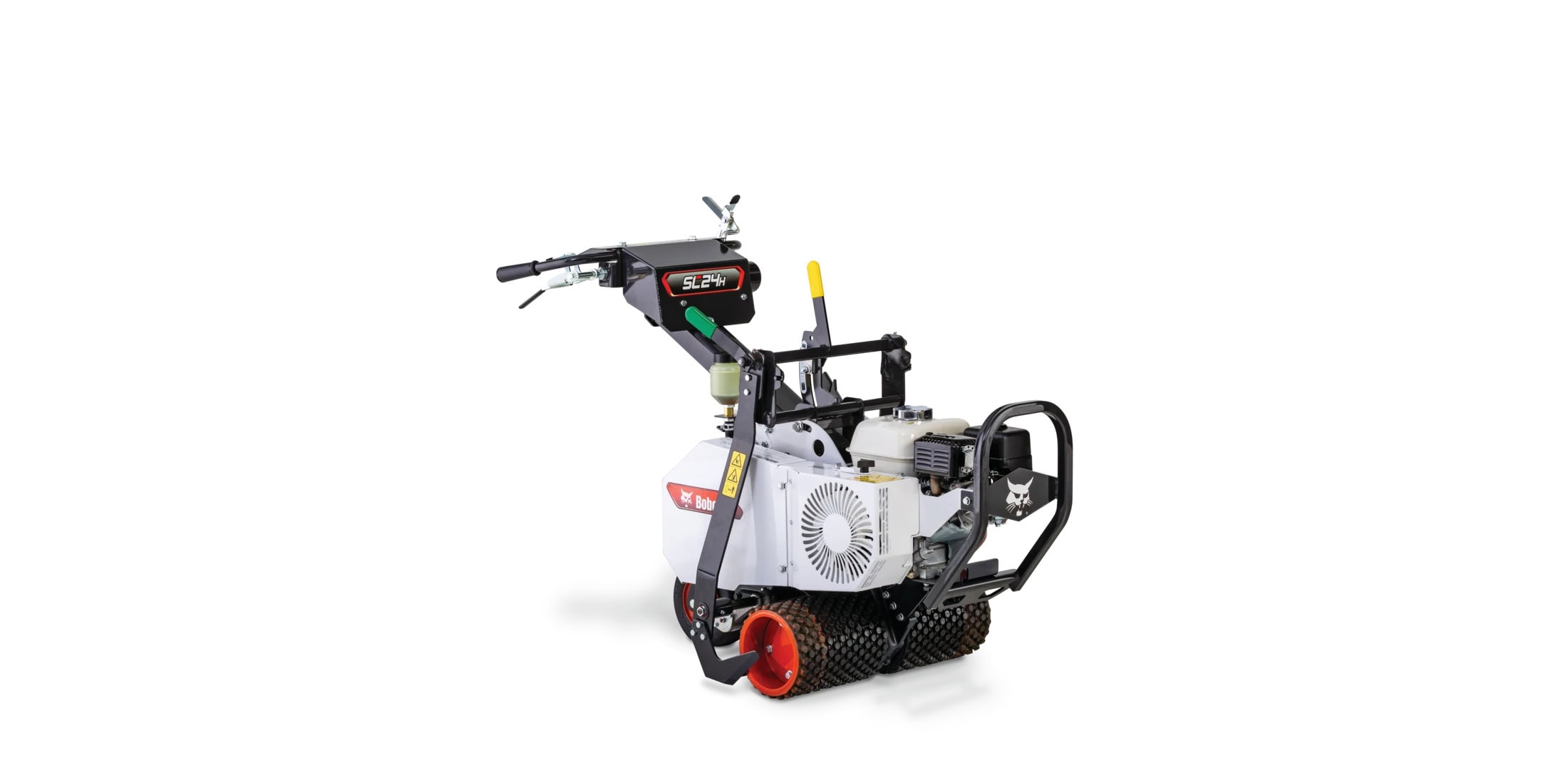

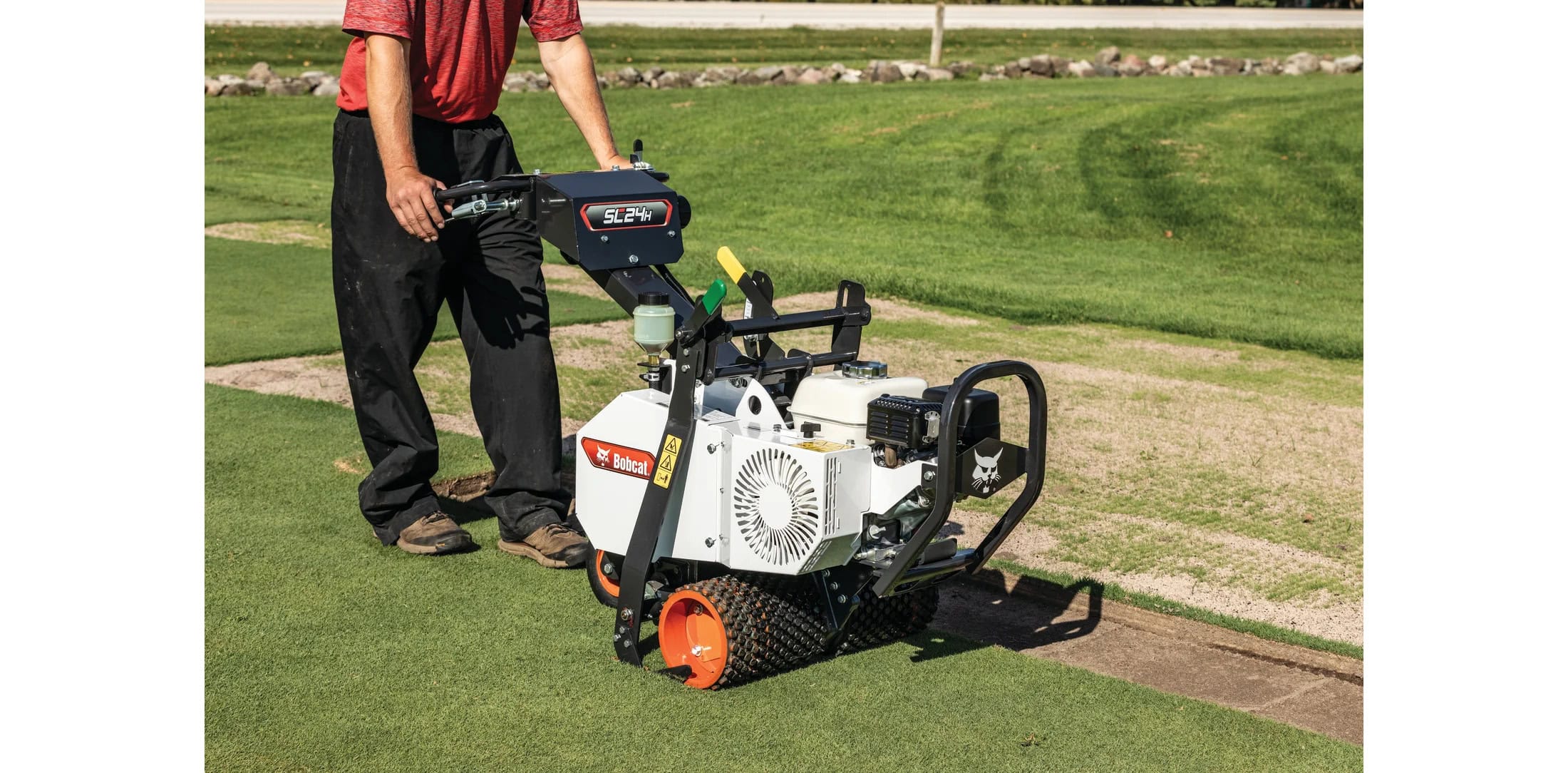

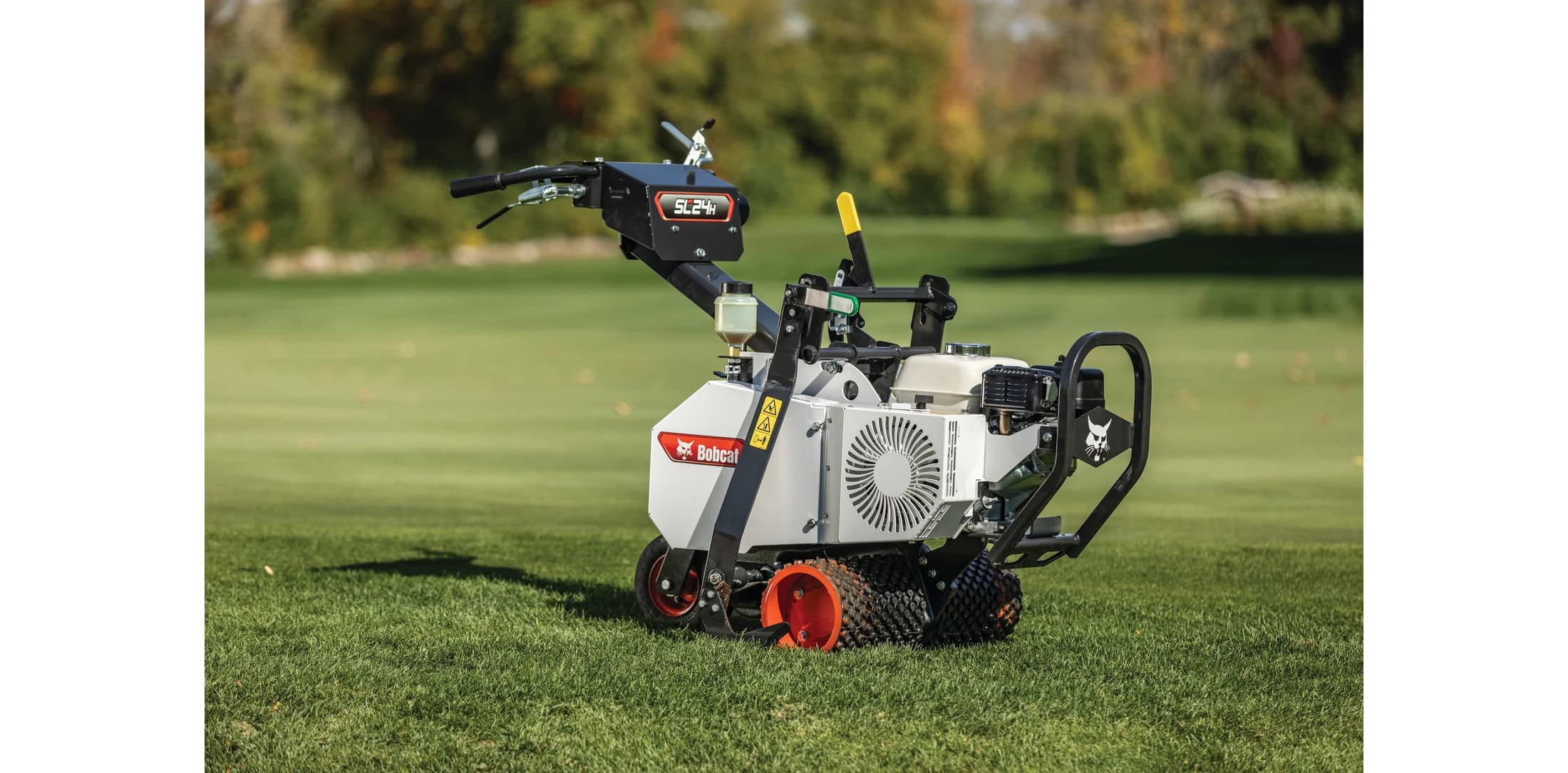

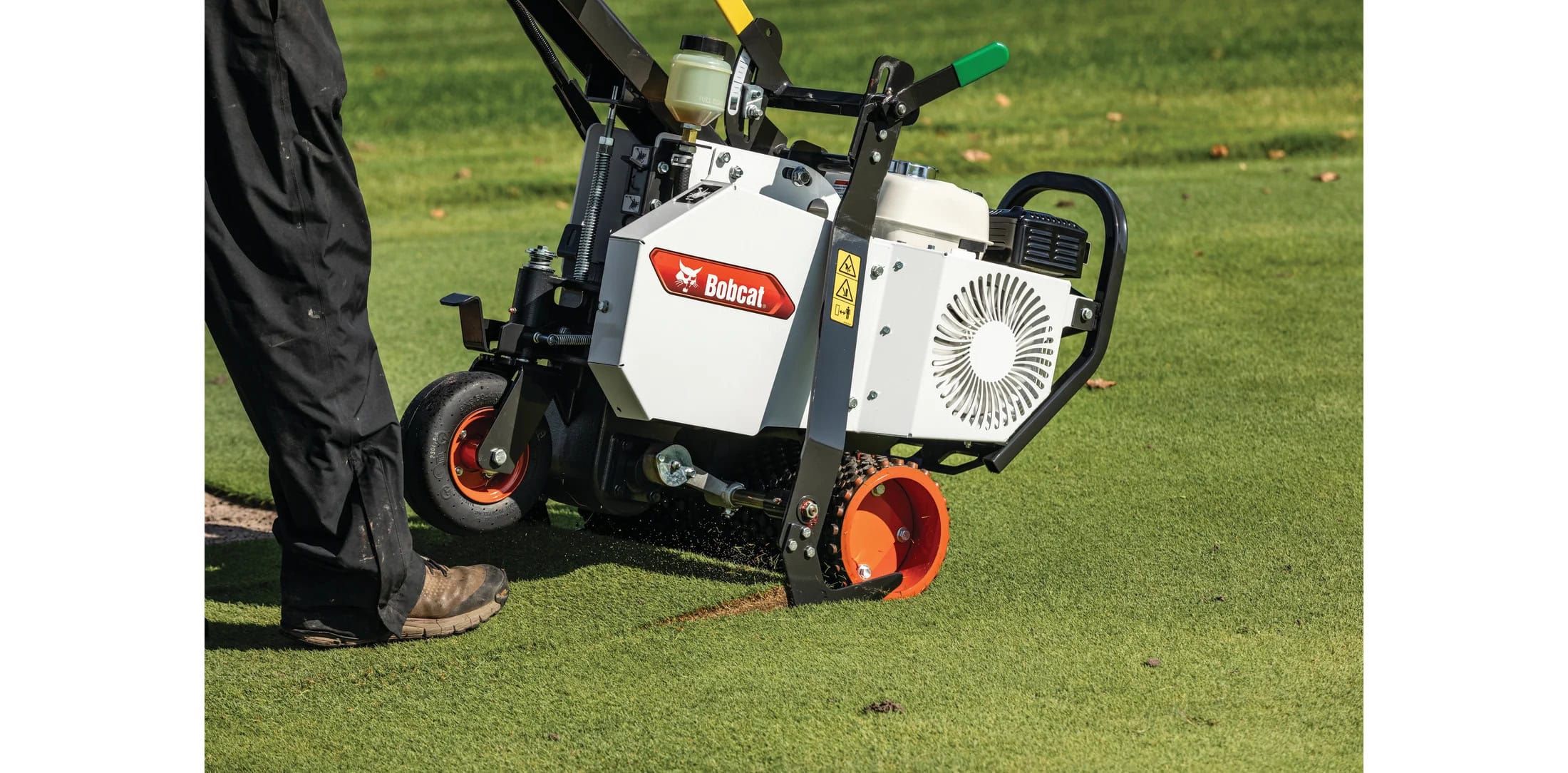

Bobcat SC24H Sod Cutter – Honda Engine

Effortlessly cut more sod, more efficiently with Bobcat® sod cutters. With a 4.8 hp Honda® GX160 engine that reaches a 2 mph cutting speed and 4 mph transport speed, these machines are built to help you make quick work of any sod cutting job.  Four powerful models allow you to cut sod up to 2.5 inches thick at widths of 12, 18 or 24 inches. Easily take on the heaviest, most challenging soils with tread turf wheels that are designed to work on turf without damaging or tearing it. Enjoy the increased maneuverability of the hydrostatic drive, which allows for reverse operation, increasing your productivity during even the toughest tasks. It’s no wonder Bobcat sod cutters are a cut above the rest.

9.9 cu. in.

Displacement

0.8 gal.

Fuel Capacity

0.6 qt.

Oil Capacity

Bobcat SC24H Sod Cutter – Honda Engine

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Bobcat SC24H Sod Cutter – Honda Engine Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Increased Durability Equipped with a signature cast-iron gearbox, a sturdy front bumper and a laser-cut blade that sharpens itself as it wears down, Bobcat sod cutters are designed for superior cutting performance and longevity.
Intuitive Operation A conveniently mounted throttle lever on the operator station provides easy access during operation. A QR code is also located on the operator station for easy access to information about how to use your sod cutter effectively.
Easy Handling 0.6 qEnjoy smooth operation and reversing with the variable traction level of the hydrostatic drive. And you’ll stay comfortable throughout the day with ultra-low vibration technology that reduces fatigue and enhances overall user experience.t. (0.6 L)
Enhanced Safety The latch-locked blade lever prevents accidental activation of the blade until pressed, ensuring secure operation and increased user safety.

Performance

Max. Adjustable Cutting Thickness 2.5 in.
Cutting Width 24.0 in.
Max Cutting Depth 2.5 in
Max Blade Speed 1,225 rpm
Max. Forward Speed 352 ft./min.
Max. Reverse Speed 176 ft./min.
Drive System A-section belt from engine to hydrostat that transfers power through enclosed lubricated gearcase; Wheels: gears and chain reduction to drive wheels; Blade: gears to blade eccentric shaft
Transmission Hydro-Gear #BDU-10S-127; 10cc pump
Hydraulic Oil CapacityHydraulic Oil Capacity 2.1 qt
HONDA Engine 4-Cycle GX160
Displacement 9.9 cu. in.
Fuel Capacity 0.8 gal.
Oil Capacity 0.6 qt.

Dimensions

Drive Wheel Diameter 8.0 in.
Rear Tires 9 x 3.50-4
Weight: Wet 398 lb.
Width 25.0 in
Length 52.5 in.
Height 40.2 in.
