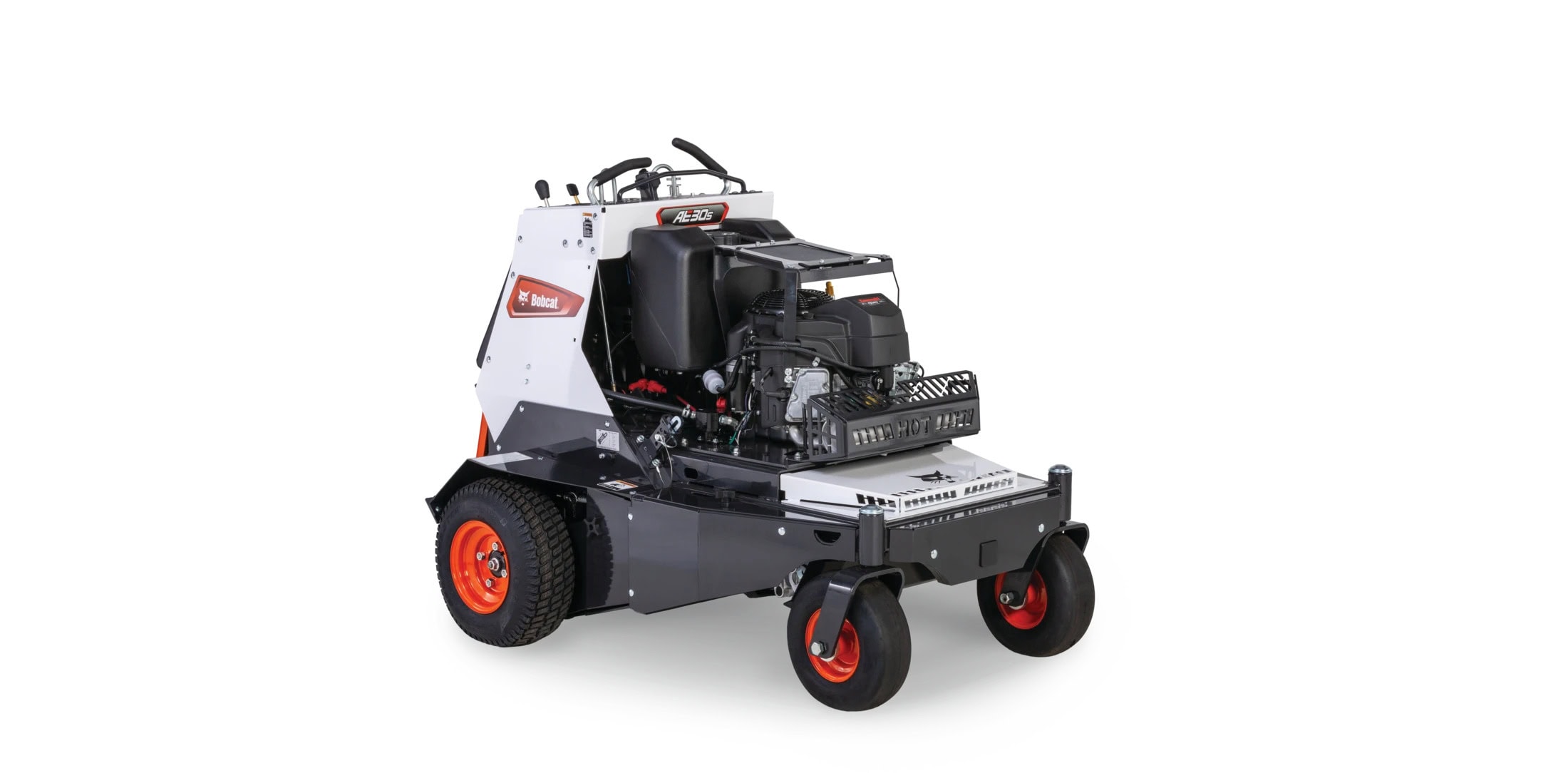

Bobcat AE30S Stand-On Aerator

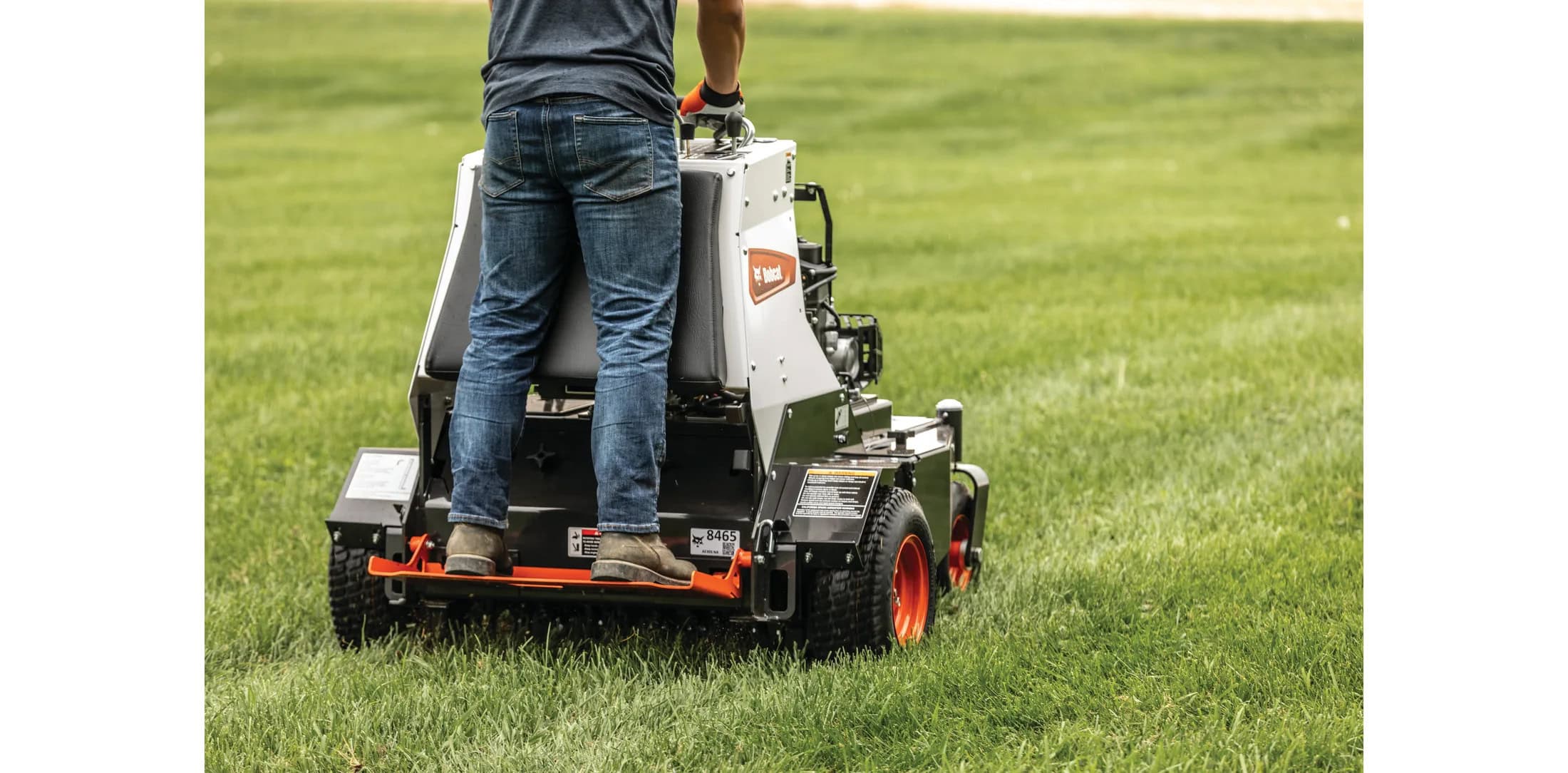

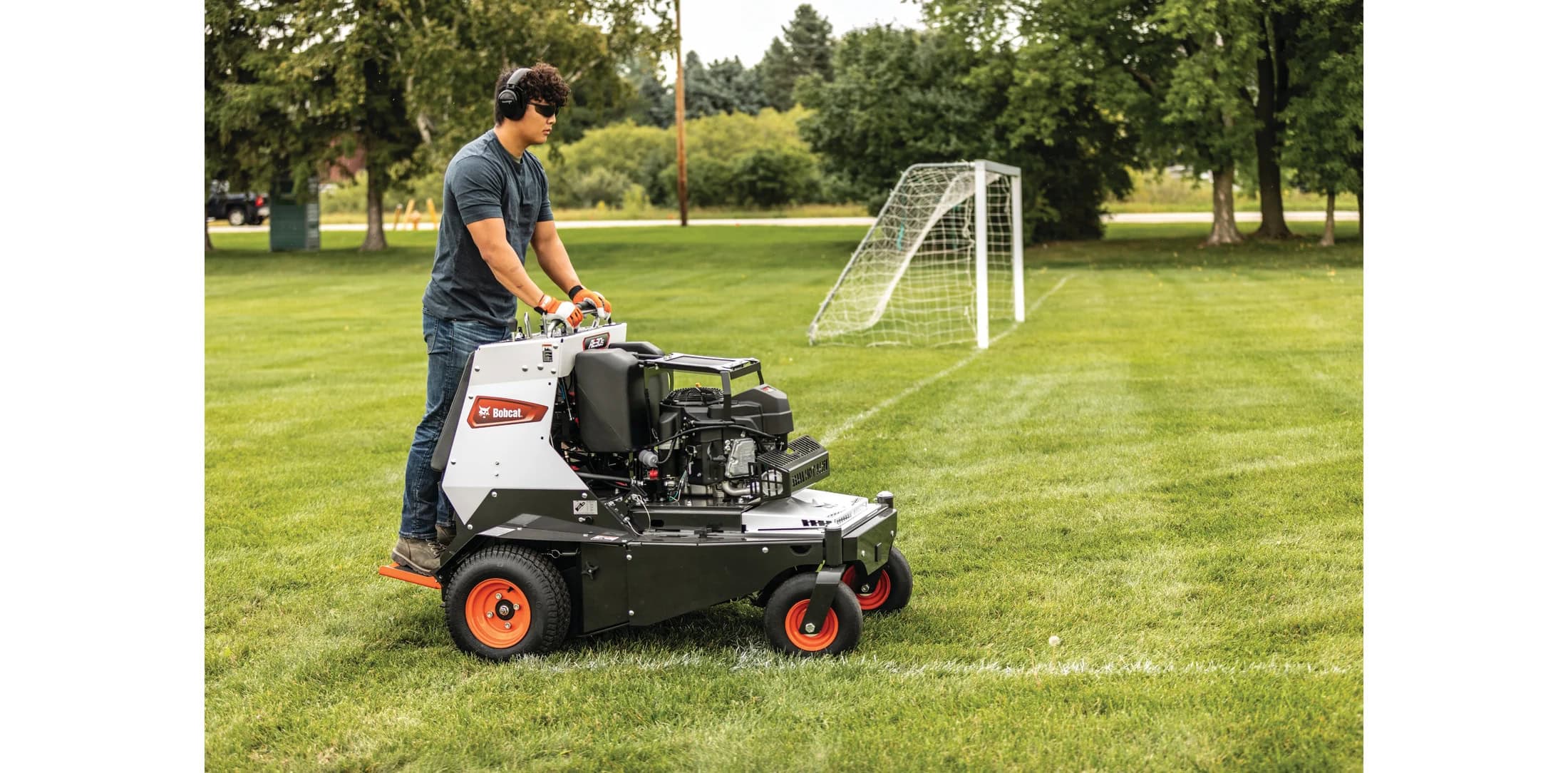

Aeration season doesn’t last forever, that’s why you need a swift, efficient machine that saves you time while increasing your productivity. The Bobcat AE30S does just that, capable of covering two-and-a-quarter acres per hour at ground speeds up to 7 mph. Its innovative features and controls also give you the power and speed to take on the biggest jobs. It’s packed with features including an anti-vibration operator platform that can be flipped up for walk-behind applications, patented depths that create a hard limit for tine penetration, a patented cooling system that provides optimal engine temperature, and a patented chain tensioner system that automatically keeps the chains properly tightened.

47.2 in.

Width

48.0 in.

Height

69.5 in.

Length

Bobcat AE30S Stand-On Aerator

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Bobcat AE30S Stand-On Aerator Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

High Maneuverability Navigate narrow spaces with versatile walk-behind models, or cover more ground with stand-on and tow-behind models that aerate up to 3 acres per hour.
Unrivaled Productivity With available aeration widths between 19 and 72 inches, Bobcat aerators make light work of any size landscape.

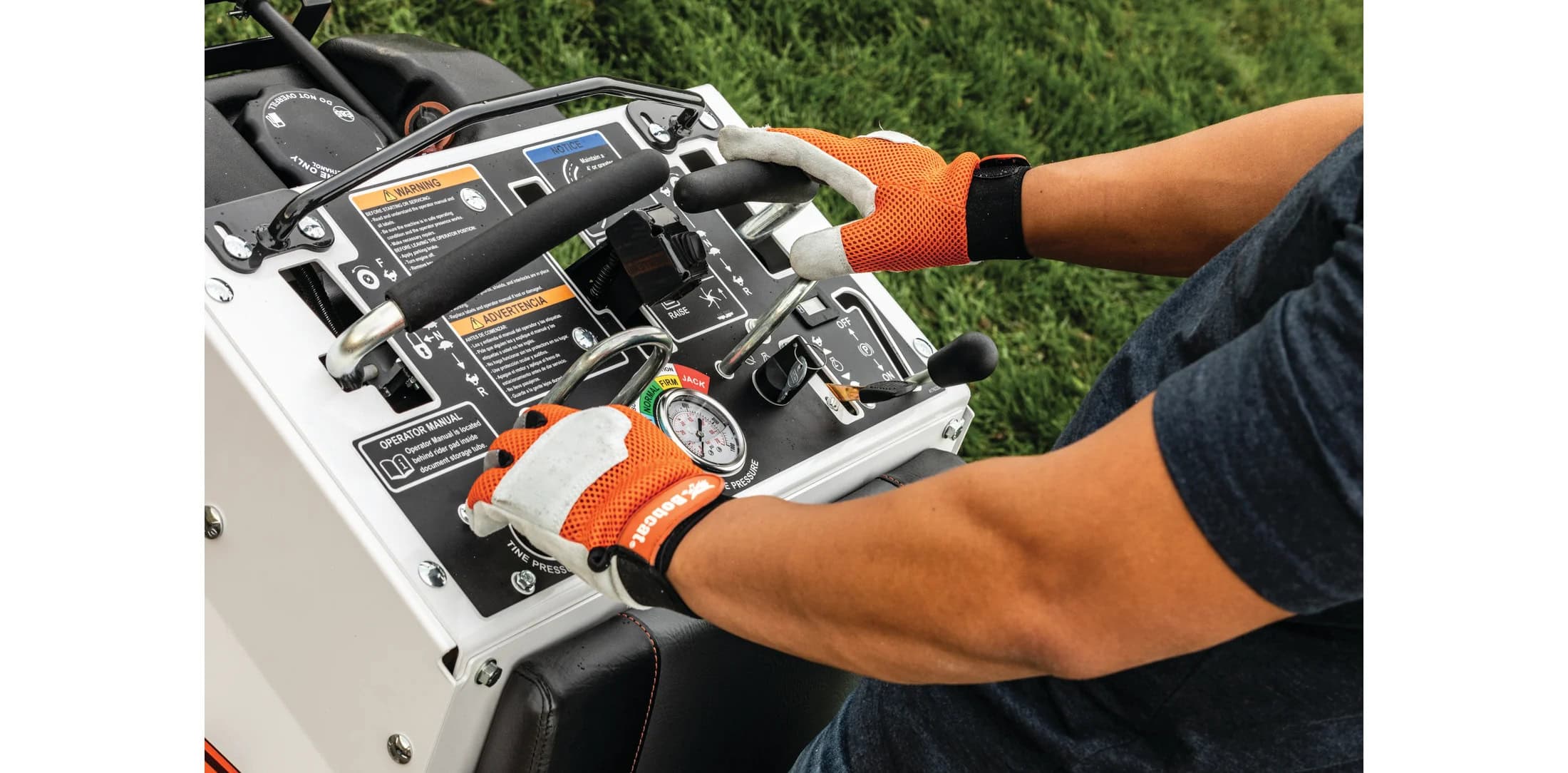

Intuitive Operation The operating controls on the AE19, AE26 and AE30s models are conveniently located at the handlebar, ensuring easy and intuitive operation.
Durable Wheels Conquer even the most expansive landscapes with confidence thanks to the heavy cast iron aeration wheels on the AE72 model that allow for more effective tine penetration.
Easy Maintenance With open access to critical components like lubrication fittings, you’ll enjoy smoother maintenance and operation
Built To Last Crafted to withstand the harshest conditions, the rugged design of Bobcat aerators ensures that your machine will perform at its best and maximize your turf health for years to come.

Performance

Number of Tines per Aerator 48
Coring Depth 2.0-5.0 in.
Productivity Aerates up to 97,800 sq. ft./hr. (9086 m2/hr.) at XX mph
Tine Type 0.75 in (19 mm) formed from 0.08 in (2 mm) hardened chrome molybdenum alloy steel
Aeration Width 30 in
Aeration Pattern .75 in x 8 in (95 mm x 203 mm)
Depth Adjustment Hydraulic pressure control and (2) depth stop pins on either side of machine in 0.5" increments
Maximum Aeration Depth 5 in
Engine Kawasaki® FS541V
Engine Displacement 36.8 in³
Horsepower 15 hp
Fuel Capacity 5 gal

Dimensions

Overall Width 47.2 in.
Aeration Width 30.0 in.
Overall Height 48.0 in.
Overall Length 69.5 in.
Wet Weight 1235 lb.
Front Tire(s) (2) 13 in x 5 in - 6 in smooth-tread pneumatic caster wheels
Rear Tire(s) (2) 18 in x 6.5 in - 8 in turf-tread pneumatic drive wheels
