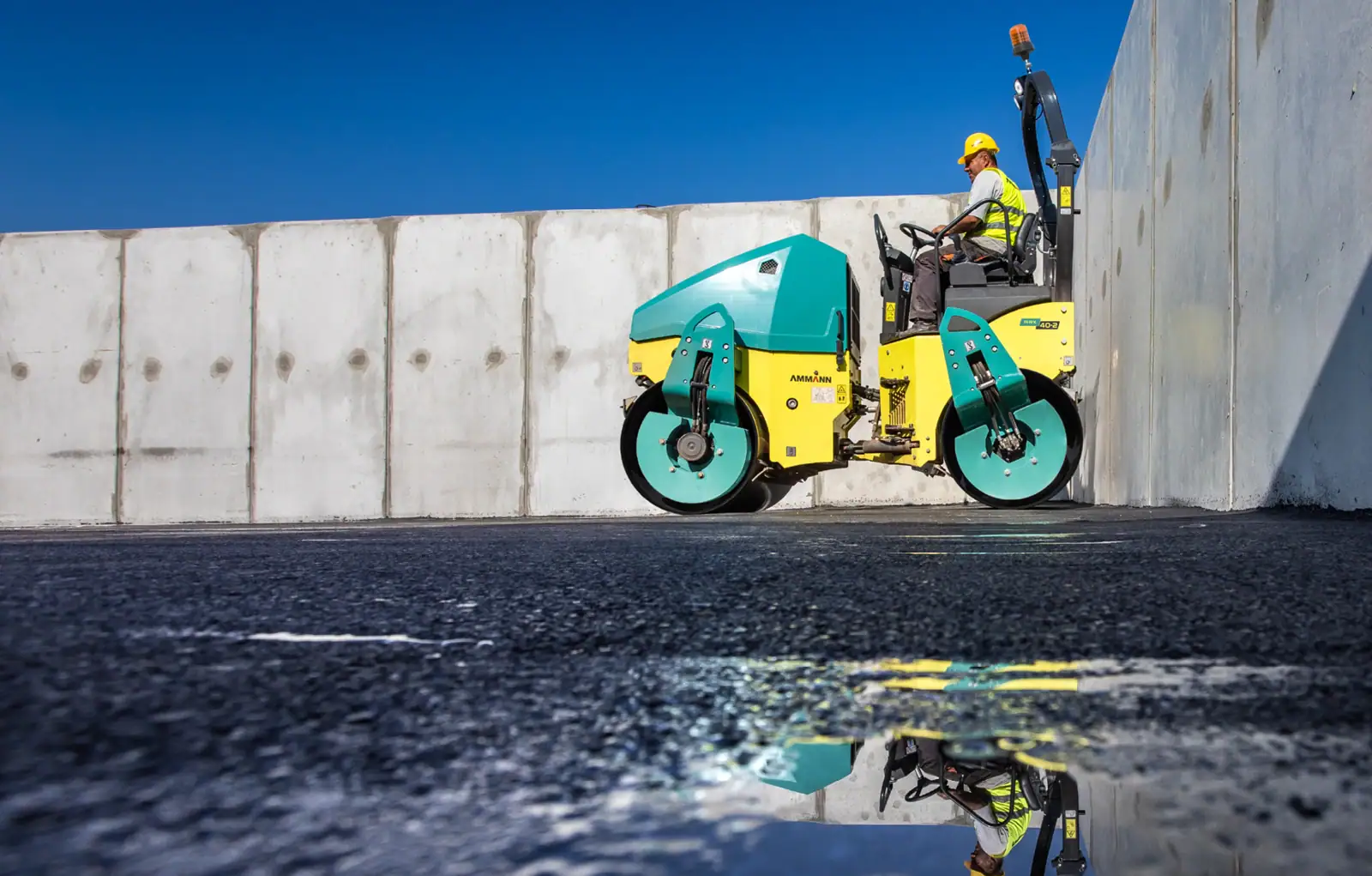

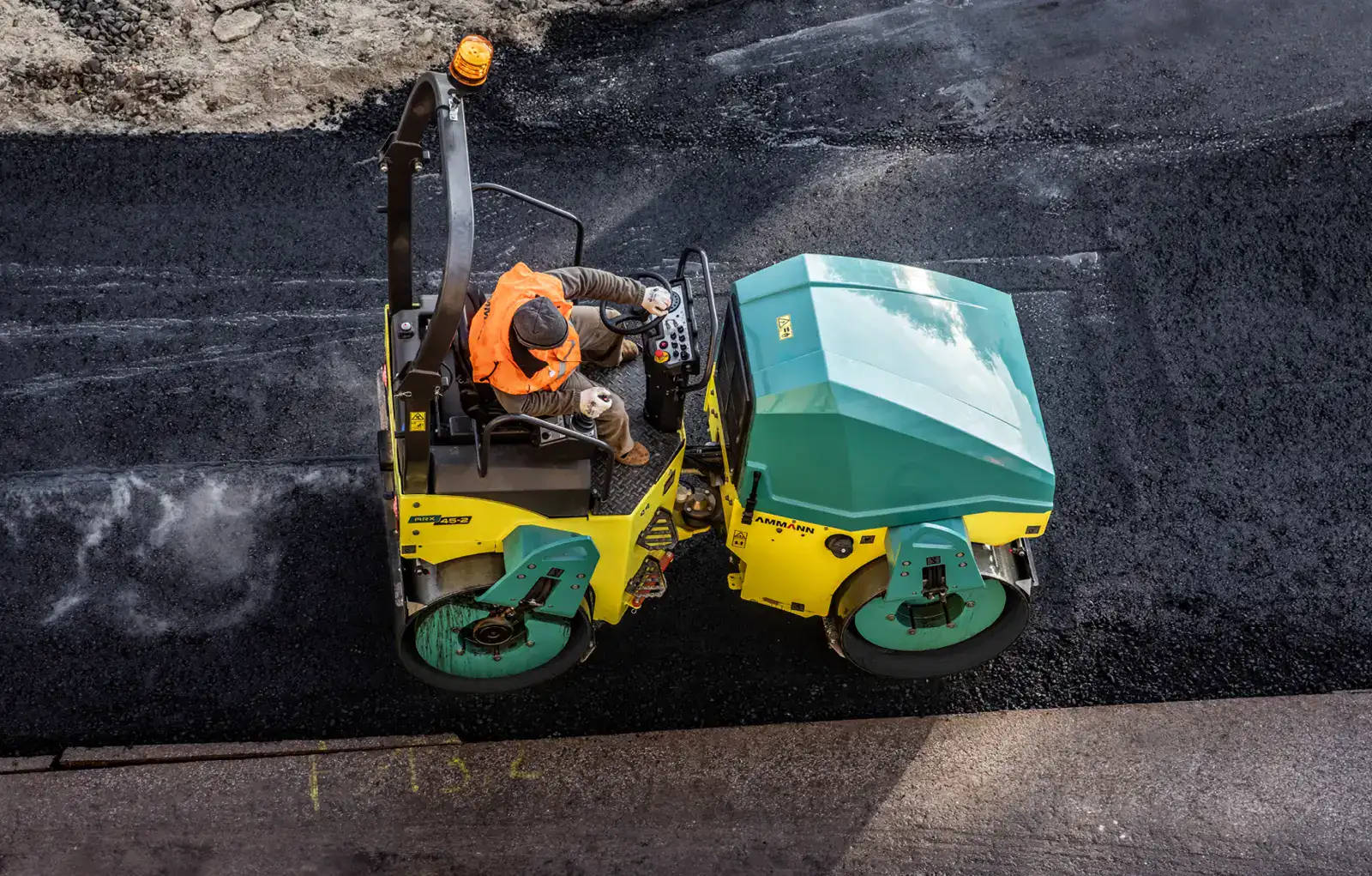

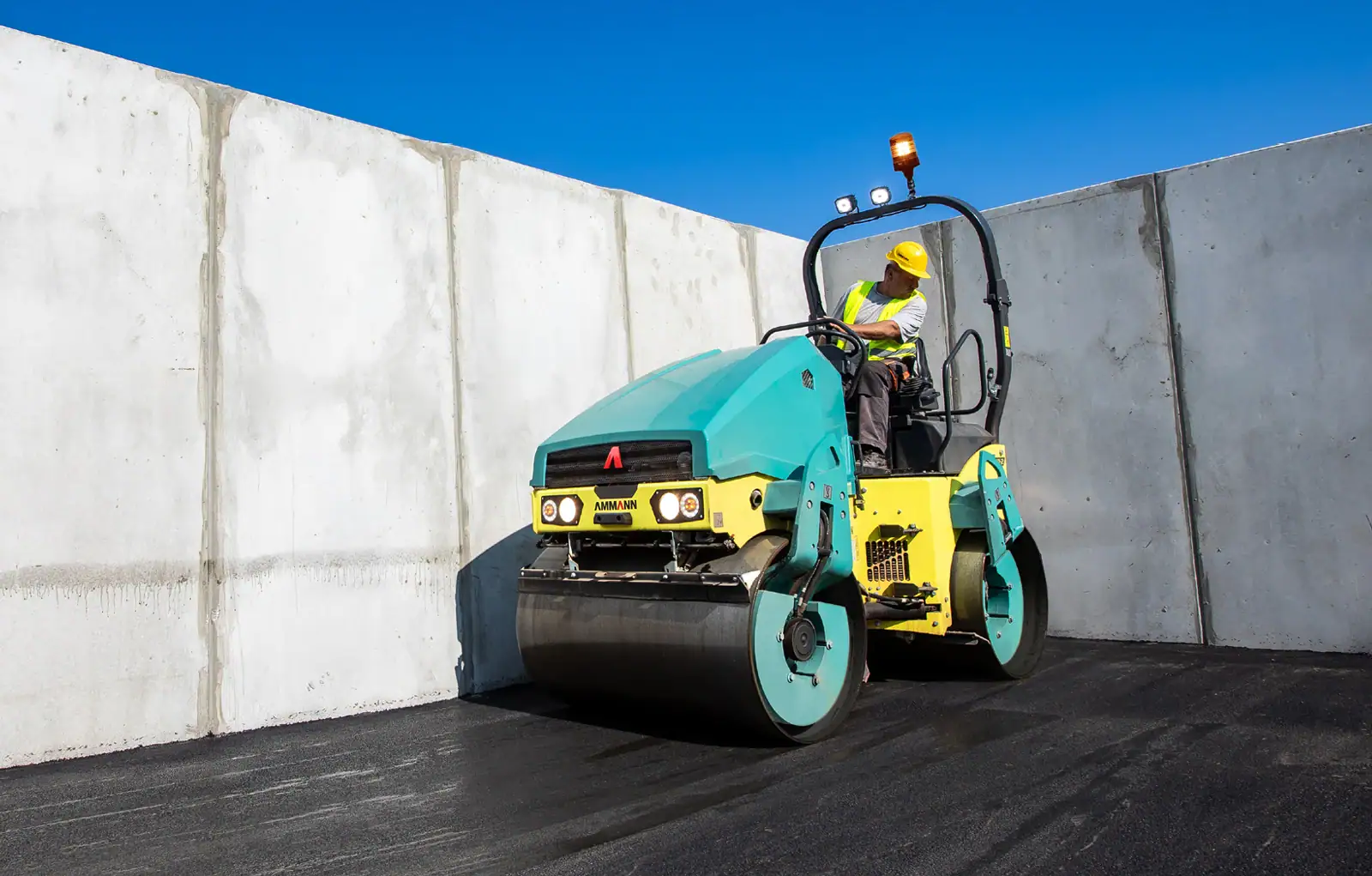

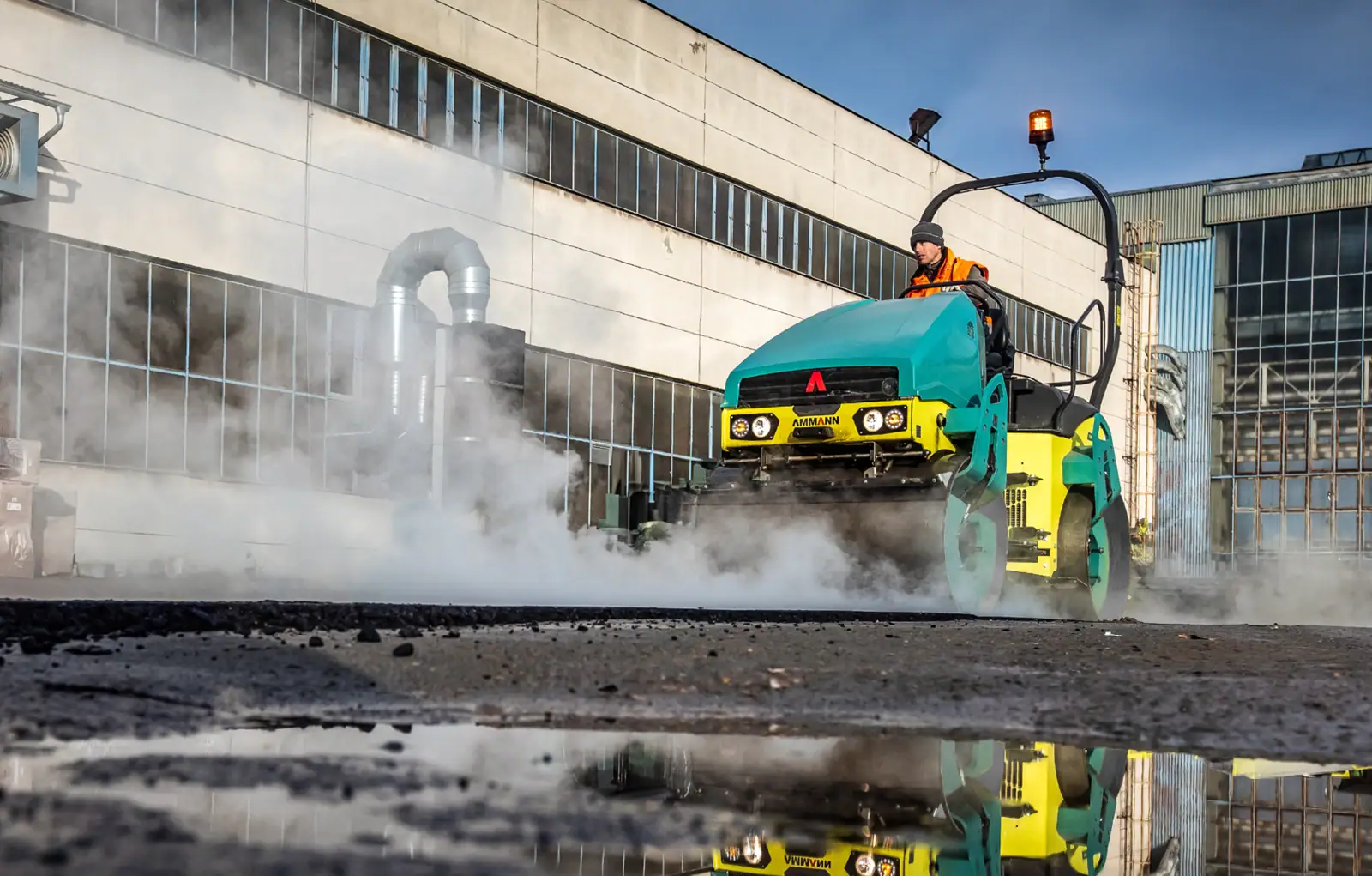

Ammann ARX 40-2 Light Tandem Vibratory Roller
The roller, with a drum width of 1300 mm (51.2 in), features a new articulating joint that enables quick drum adjustment from in-line to off-set configurations. Rollers that are offset are able to work close to obstructions. Operators need watch only one drum, knowing the second will be a safe distance from the obstruction.
Tier 4f
Emission Stage
51.2 in
Drum Width
9260 lb
Operating Weight
Ammann ARX 40-2 Light Tandem Vibratory Roller
Let's Get Started
"*" indicates required fields
Ammann ARX 40-2 Light Tandem Vibratory Roller Specs & Add-Ons
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Key Specifications
Smooth rolling The electronic drive lever provides advanced control and smooth starts and stops The adjustable articulation joint oscillates to ensure constant contact between the drums and the surface. A wide range of working widths and optional crab steering offer further productivity.
Compaction performance Multiple machine versions with varied weights ensure there is a perfect match for the application and jobsite. The sprinkling system features two-stage filtration to prevent clogging while working on asphalt. A large water tank extends intervals between fillings.
Operator platform The spacious environment gives the machine operator comfort to operate the machine. The safe design enables a focus on productivity that reduces the time and effort spent on a task.
Advanced operator station Intuitive machine control enhances the ease of operation. Advanced features help newcomers to become productive and high performing.
Low downtime Heavy-duty design of the machine frame and components reduces maintenance needs. Ownership costs are reduced by the service friendliness of the machine.
Reduced maintenance Tool-free daily inspection enables quick reviews of the machine. Easy-to-access service points enable safe maintenance.
ECOdrop ECOdrop lessens fuel consumption and reduces the carbon footprint. Long-lasting wear parts and easy service access lower ownership costs.
Advanced technologies Smart digitalization tools help manage the machine's life cycle and utilisation. The machine is ready for connectivity that promotes precise control over roller status and performance.
Performance
AMPLITUDE I 0.024 in
AMPLITUDE II 0.016 in
FREQUENCY I 2,460 vpm
FREQUENCY II 3,300 vpm
CENTRIFUGAL FORCE I 9,532 lbf
CENTRIFUGAL FORCE II 12,095 lbf
CENTRIFUGAL FORCE III 12,364 lbf
MAX. WORKING SPEED 6.2 MPH
GRADEABILITY WITHOUT VIBRATION 40%
GRADEABILITY WITH VIBRATION 30%
TURNING RADIUS (INNER) 107.1 in
DRUM OFFSET 1.6 in
BRAKES OPERATING Hydrostatic
BRAKES PARKING Multiple-disc spring brake
TYPE OF WATERING Pressure
STEERING ANGLE ±35°
OSCILLATION ANGLE ±9°
BATTERY VOLTAGE 12V
MANUFACTURER Kubota
ENGINE TYPE D1803-CR-T
ENGINE SPEED 2400 rpm
POWER OUTPUT ISO 14396 32,8 kW / 44 HP
EMISSION STAGE EPA Tier 4 Final
EXHAUST GAS AFTER-TREARTMENT EGR+DOC+DPF
Dimensions
OPERATING WEIGHT CECE 9,259 lb
OPERATING WEIGHT MAX 9,899 lb
STAT. LIN. LOAD AVG 94.6 lb/in
WATER TANK 89.8 gal
FUEL TANK 15.1 gal
HYDRAULIC TANK CAPACITY 14.1 gal
BATTERY CAPACITY 77 Ah
