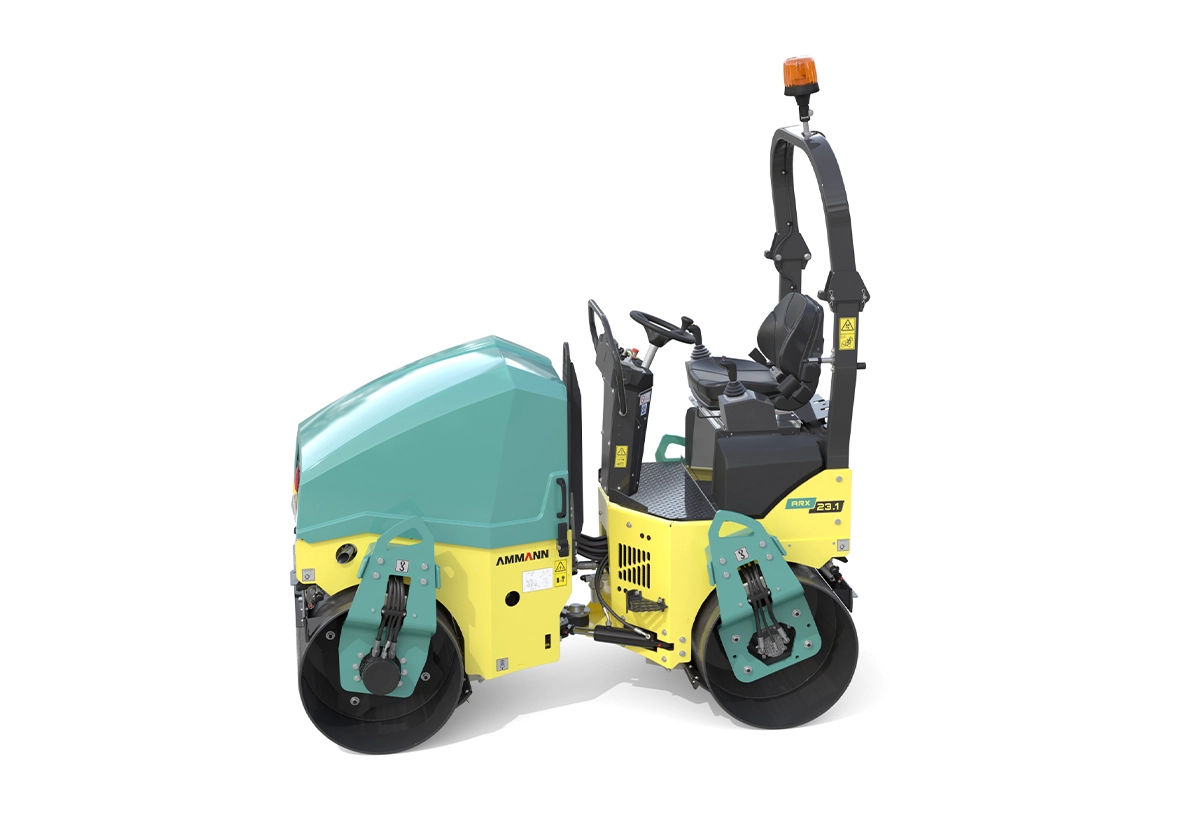

Ammann ARX 23.1-2 Light Tandem Vibratory Roller
This roller is a great fit for the rental market and contractors looking for a low-maintenance machine with an intuitive dashboard and controls. The roller features a maintenance-free articulation joint that enables quick drum adjustment from in-line to off-set configurations, helpful when working close to obstructions.
Tier 4f
Emission Stage
39.4 in
Drum Width
4982 lb
Operating Weight
Ammann ARX 23.1-2 Light Tandem Vibratory Roller
Let's Get Started
"*" indicates required fields
Ammann ARX 23.1-2 Light Tandem Vibratory Roller Specs & Add-Ons
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Key Specifications
Smooth rolling The electronic drive lever provides advanced control and smooth starts and stops The adjustable articulation joint oscillates to ensure constant contact between the drums and the surface. A wide range of working widths and optional crab steering offer further productivity.
Compaction performance Multiple machine versions with varied weights ensure there is a perfect match for the application and jobsite. The sprinkling system features two-stage filtration to prevent clogging while working on asphalt. A large water tank extends intervals between fillings.
Operator platform The spacious environment gives the machine operator comfort to operate the machine. The safe design enables a focus on productivity that reduces the time and effort spent on a task.
Advanced operator station Intuitive machine control enhances the ease of operation. Advanced features help newcomers to become productive and high performing.
Low downtime Heavy-duty design of the machine frame and components reduces maintenance needs. Ownership costs are reduced by the service friendliness of the machine.
Reduced maintenance Tool-free daily inspection enables quick reviews of the machine. Easy-to-access service points enable safe maintenance.
ECOdrop ECOdrop lessens fuel consumption and reduces the carbon footprint. Long-lasting wear parts and easy service access lower ownership costs.
Advanced technologies Smart digitalization tools help manage the machine's life cycle and utilisation. The machine is ready for connectivity that promotes precise control over roller status and performance.
Performance
AMPLITUDE I 0.020 in
AMPLITUDE II 0.020 in
FREQUENCY I 3,480 vpm
FREQUENCY II 3,960 vpm
CENTRIFUGAL FORCE I 6,744 lbf
CENTRIFUGAL FORCE II 7,868 lbf
MAX. WORKING SPEED 6.2 MPH
GRADEABILITY WITHOUT VIBRATION 30%
GRADEABILITY WITH VIBRATION 25%
TURNING RADIUS (INNER) 98.4 in
DRUM OFFSET 1.6 in
BRAKES OPERATING Hydrostatic
BRAKES PARKING Multiple-disc spring brake
TYPE OF WATERING Pressure
STEERING ANGLE ±30°
OSCILLATION ANGLE ±6.5°
BATTERY VOLTAGE 12V
MANUFACTURER Kubota
ENGINE TYPE D1703-M-DI
ENGINE SPEED 2100 / 2400 rpm
POWER OUTPUT ISO 14396 18,5 kW / 24,8 HP
EMISSION STAGE EPA Tier 4 Final
Dimensions
OPERATING WEIGHT CECE 4,982 lb
OPERATING WEIGHT MAX 5,501 lb
STAT. LIN. LOAD AVG 60.5 lb/in
WATER TANK 50.2 gal
FUEL TANK 9.2 gal
HYDRAULIC TANK CAPACITY 7.5 gal
BATTERY CAPACITY 77 Ah
