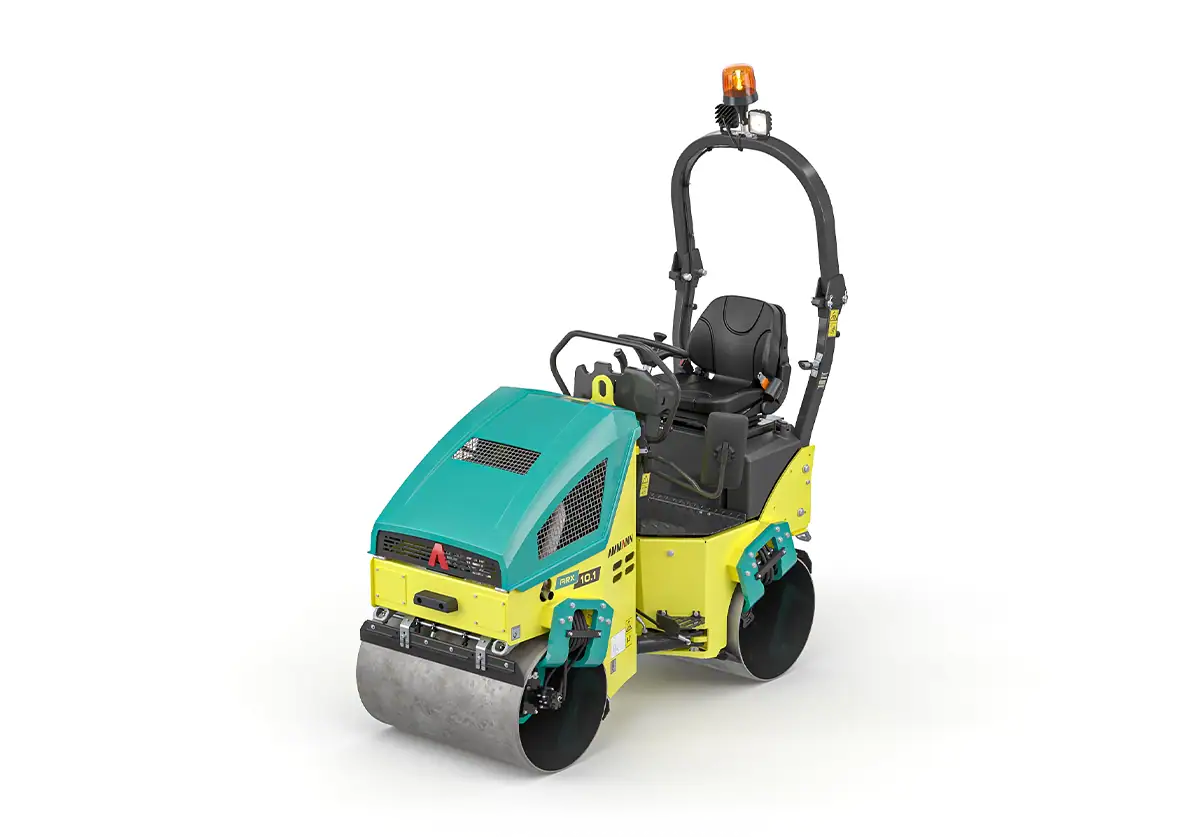

Ammann ARX 10.1 Light Tandem Vibratory Roller
Smart design that provides diverse benefits to enhance machine performance and overall productivity.
A single-stage vibratory system makes the machine an invaluable tool on the jobsite, delivering optimal compaction performance.
Phase III
Emission Stage
35.4 in
Drum Width
2866 lb
Operating Weight
Ammann ARX 10.1 Light Tandem Vibratory Roller Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications

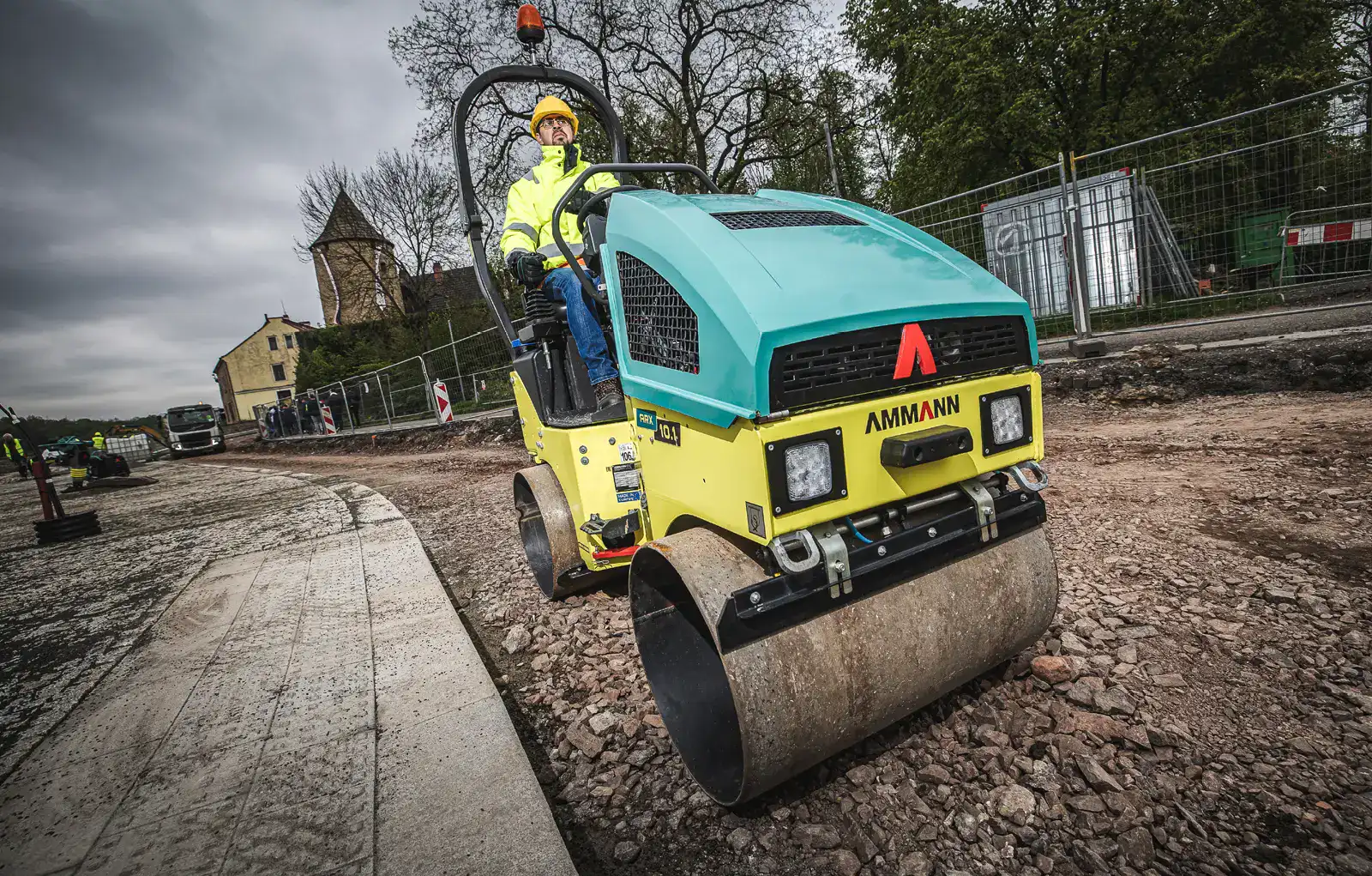

Smart design One-side suspended drums enable flush compaction work close to walls or curbs for increased productivity. An articulation joint with oscillation ensures great maneuverability and constant contact with the surface, key factors in achieving high-quality compaction.
Compaction performance The high compaction output ensures effective results on varied jobsites, helping the crew reach density targets in fewer passes. The sprinkling system, featuring a two-stage filtration to prevent clogging when working on asphalt, is complemented by a large water tank that extends intervals between fillings.

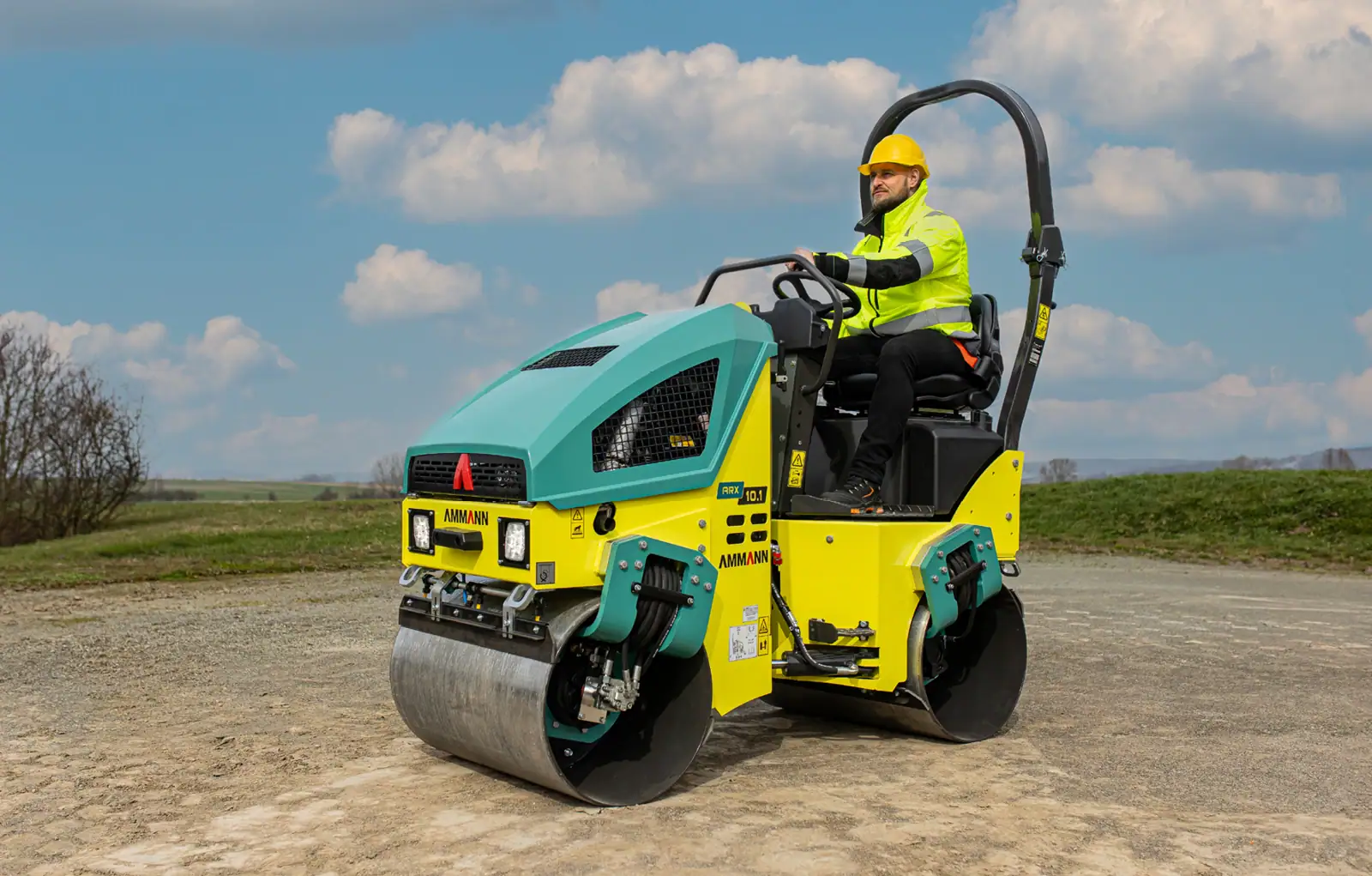

Platform The spacious environment provides comfort for the machine operator. The safe design enables a focus on productivity, reducing the time and effort spent on a task.
Operators place Intuitive machine control enhances the ease of operation. Advanced features help newcomers in becoming productive and high-performing.
Low downtime The heavy-duty design of the machine frame and components reduces maintenance requirements. The machine's service friendliness reduces ownership costs.

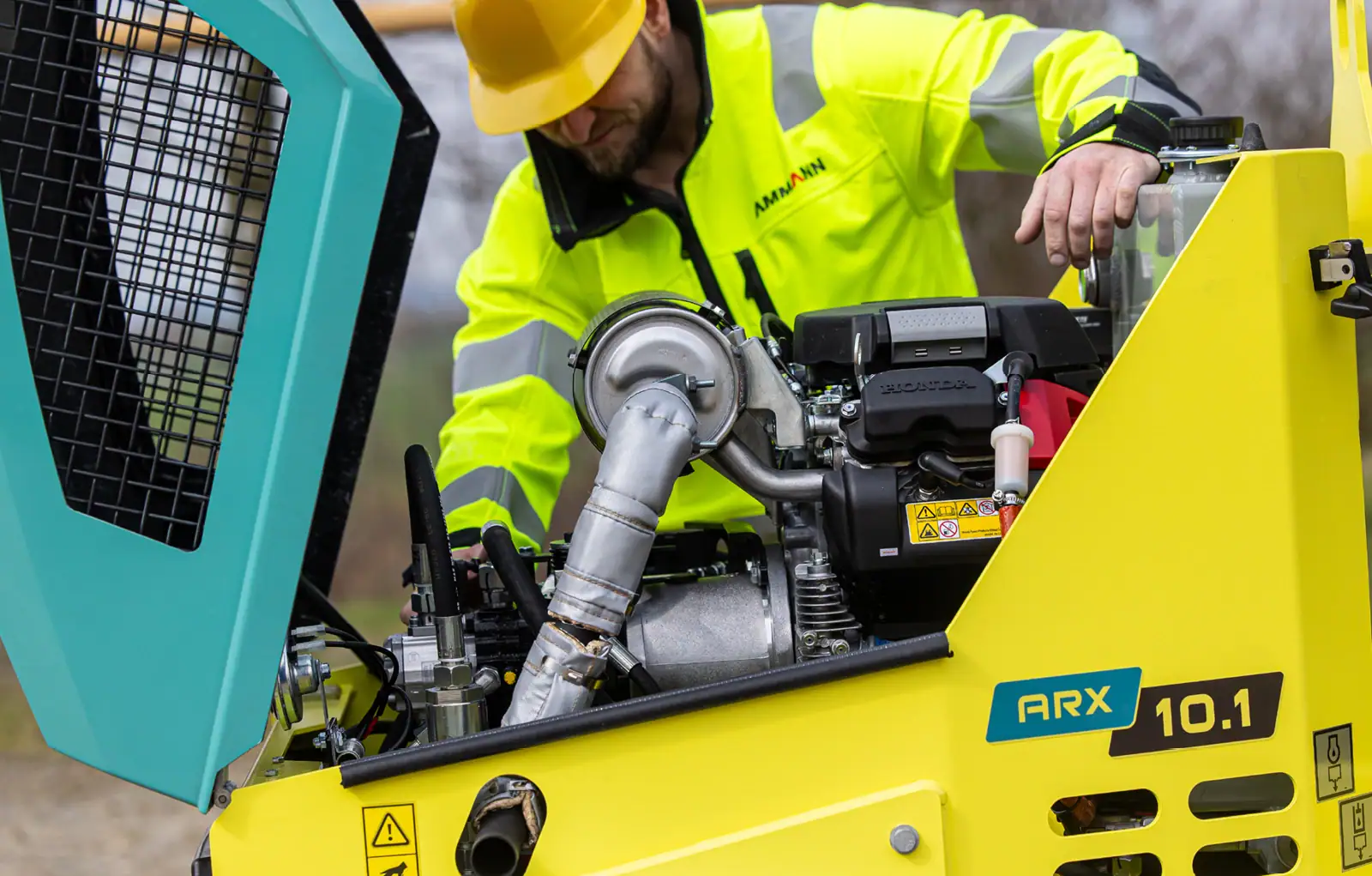

Reduced maintenance Tool-free daily inspection enables quick reviews of the machine. Easy-to-access service points enable safe maintenance.
ECODrop ECOdrop reduces fuel consumption and lessens the carbon footprint. Long-lasting wear parts and easy service access lower ownership costs.
Advanced technologies Smart digitalization tools help manage the machine's life cycle and utilisation. The machine is connectivity-ready, capable of accessing tools for precision and performance.
Performance
AMPLITUDE 0.02 in
FREQUENCY 4560 VPM
CENTRIFUGAL FORCE 687 lbf
TURNING RADIUS INSIDE 97,2 in
STEERING / OSCILLATING ANGLE 33/5 ±°
ENGINE TYPE Honda GX630
EMISSION CLASS U.S. EPA Phase III / EU Stage V
POWER OUTPUT ISO 3046 21 HP (15.5 kW)
1 WORKING SPEED @ 3300 rpm
TRAVEL SPEED 4,9 MPH (7.9 km/h)
GRADEABILITY WITH / WITHOUT VIBR. 30 % / 30 %
Dimensions
OPERATING WEIGHT CECE 2866 Ib
OPERATING WEIGHT MAX 3082 Ib
STAT. LIN. LOAD AVG 7.2 Ib/in
BATTERY / CAPACITY 12/50 V/Ah
WATER TANK 29.1 gal
FUEL TANK 7.1 gal
