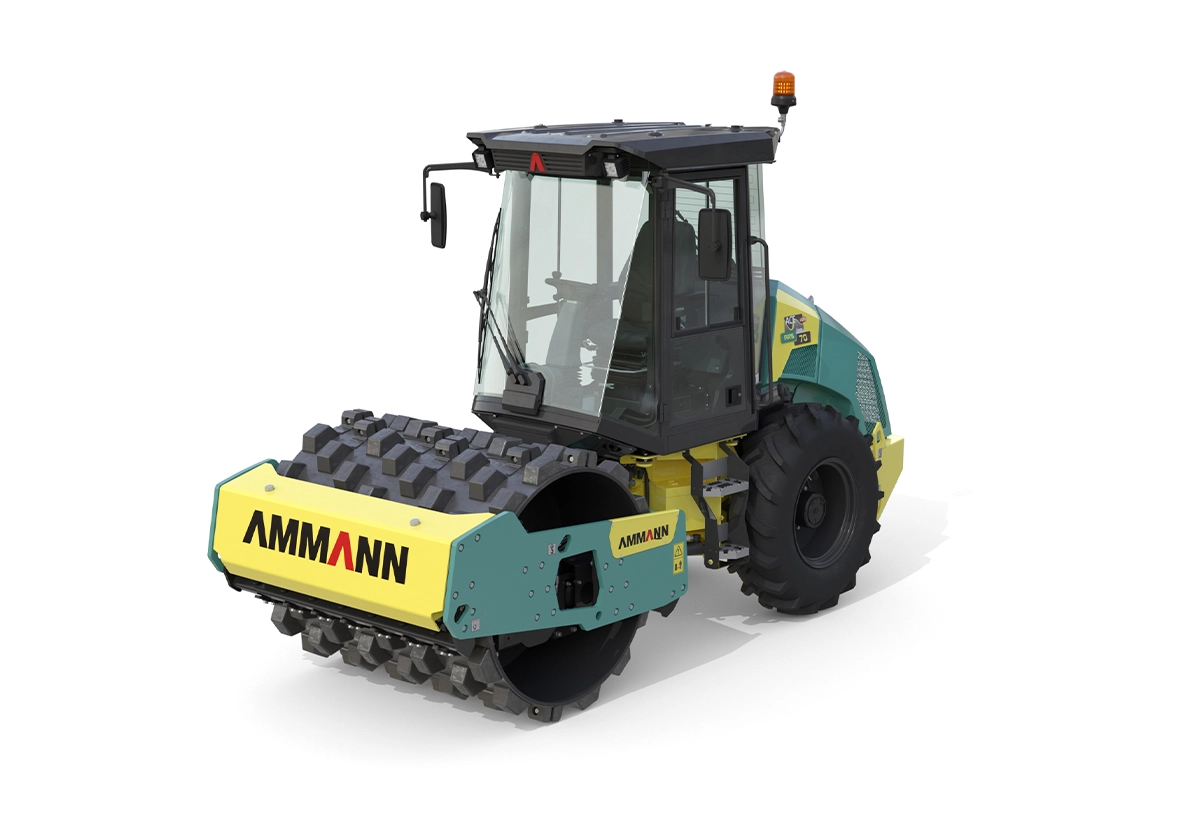

Ammann ARS 70 PD Single Drum Rollers
The medium-sized roller is one of the most manoeuvrable machines on the market. It is 16% shorter than the previous generation and features a tight turning radius of 2580 mm.
Tier 4f
Emission Stage
66.1 in
Drum Width
15230 lb
Operating Weight
Ammann ARS 70 PD Single Drum Rollers Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
No rear axle The compact design provides a low centre of gravity that delivers versatility by enabling traction, stability, manoeuvrability – and, ultimately, jobsite safety.
Variable compaction output Performance control enables fast, precise compaction that helps crews meet goals in the fewest passes possible. Varied drum options offer further performance, precision and productivity.
Platform and cab The spacious operating environment provides comfort that enhances productivity and safety. The operator is able to fully focus on compaction, thereby reaching goals more quickly.

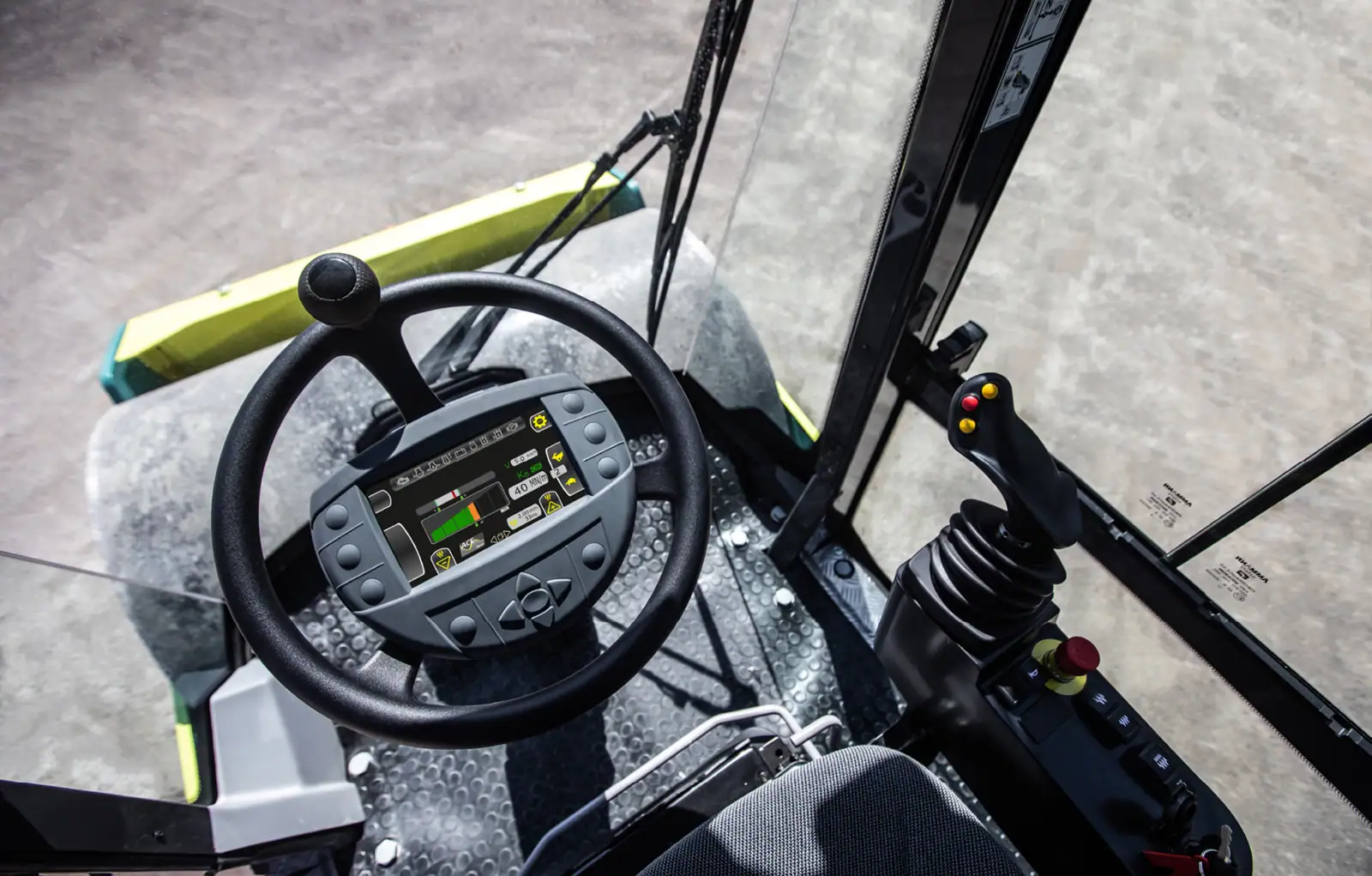

Operator station Intuitive machine control supports ease of operation. Advanced features ensure even newcomers are productive, high performers.
Low downtime The heavy-duty design of the frame and components extends machine life. Service-friendly features further reduce ownership costs.

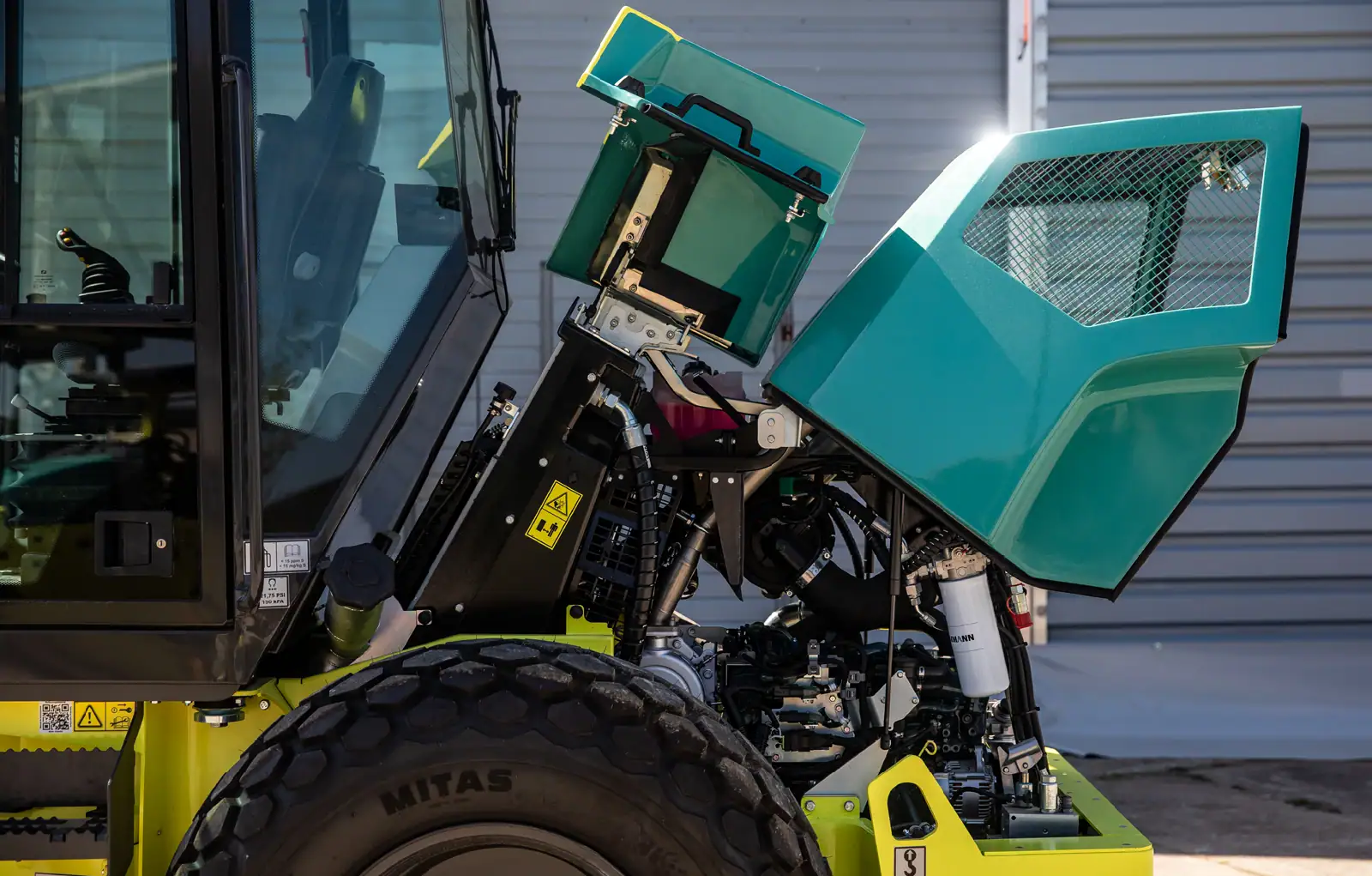

Reduced maintenance Tool-free daily inspections and safe, accessible maintenance points improve machine readiness and extend life.
ECOdrop ECOdrop reduces fuel consumption, thereby shrinking the carbon footprint and lowering ownership costs. Sustainable cost-saving measures include extended service intervals, durable wear parts, and easy access to all maintenance points.
Advanced technologies Smart digitalization tools help manage the machine's life cycle and utilization. The machine is connectivity-ready and can access tools for precision and performance.
Performance
Frequency I 25–34 Hz (1500–2040 vpm)
Frequency II 25–36 Hz (1500–2160 vpm)
Amplitude I 1,6 mm (0,06 in)
Amplitude II 0.7 mm (0.028 in)
Centrifugal force I 71–131 kN (15,961–29,450 lbf)
Centrifugal force II 31–64 kN (6969–14,388 lbf)
Parking brakes Multiple-disc spring brake
Emergency brakes Multiple-disc spring brake
Fuel tank capacity 130 l (34.34 gal)
Articulation angle ±30°
Oscillation angle ±9°
Manufacturer Kubota V3307-CR-TE5
Power output ISO 14396 55.4 kW (75 HP)
Exhaust gas after-treatment EGR+DOC+DPF
Dimensions
Machine length 4425 mm (174.4 in)
Machine length (blade) 4985 mm (196.3 in)
Wheelbase 2300 mm (90.6 in)
Machine height 2860 mm (112.6 in)
Drum width 1680 mm (66.1 in)
Machine width 1790 mm (70.5 in)
Machine width (blade) 2077 mm (81.8 in)
Curb clearance 382 mm (15 in)
Ground clearance 380 mm (15 in)
Drum diameter 1225 mm (48.2 in) /*1377 mm (54.2 in)
Drum thickness 18 mm (0.7 in) /*15 mm (0.6 in)
Static linear load 23.2 kg/cm (129.9 lb/in)
Max. travel speed 12 km/h (7.5 MPH)
Max. working speed 6 km/h (3.7 MPH)
Gradeability without /with vibration 52% / 48%
Turning radius, inner (edge) 2580 mm (101.6 in)
