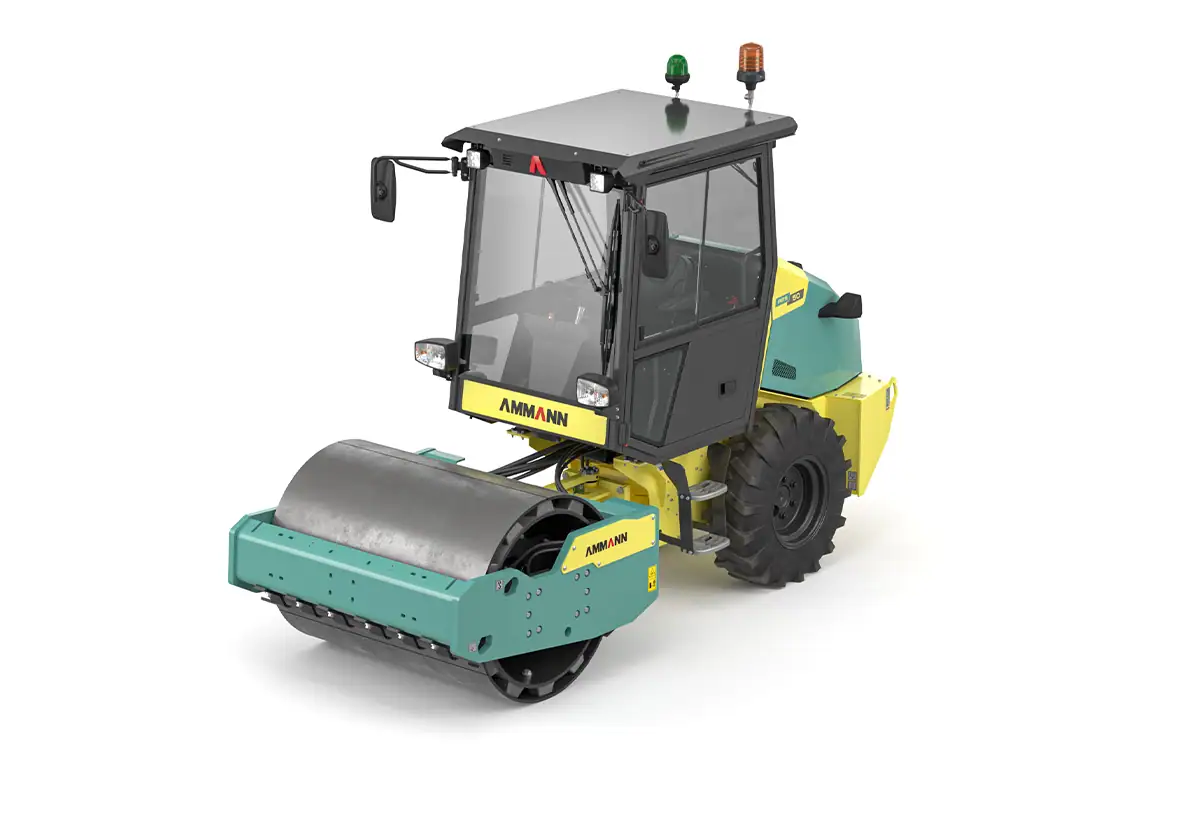

Ammann ARS 50 Single Drum Rollers
The rollers utilize advanced technology, innovative engineering and robust engines with the latest emission standards. A combination of a well-balanced engine, fully hydrostatic drive system and control deliver exceptional fuel consumption
Tier 4f
Emission Stage
55.1 in
Drum Width
9182 lb
Operating Weight
Ammann ARS 50 Single Drum Rollers
Let's Get Started
"*" indicates required fields
Ammann ARS 50 Single Drum Rollers Specs & Add-Ons
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Key Specifications
No rear axle The unique, compact design offers versatility, traction, stability, maneuverability, and safety.
Compaction output Performance control enables fast, precise compaction that helps crews meet goals in the fewest passes possible. Varied drum options offer further performance, precision and productivity.
Platform and cab The spacious operating environment provides comfort that enhances productivity and safety. The operator is able to fully focus on compaction, thereby reaching goals more quickly.
Operator station Intuitive machine control supports ease of operation. Advanced features ensure even newcomers are productive, high performers.
Reduced downtime The heavy-duty design of the frame and components extends machine life. Service-friendly features further reduce ownership costs.
Reduced maintenance The articulation joint and vibratory unit consist of maintenance-free parts. Fast, simple maintenance improves readiness and extends machine life.
ECOdrop ECOdrop reduces fuel consumption, thereby shrinking the carbon footprint and lowering ownership costs. Sustainable cost-saving measures include extended service intervals, durable wear parts, and easy access to all maintenance points.
Digitalization The machine is ready for the connectivity that allows precise control over status and performance. Connectivity helps monitor the machine life cycle and utilization. It also advances planning.
Performance
Frequency I 29 Hz (1740 vpm)
Frequency II 37 Hz (2280 vpm)
Amplitude 1,6 mm (0,06 in)
Centrifugal force I 53 kN (11 915 lbf)
Centrifugal force II 85 kN (19 109 lbf)
Parking brakes Multiple-disc spring brake
Emergency brakes Multiple-disc spring brake
Fuel tank capacity 98 l (25.9 gal}
Articulation angle ±30°
Oscillation angle ±10°
Manufacturer Kubota V2403-CR-T
Power output ISO 14396 43.2 kW (58 HP)
Exhaust gas after-treatment EGR+DOC+DPF
Dimensions
Machine length 3925 mm (154,5 in)
Machine length (blade) 4330 mm (170,5 in)
Wheelbase 2125 mm (83,7 in)
Machine height 2545 mm (100,2 in)
Drum width 1400 mm (55,1 in)
Machine width 1548 mm (60,9 in)
Machine width (blade) 1726 mm (68 in)
Curb clearance 240 mm (9,4 in)
Ground clearance 345 mm (13,6 in)
Drum diameter 1000 mm (39,4 in) / *1030 mm (40,6 in)
Drum thickness 18 mm (0,7 in)
Static linear load 16,5 kg/cm (92,4 lb/in)
Max. travel speed 12 km/h (7,5 MPH)
Max. working speed 9,5 km/h (5,9 MPH)
Gradeability without /with vibration 40% / 30%
Turning radius, inner (edge) 3270 mm (128,7 in)
