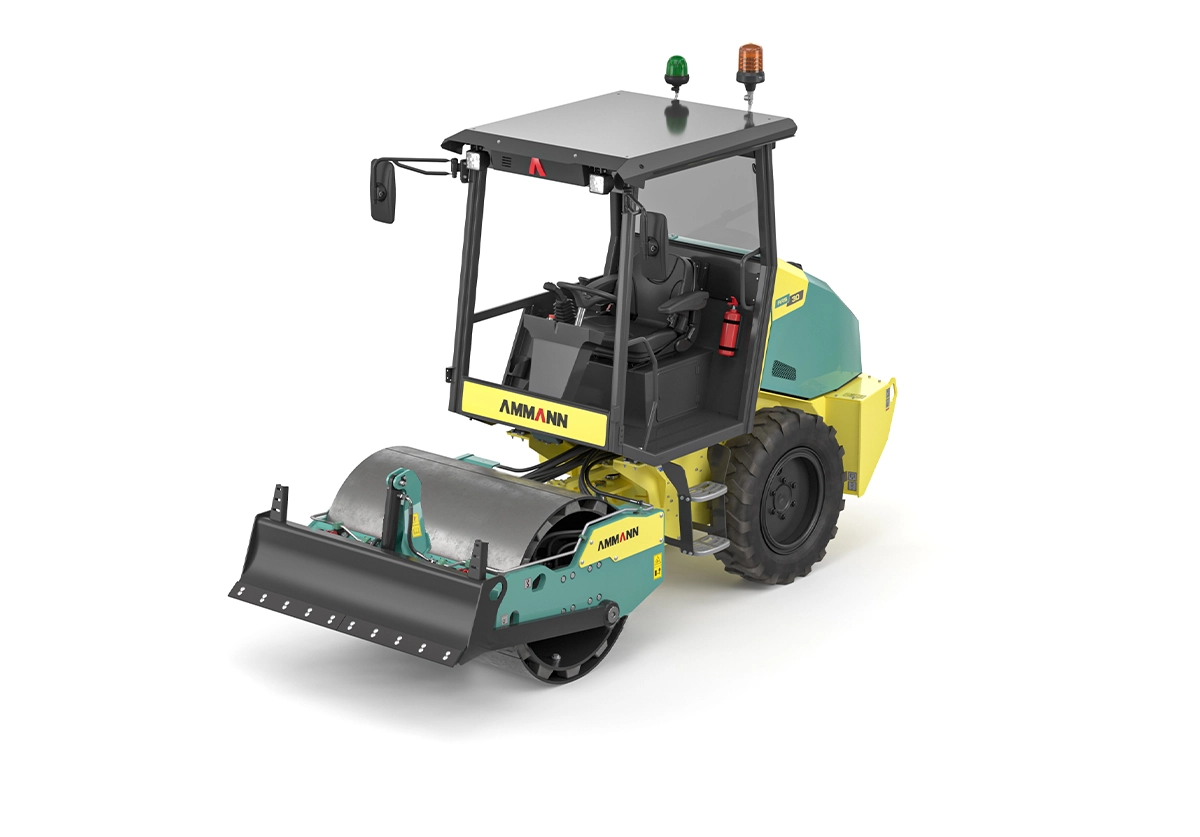

Ammann ARS 30 Single Drum Rollers
The rollers utilise advanced technology, innovative engineering and robust engines with the latest emission standards. A combination of a well-balanced engine, fully hydrostatic drive system and control deliver exceptional fuel consumption.
Tier 4f
Emission Stage
47.2 in
Drum Width
7670 lb
Operating Weight
Ammann ARS 30 Single Drum Rollers Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
No rear axle The unique, compact design offers versatility, traction, stability, maneuverability, and safety.
Compaction output Performance control enables fast, precise compaction that helps crews meet goals in the fewest passes possible. Varied drum options offer further performance, precision and productivity.
Platform and cab The spacious operating environment provides comfort that enhances productivity and safety. The operator is able to fully focus on compaction, thereby reaching goals more quickly.
Operator station Intuitive machine control supports ease of operation. Advanced features ensure even newcomers are productive, high performers.
Reduced downtime The heavy-duty design of the frame and components extends machine life. Service-friendly features further reduce ownership costs.
Reduced maintenance The articulation joint and vibratory unit consist of maintenance-free parts. Fast, simple maintenance improves readiness and extends machine life.
ECOdrop ECOdrop reduces fuel consumption, thereby shrinking the carbon footprint and lowering ownership costs. Sustainable cost-saving measures include extended service intervals, durable wear parts, and easy access to all maintenance points.
Digitalization The machine is ready for the connectivity that allows precise control over status and performance. Connectivity helps monitor the machine life cycle and utilization. It also advances planning.
Performance
Frequency I 29 Hz (1740 vpm)
Frequency II 38 Hz (2280 vpm)
Amplitude 1,6 mm (0,06 in)
Centrifugal force I 37 kN (8318 lbf)
Centrifugal force II 68 kN (15 287 lbf)
Parking brakes Multiple-disc spring brake
Emergency brakes Multiple-disc spring brake
Fuel tank capacity 98 l (25.9 gal}
Articulation angle ±30°
Oscillation angle ±10°
Manufacturer Kubota V2403-CR-T
Power output ISO 14396 43.2 kW (58 HP)
Exhaust gas after-treatment EGR+DOC+DPF
Dimensions
Machine length 3529 mm (138,9 in)
Machine length (blade) 3941 mm (155,2 in)
Wheelbase 1830 mm (72 in)
Machine height 2556 mm (100,6 in)
Drum width 1200 mm (47,2 in)
Machine width 1338 mm (52,7 in}
Machine width (blade) 1516 mm (59,7 in)
Curb clearance 236 mm (9,3 in)
Ground clearance 322 mm (12,7 in)
Drum diameter 930 mm (36,6 in) / *960 mm (37,8 in)
Drum thickness 15 mm (0,6 in)
Static linear load 13,96 kg/cm (78,2 lb/in)
Max. travel speed 12 km/h (7,5 MPH)
Max. working speed 9,5 km/h (5,9 MPH)
Gradeability without /with vibration 40% / 30%
Turning radius, inner (edge) 2800 mm (110,2 in)
