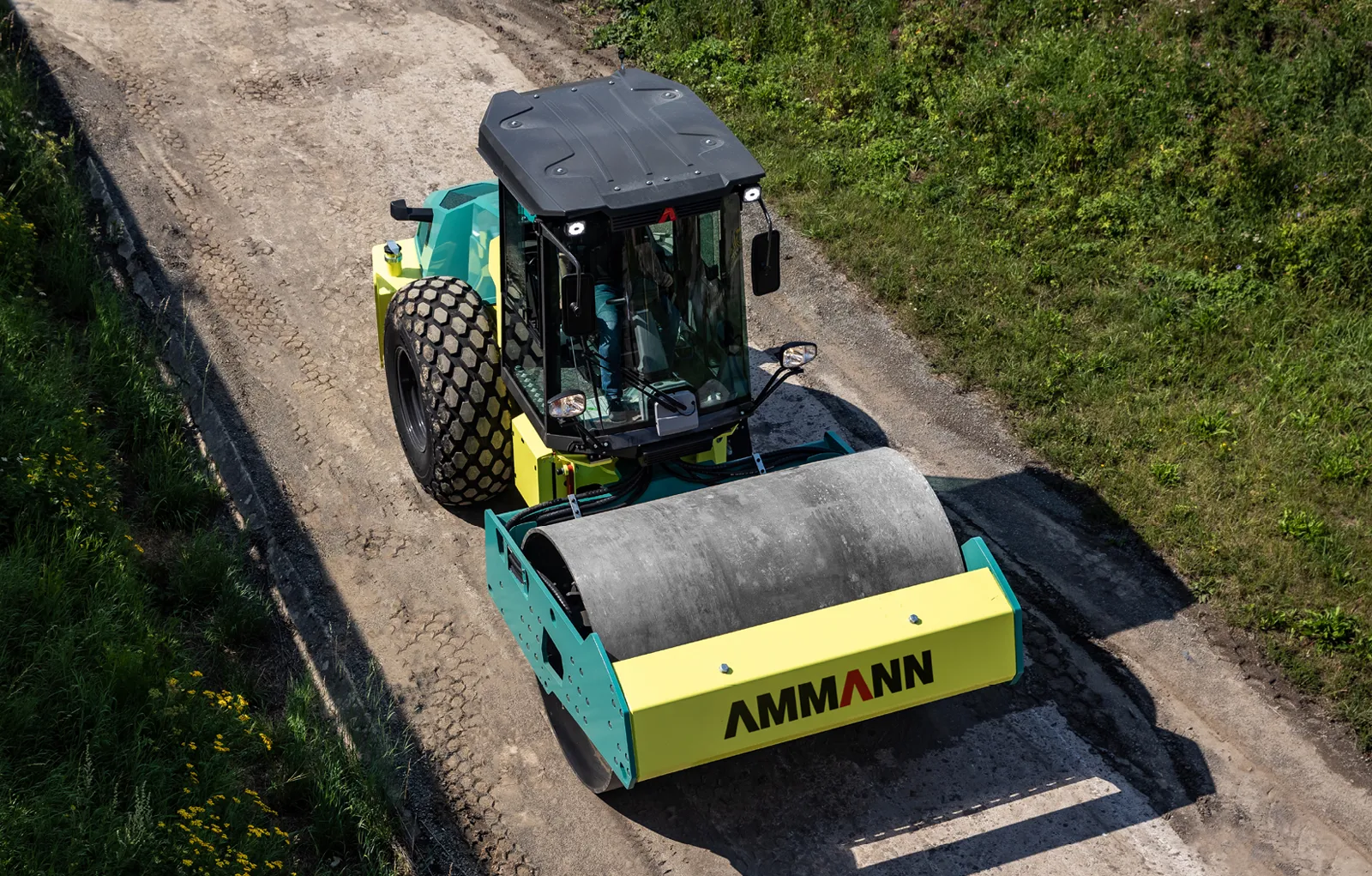

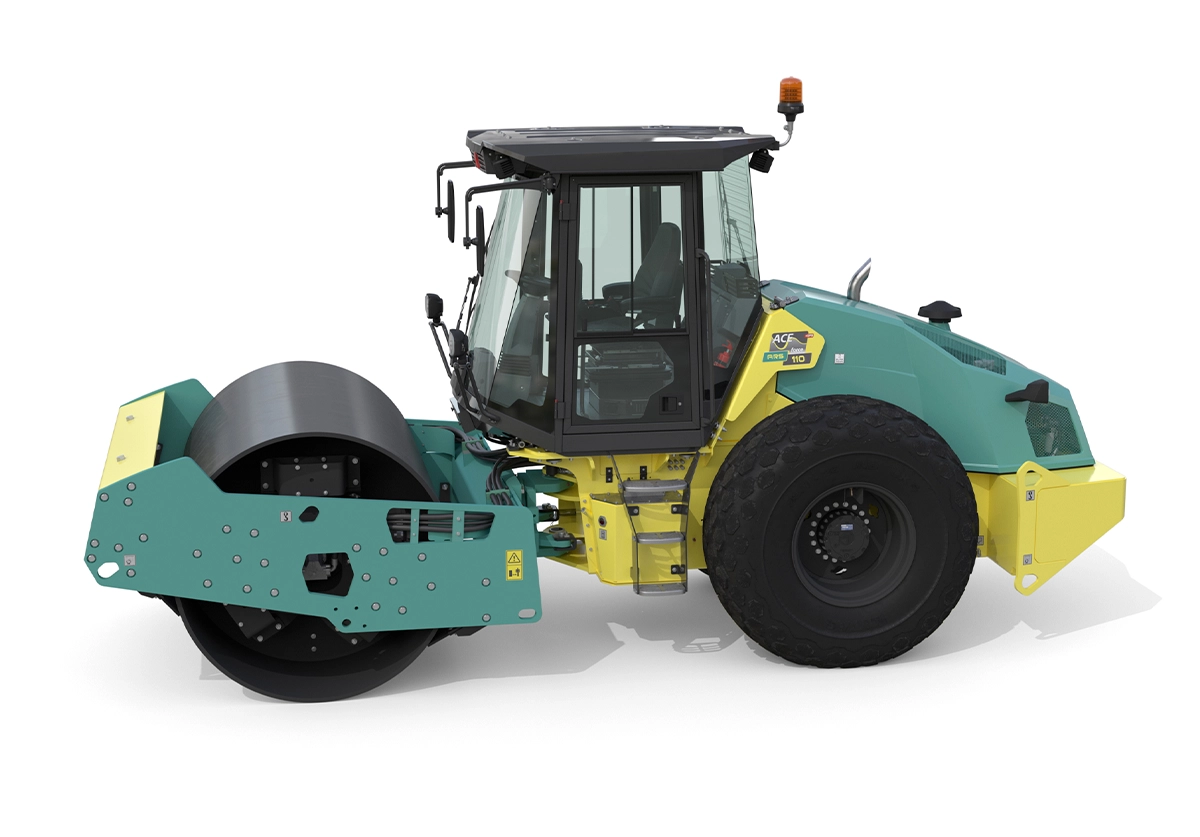

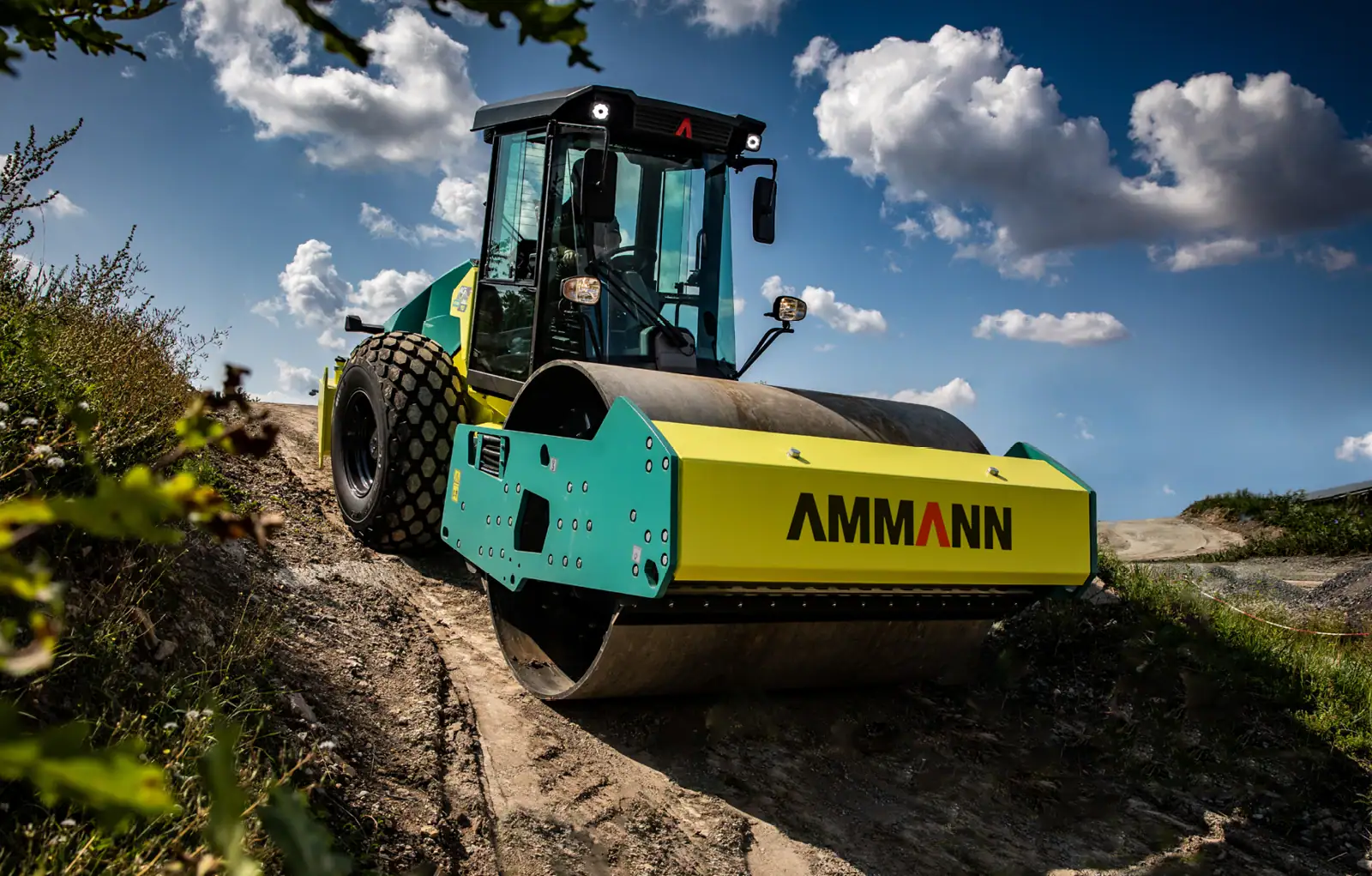

Ammann ARS 110 Single Drum Rollers

The compact design improves manoeuvrability and flexibility, making the machines exceptionally productive. Safety is maximised through a cab that provides operators with 360° visibility and an intuitive, conveniently located control display.

Tier 4f

Emission Stage

83.9 in

Drum Width

23940 lb

Operating Weight

Ammann ARS 110 Single Drum Rollers

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Ammann ARS 110 Single Drum Rollers Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

No rear axle The compact design provides a low centre of gravity that delivers versatility by enabling traction, stability, manoeuvrability – and, ultimately, jobsite safety.

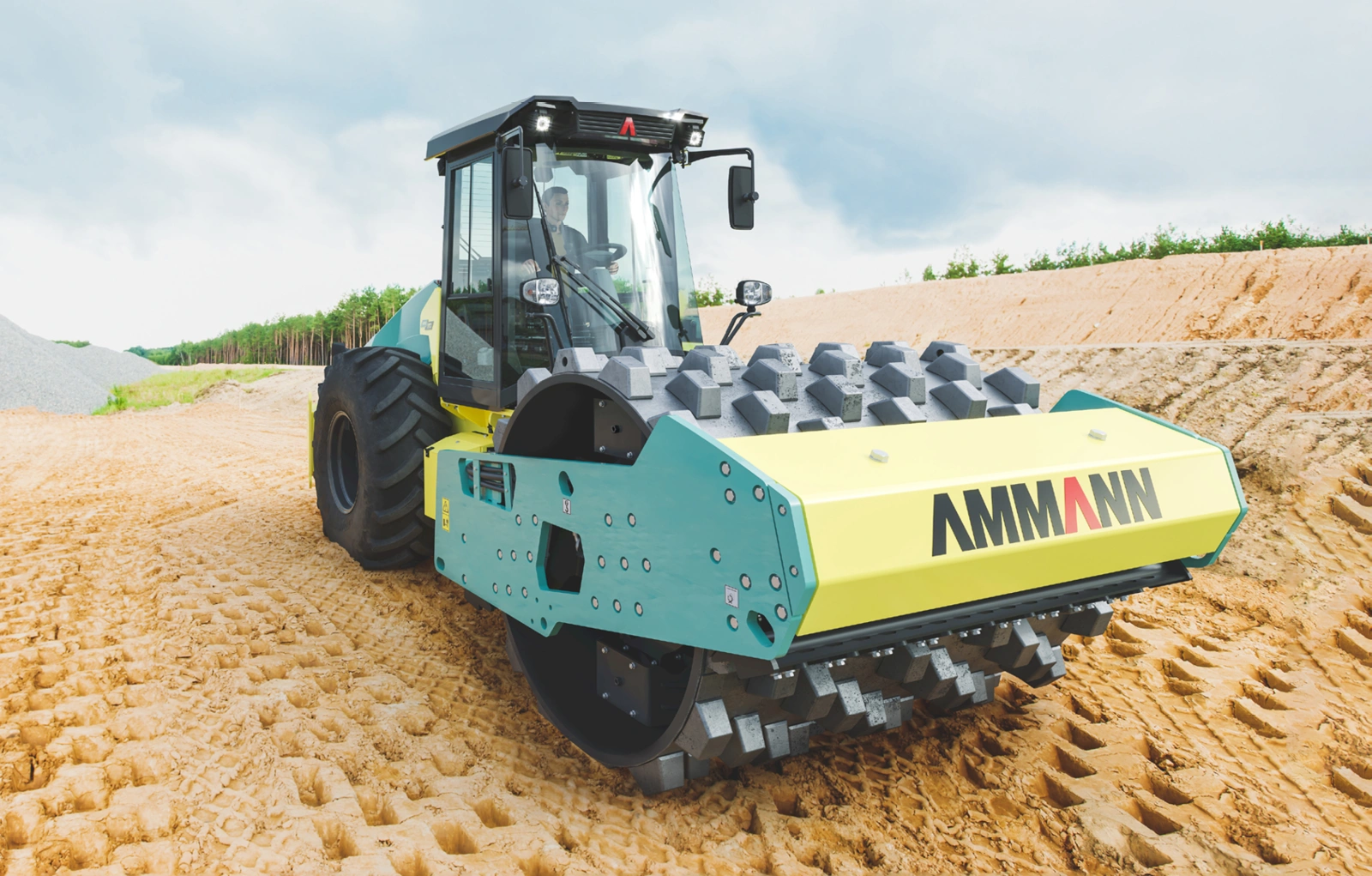

Variable compaction output Performance control enables fast, precise compaction that helps crews meet goals in the fewest passes possible. Varied drum options offer further performance, precision and productivity.
Platform and cab The spacious operating environment provides comfort that enhances productivity and safety. The operator is able to fully focus on compaction, thereby reaching goals more quickly.
Operator station Intuitive machine control supports ease of operation. Advanced features ensure even newcomers are productive, high performers.
Low downtime The heavy-duty design of the frame and components extends machine life. Service-friendly features further reduce ownership costs.
Reduced maintenance Tool-free daily inspections and safe, accessible maintenance points improve machine readiness and extend life.
ECOdrop ECOdrop reduces fuel consumption, thereby shrinking the carbon footprint and lowering ownership costs. Sustainable cost-saving measures include extended service intervals, durable wear parts, and easy access to all maintenance points.
Advanced technologies Smart digitalization tools help manage the machine's life cycle and utilization. The machine is connectivity-ready and can access tools for precision and performance.

Performance

Frequency I 25–31 Hz (1500–1860 vpm)
Frequency II 25–35 Hz (1500–2100 vpm)
Amplitude I 1.95 mm (0.077 in)
Amplitude II 0.83 mm (0.033 in)
Centrifugal force I 186–285 kN (41,814–64,071 lbf)
Centrifugal force II 79–155 kN (17,759–34,845 lbf)
Brakes operating Hydrostatic
Parking brakes Multiple-disc spring brake
Emergency brakes Multiple-disc spring brake
Fuel tank capacity 345 l (91.1 gal)
Articulation angle ±36°
Oscillation angle ±10°
Manufacturer Deutz TCD 3.6L4
Power output ISO 14396 100 kW (134 HP)
Exhaust gas after-treatment EGR+DOC+DPF

Dimensions

Machine length 5900 mm (232.3 in)
Machine length (blade) 6610 mm (260 in)
Wheelbase 2990 mm (117.7 in)
Machine height 2970 mm (116.9 in)
Drum width 2130 mm (83.9 in)
Machine width 2260 mm (89 in)
Machine width (blade) 2440 mm (96 in)
Curb clearance 382 mm (15 in)
Ground clearance 430 mm (16.9 in)
Drum diameter 1500 mm (59.1 in) /*1694 mm (66.7 in)
Drum thickness 25 mm (1 in) /*20 mm (0.8 in)
Operating weight CECE 10 860 kg (23,940 lb)
Max. operating weight 14 630 kg (32,250 lb)
Static linear load 30.3 kg/cm (169.6 lb/in)
Max. travel speed 12 km/h (7.5 MPH)
Max. working speed 7.6 km/h (4.7 MPH)
Gradeability without /with vibration 52% / 50%
Turning radius, inner (edge) 3625 mm (142.7 in)
