Bobcat Box Blade – 3PT Attachment

Get Quote
Browse Specs and more for the Bobcat Box Blade – 3PT Attachment - Bobcat of Atlanta

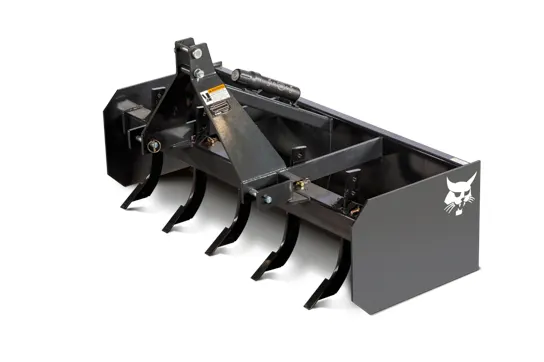

Bobcat Box Blade – 3PT Attachment

  • The heavy-duty, rear-mount box blade offers versatility for leveling, backfilling, grading and moving a variety of material
  • Heavy-duty, rear-mount cutting edges are strong enough to retain gravel, topsoil or other material
  • Adjustable and replaceable ripper shanks break up hard ground or compacted soil for easier moving
  • Steel cutting blade edges are reversible and replaceable to increase the life of your implement

Compatible With:

Compact Tractors - CT2025 HST, CT2025 MST, CT2035 HST, CT2035 MST, CT2040 HST, CT2040 MST, CT2535, CT2540, CT4045 HST, CT4045 SST, CT4050 HST, CT4050 SST, CT4055 SST, CT4058 HST, CT4545 HST, CT4558 HST, CT5545 HST, CT5550 HST, CT5555 HST, CT5558 HST

Sub-Compact Tractors - CT1021 HST, CT1025 HSTD

Toolcat Utility Work Machines - UW53

Utility Tractors - UT6066, UT6566, UT6573

Get Quote

How The Bobcat Box Blade – 3PT Attachment Works

The box blade implement does not require PTO. Simply attach it to the 3-point hitch and get started. The implement can be raised or lowered to control the height of the cutting edge. Lower the cutting edge to cut, and raise it to dump the material.

Bobcat Box Blade – 3PT Attachment Specs

Length 28 in - 32 in
Model Name (Public) 48" 3PT Box Blade - 96" 3PT Box Blade
Operating Weight 270 lbs - 587 lbs
Width 49.5 in - 97.5 in
Hitch Type Category 1
Height 32 in - 34 in
Number of Shanks 4 - 7
Shank Penetration 1" - 4"
Shank Size .75 x 2.50 x 16
Max. Engine HP Rating 26 hp - 60 hp
Cutting Edge .375 X 6
Number of Blades 2 - 5

Bobcat Box Blade – 3PT Attachment Features

Four-Hole Ripper Shanks

The heavy-duty ripper shanks adjust up or down to vary the cutting depth for mixing loose soil or tearing through compacted soil or rocks.

Replaceable Ripper Shanks

The ripper shanks can be replaced to extend the life of your box blade implement.

Front and Back Blades

Cutting edges on the back and front allow you to work in forward or reverse to get more done in less time.

Reversible & Replaceable Steel Cutting Edges

Flip the blade over to get a fresh cut, then replace it to extend the life of your implement.

Three Widths

The box blade is available in widths of 48 inches, 60 inches and 72 inches.

Category 1, 3-Point Hitch

A 3-point hitch is used to attach your rear-mounted box blade implement. An adjustable top link is centered above two lower link arms, comprising the three points. The box blade implement quickly and easily attaches with connecting pins at each point.

Corrosion-Resistant Powder-Coat Finish

The box blade features a durable, corrosion-resistant power-coat finish that protects the implement for extra-long life in the elements.
